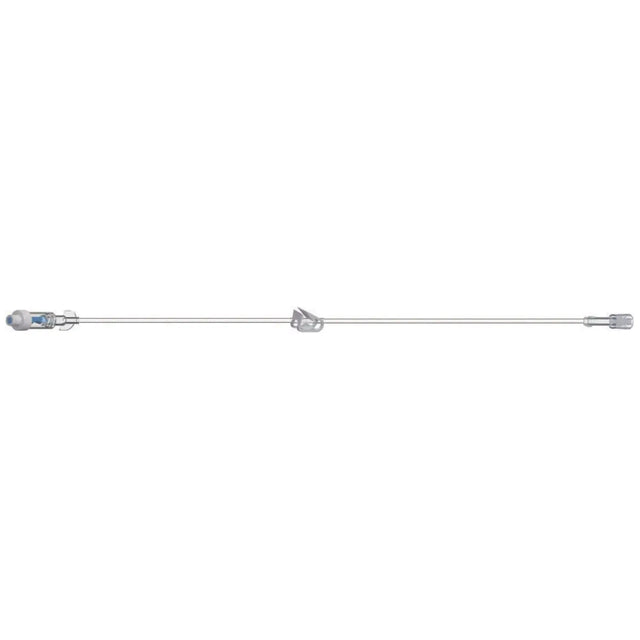

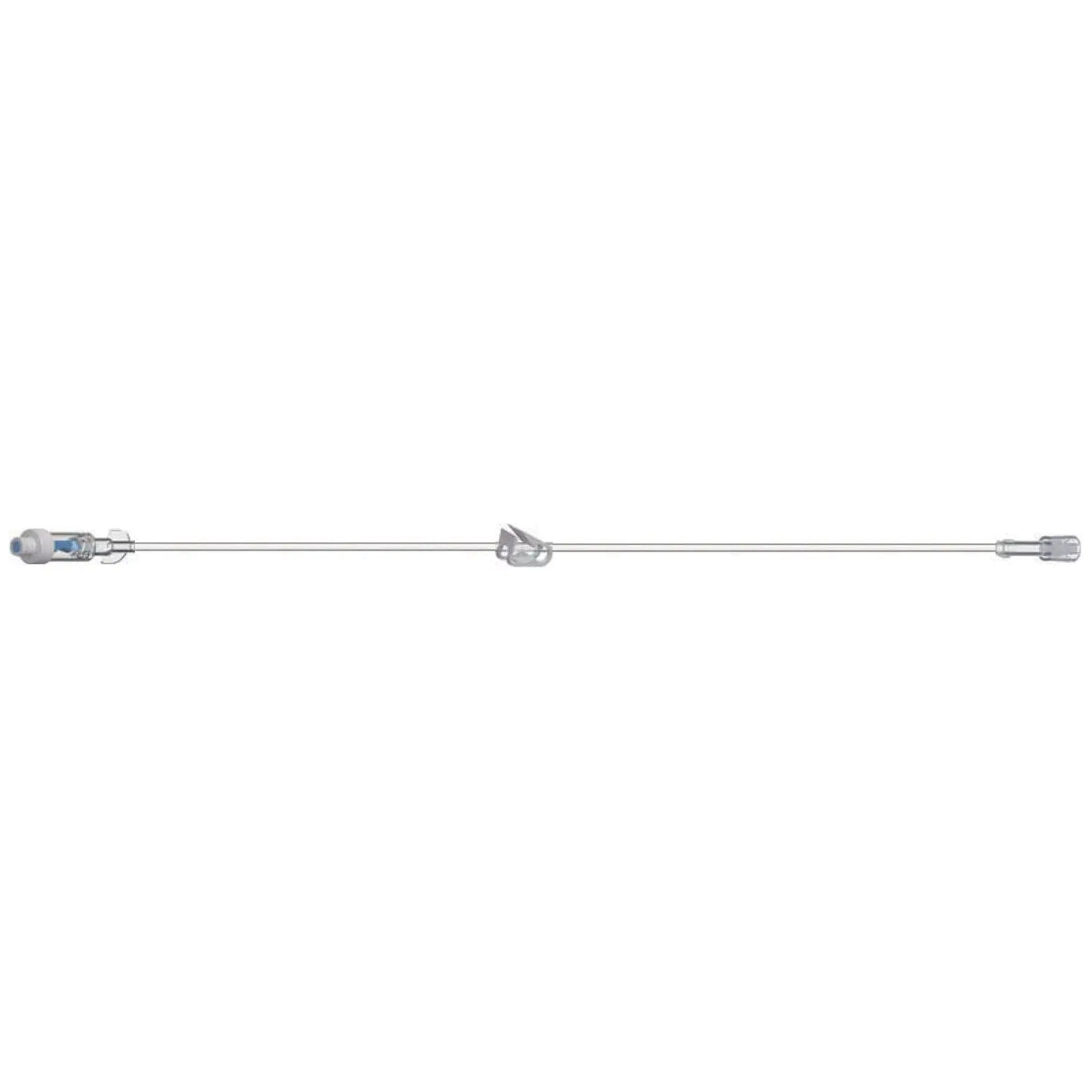

AMSINO Standard Bore IV Extension Set, 8" Length, 1.2 mL Priming, 1 AMSafe Needle-Free Connector, Roberts Clamp, Rotating Male Luer Lock, PE Poly Pouch, 100/cs

• AMSINO
• Model: AE3108
• Materials & Safety: DEHP-free, latex-free, sterile, nonpyrogenic.
• Priming Volume: 1.2 mL (i.e. the internal fluid capacity of the extension tubing)
• Connector / Access Feature: AMSafe® needle‑free connector (the injection port)
• Clamp: Roberts clamp (on/off clamp)
• Distal Interface: Rotating male Luer lock

The Amsino Standard Bore IV Extension Set (8‑inch, 1.2 mL priming) is engineered as a compact, sterile extension line to provide additional reach between a patient’s access site (e.g. catheter, cannula) and downstream devices (infusion pumps, IV lines) without significantly increasing dead space. The standard bore tubing (as opposed to microbore) offers sufficient internal diameter to support common infusion rates without excessive pressure drop, yet keeps the extension short and responsive. Its modest priming volume of 1.2 mL ensures that only a small extra volume of fluid is required to prime the line and displace air before connecting to the patient.

One of the key usability features is the AMSafe needle‑free connector, which allows medication injection or line access without the use of sharps, supporting safer handling in clinical settings. The Roberts clamp serves as an on/off clamp, giving quick positive occlusion when needed (for instance, during IV line preparation or disconnection). At the distal end is a rotating male Luer lock, which ensures a secure connection while allowing the tubing to spin freely relative to the connector body — reducing torque and stress on the line during manipulation or repositioning.

From a materials and clinical safety standpoint, the set is made to modern standards. It is DEHP-free and latex-free, minimizing risks of leachable plasticizers or allergenic compounds. Being provided sterile and nonpyrogenic helps reduce the risk of contamination or inflammatory reactions when placed in the infusion circuit. Because of its short length and modest priming volume, this extension set is ideal in many infusion or IV therapy environments where minimal extra fluid load is important, yet extra flexibility and reach are needed for connecting devices or accommodating movements.
