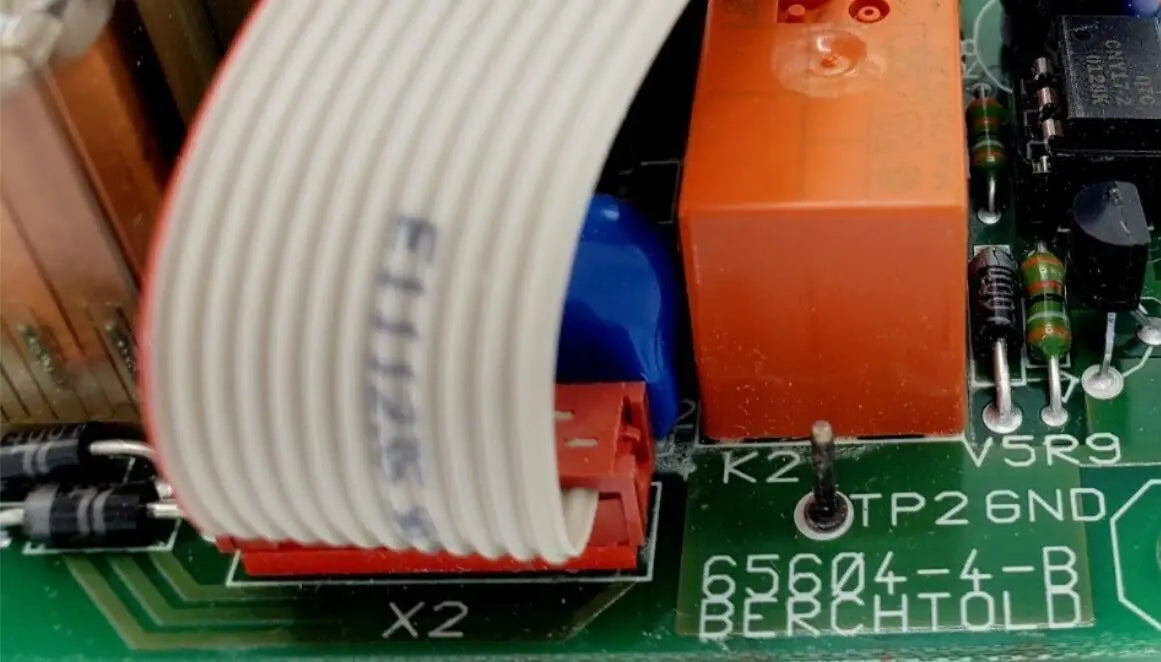

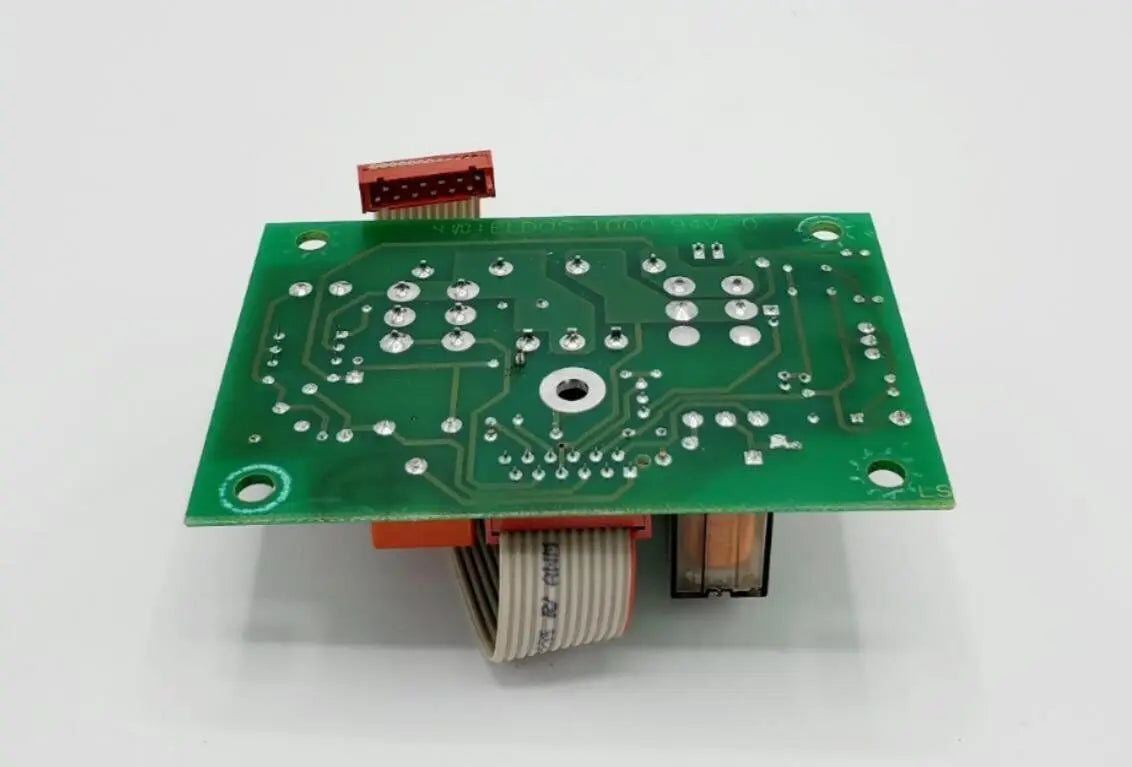

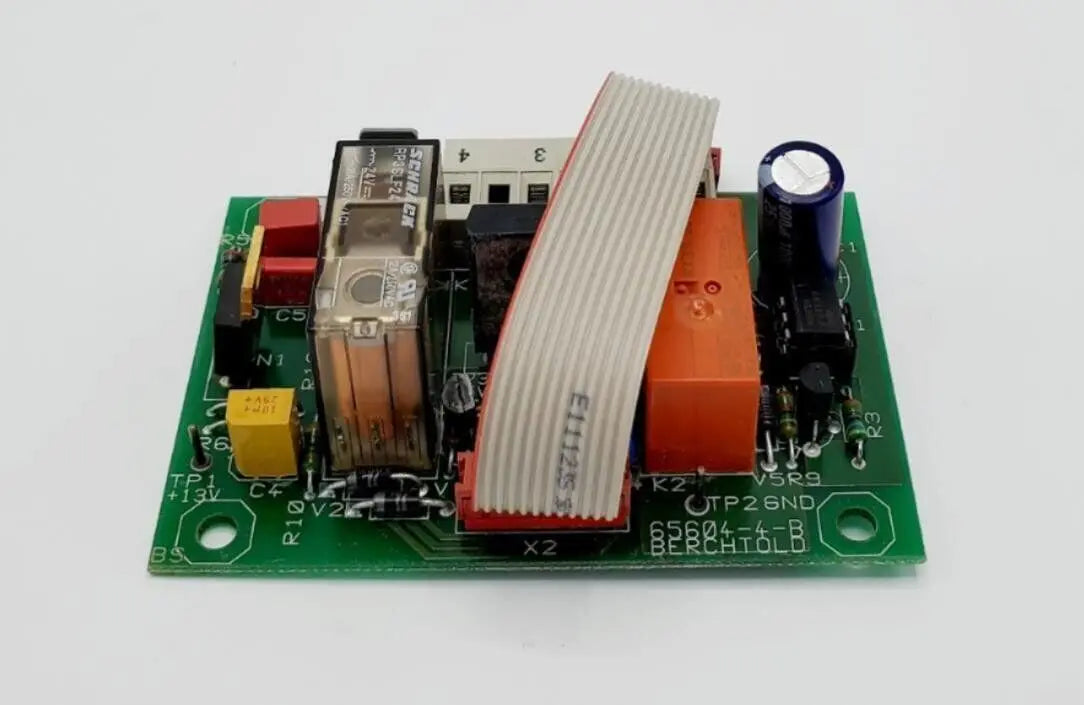

Berchtold Chromophare D-Series Voltage Regulator Board 65604-4-B

Chromophare D-Series Operating Room Light Component | Voltage Regulator and Light Intensity Power Circuit Board | Model 65604-4-B | Central Axis Suspension Control Element

The Berchtold Chromophare 65604-4-B is a professional-grade, hospital-legacy printed circuit board (PCB) assembly explicitly engineered to manage electrical power distribution and light intensity regulation within premium Berchtold Chromophare D-Series halogen and early-generation LED surgical lighting systems (including the D650plus, D540, D530plus, and D300 illumination heads). Functioning as the primary solid-state voltage regulator module, this circuit board steps down, stabilizes, and modulates incoming alternating current (AC) or direct current (DC) line voltage to deliver a clean, continuous power supply directly to the surgical light head's central lamp elements or LED arrays. This precision voltage suppression eliminates subtle light head flickering, preserves optimal color rendering indices (CRI), manages user-selected lux intensity dimming adjustments from the wall control pad or suspension arm keypad, and protects expensive illumination filaments from catastrophic power spikes, guaranteeing a stable, shadow-free, and uniform column of high-intensity light over high-stakes, long-duration operating room fields.

Technical Specifications

• Manufacturer: Berchtold GmbH & Co. KG (A subsidiary of Stryker Corporation Medical Division)

• Product Brand Family: Chromophare D-Series Surgical & Examination Lighting Systems

• Product Catalog Code / OEM Part Number (MPN): 65604-4-B (Main family line tracked under base part series 65604)

• Equipment Functional Classification: Voltage Regulator Board / Light Intensity Control Power Circuit Board (PCBA)

• System Integration Corridor: Typically installed within the central transformer enclosure, ceiling suspension hub assembly, or wall-mounted control panel box matching the D-Series framework

• Circuit Architecture Matrix: Flame-retardant fiberglass substrate utilizing surface-mount technology (SMT), heavy-duty filtering capacitors, and integrated power transistors

• Interface Interconnect Array: Multipin header track configuration engineered for direct ribbon cable coupling to the main logic processor and power supply lines (Note: Ribbon interconnect cables are typically distributed separately)

• Reusability / Component Processing Classification: Fully Reusable Capital Hardware Component (Clean with dry, non-conductive electronics methods only; do not expose to fluids or steam sterilization)

• Clinical Allocation Group: Operating Room Infrastructures, Surgical Services, Day Surgery Equipment Suites, Emergency Trauma Centers, and Ambulatory Treatment Rooms
