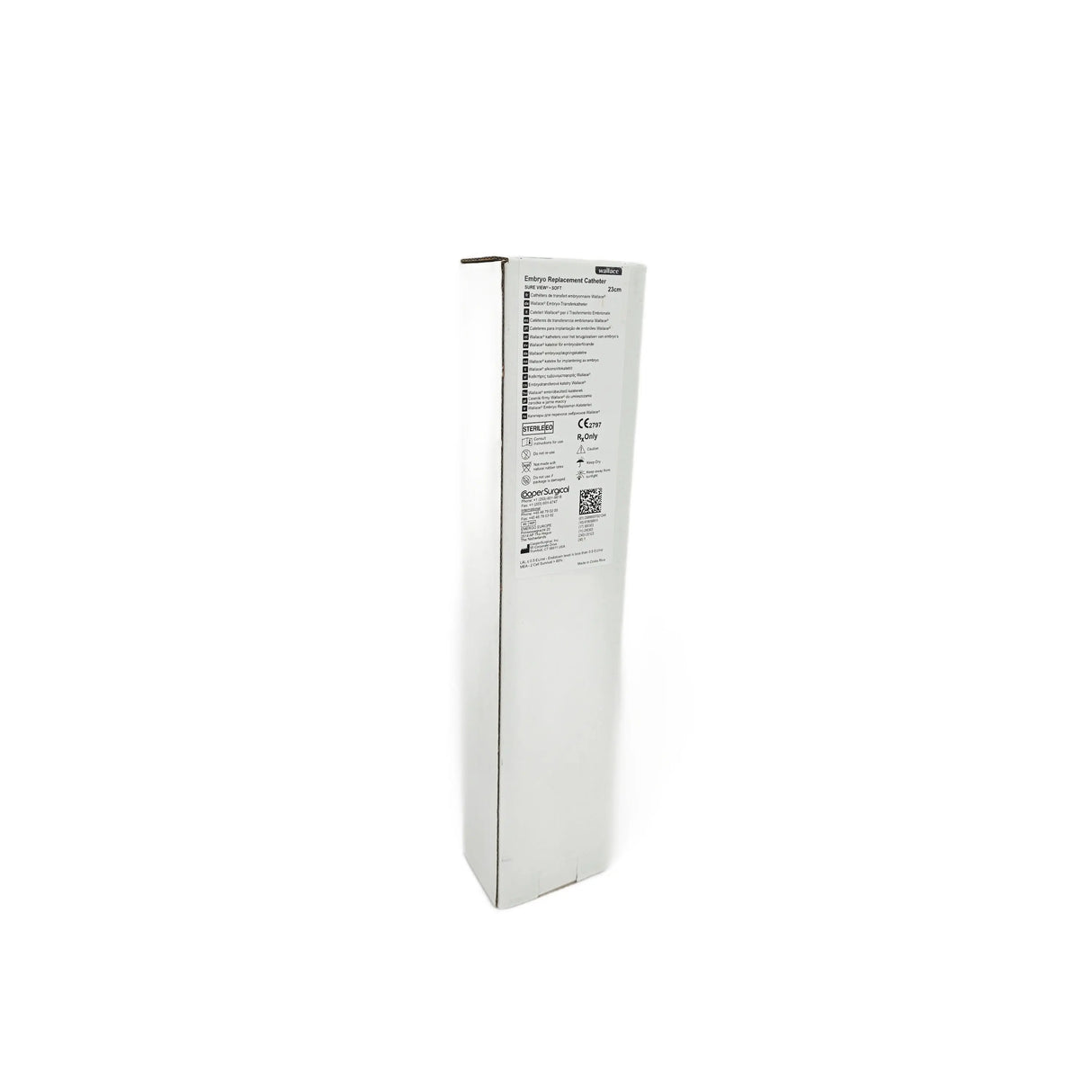

CooperSurgical Wallace CE123 SureView Soft 23cm Ultrasound Visible Embryo Transfer Catheter – Box of 10

CooperSurgical Wallace CE123 SureView Soft 23cm Ultrasound Visible Embryo Transfer Catheter – Box of 10

CooperSurgical Wallace SureView Soft Embryo Transfer Catheter | Model CE123 | 23cm Extended Length | Full Ultrasound Echo-Visibility | Precision Assisted Reproductive Technology (ART) Tool | Box of 10

The CooperSurgical Wallace CE123 SureView Soft Embryo Transfer Catheter is a premium, clinical-grade medical device engineered for precise, ultrasound-guided embryo replacement during In Vitro Fertilization (IVF) cycles. This specialized catheter utilizes patented Wallace SureView technology, embedding microscopic air bubbles within the catheter walls to provide clear, full-length echogenic visualization from hub to tip under ultrasound mapping. This design eliminates visual blind spots, enabling embryologists and clinicians to confidently position the hand-crafted, soft rounded tip inside the uterine cavity without causing mechanical trauma to the delicate endometrial lining.

Technical Specifications

• Equipment Typology: Full Echogenic Ultrasound Visible Embryo Transfer Catheter

• Manufacturer Catalog Number (MPN): CE123

• Nominal Catheter Working Length: 23.0 cm extended reach profile (230 mm internal lumen track)

• Inner Catheter Inside Diameter (ID): 0.76 mm

• Inner Catheter Outside Diameter (OD): 1.52 mm

• Outer Sheath Outside Diameter (OD): 2.30 mm

• Total Internal Fluid Hold-up Volume: 0.104 mL (104 microliters total capacity, excluding hub cavity)

• Volumetric Displacement Metric: 0.0045 mL per cm length (4.5 microliters per cm line displacement)

• Suggested Fluid Loading Parameter: 0.5 cm to 1.0 cm length corresponding to a 2.25 to 4.5 microliter payload target

• Echogenic Enhancement Technology: Integrated continuous microbubble polymer matrix for uninterrupted ultrasound reflection

• Tip Profile Finish: Hand-crafted, ultra-smooth rounded distal edge profile engineered to suppress uterine lining reaction

• Depth Orientation Tracking: Integrated high-contrast centimeter depth alignment markings along the shaft body
