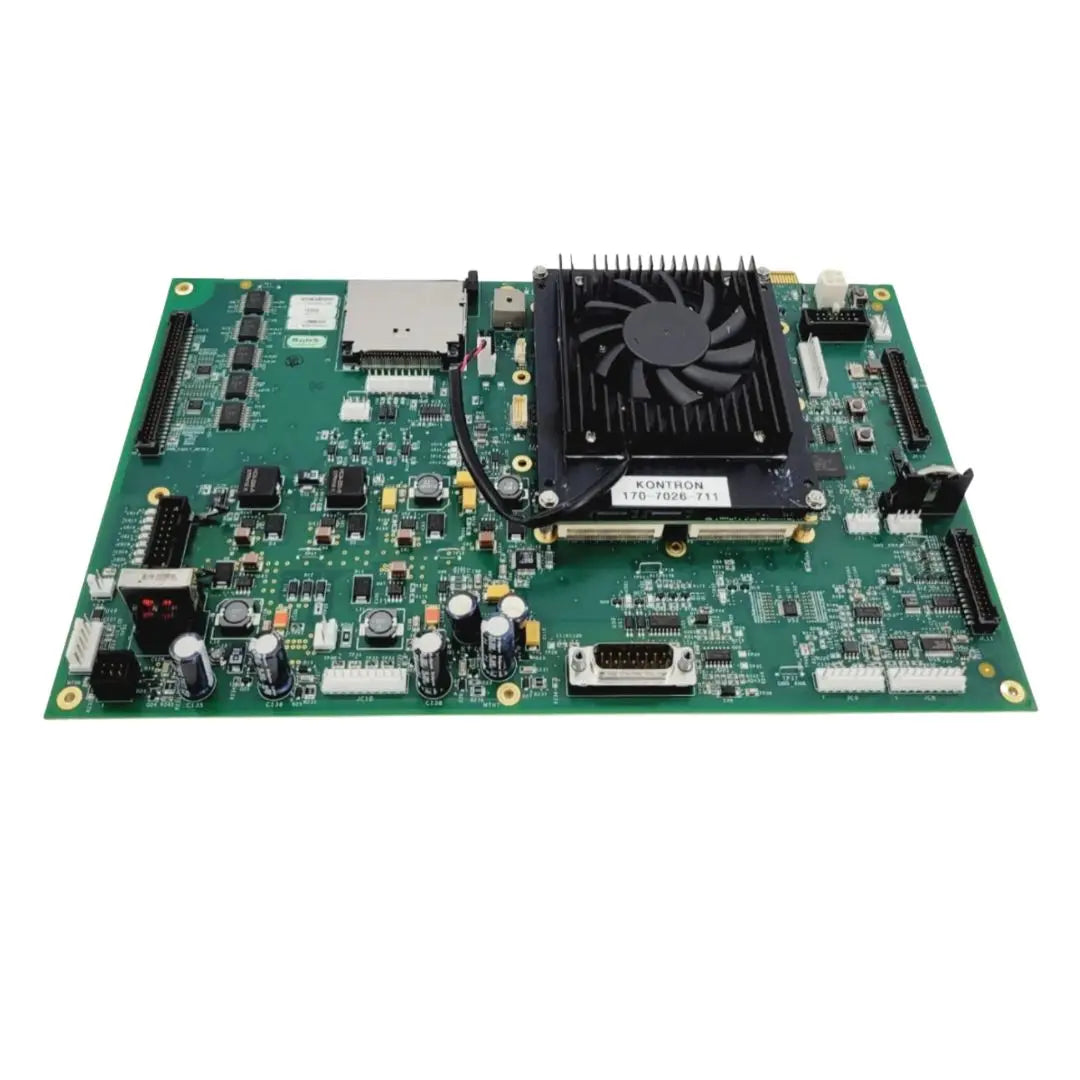

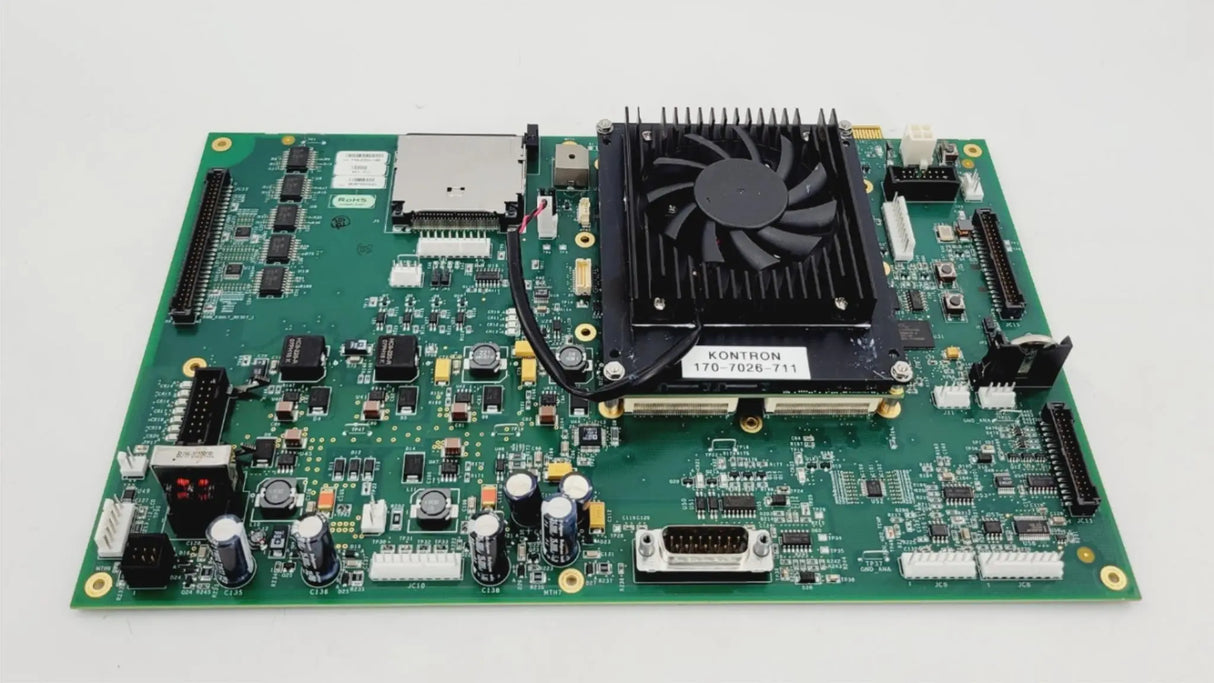

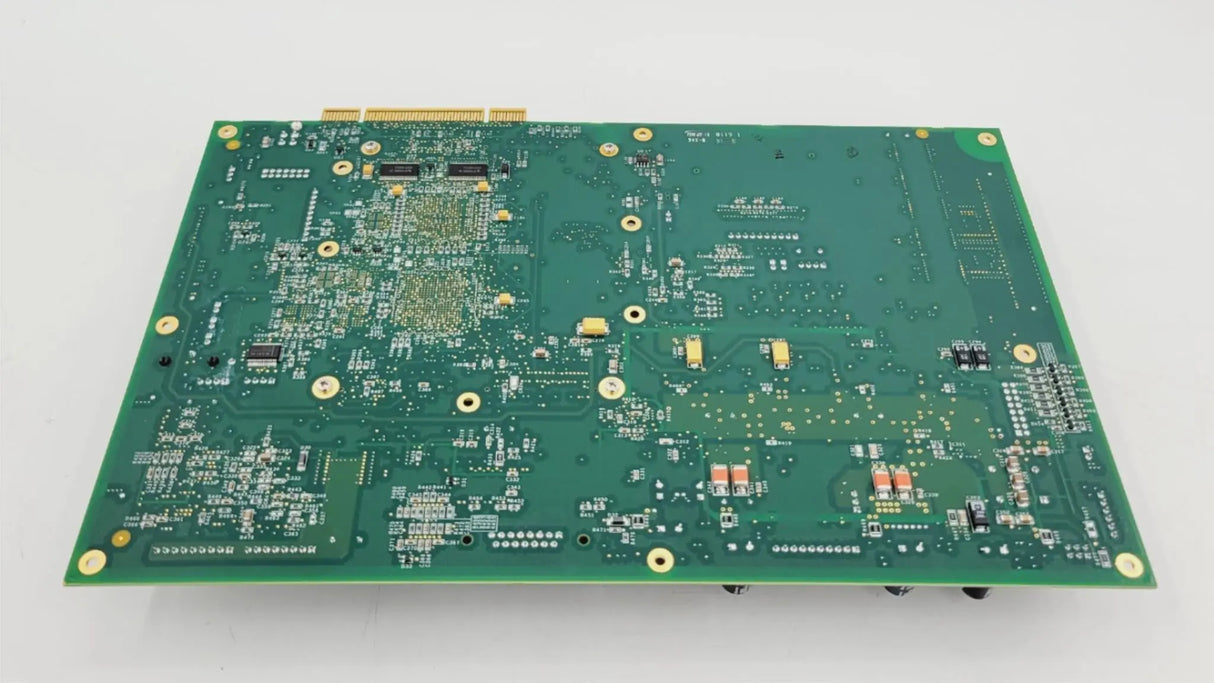

Cynosure 711-0224-100 Rev 012 SculpSure Assembly Board

Cynosure 711-0224-100 Rev 012 SculpSure Assembly Board

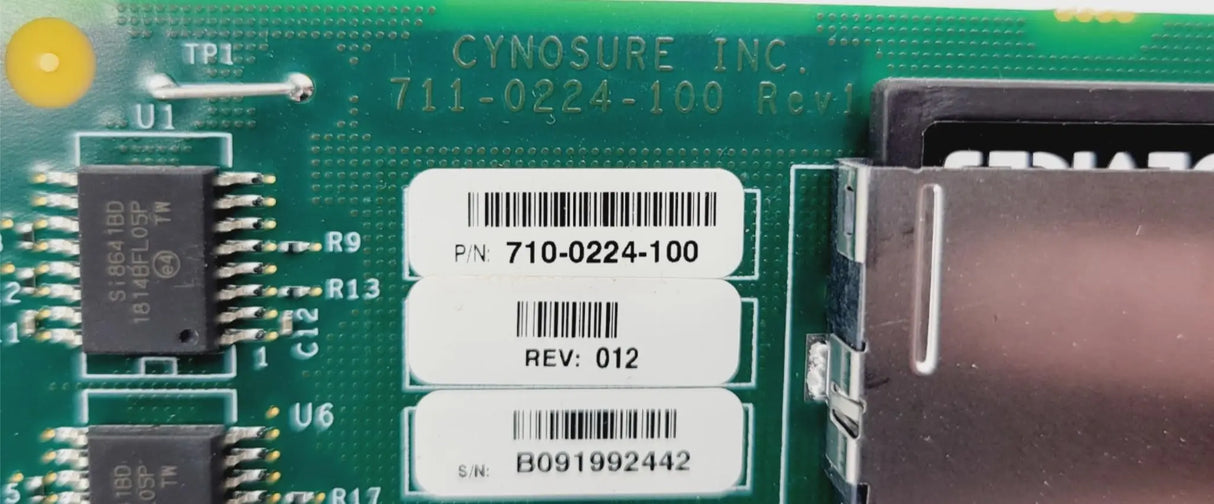

• Part No. 711-0224-100
• Rev 012
• S/N: B091992442
• Date of Manufacture: 2019

Subcomponent or Part Removed from System/Unit (PART):

This medical equipment item is a subcomponent or part that has been extracted from a larger system or unit. It is intended for use as a replacement part or for integration into another system. Its condition may vary, but it has been removed with care to preserve its functionality.

The Cynosure 711‑0224‑100 Rev 012 board is an internal electronic assembly component used within the SculpSure laser body contouring system—an advanced platform for non-invasive fat reduction. While official documentation is limited, maintenance and parts suppliers identify this board as part of the critical internal circuitry—likely responsible for managing control communication, power regulation, or signal routing between system components.

As an assembly board, this component is integral to the SculpSure system's operation. It plays a vital role in delivering firmware instructions, coordinating diode activation, interpreting control inputs, or maintaining system diagnostics. Boards like these are often required to replace faulty circuit cards or integrate system revisions like software updates or minor hardware refreshes to ensure stability and performance.
