GE OEC 9900 Elite Digital Mobile C-Arm | Surgical Fluoroscopic Imaging System | High-Resolution 1k x 1k CCD Architecture | Dual LCD Flat Panel Monitor Workstation

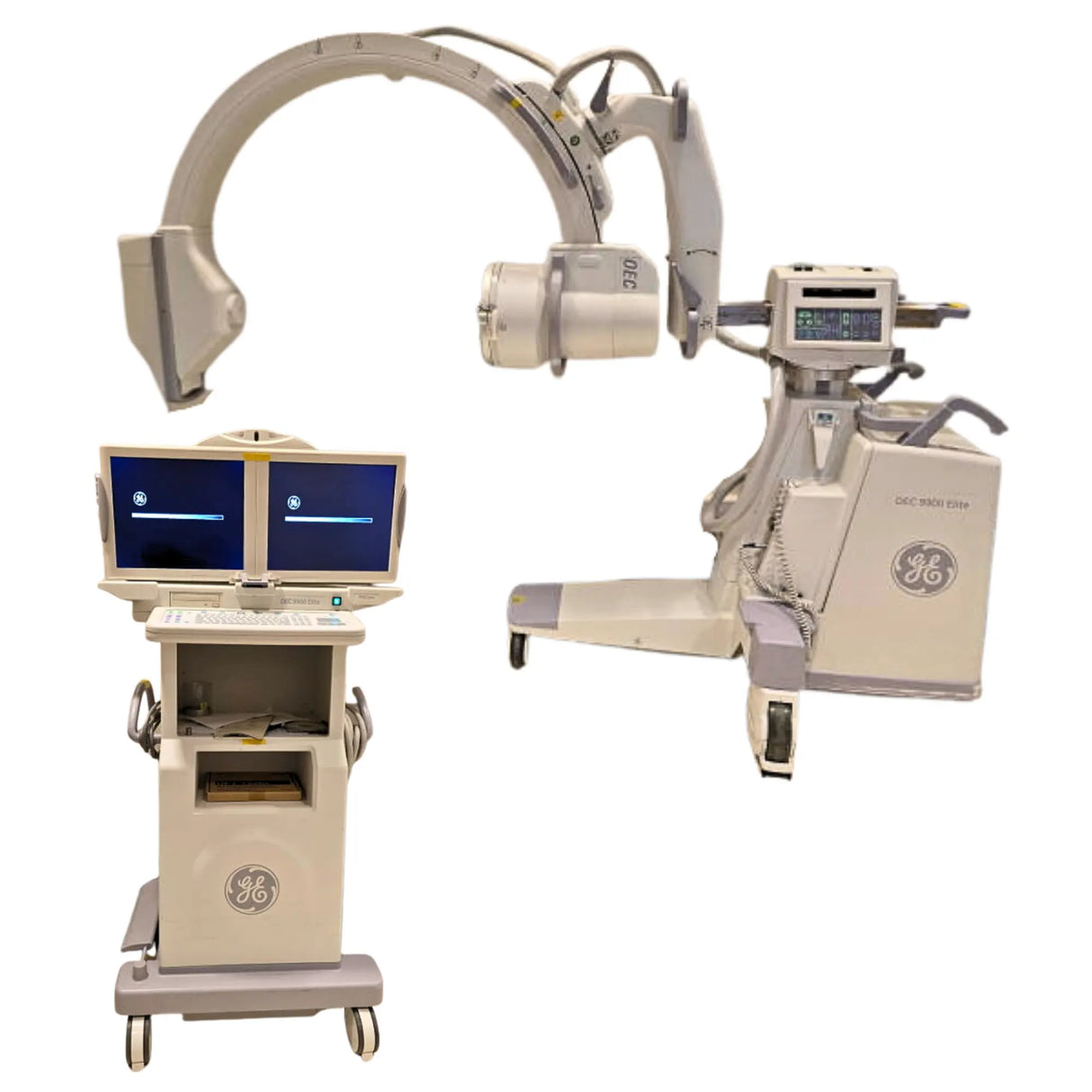

The GE OEC 9900 Elite is a clinical-grade mobile digital C-arm system engineered to provide high-resolution fluoroscopic and radiographic imaging across orthopedic, vascular, neurosurgical, and general trauma interventions. Utilizing an advanced 1k x 1k image processing chain combined with Dynamic Range Management (DRM), this system delivers crisp anatomical visualization and edge enhancement while minimizing localized radiation exposure. The modular platform comprises a heavy-duty, maneuverable C-arm gantry and an articulating dual-monitor workstation console that plugs directly into standard surgical suite wall outlets.

Technical Specifications

• Equipment Typology: Mobile Surgical Fluoroscopic X-Ray C-Arm System

• DOM: March 2008

• X-Ray Generator: 60 kHz high-frequency, 15 kW power capacity with a patented battery-buffered design

• X-Ray Tube Type: Rotating anode with dual focal spots (0.3 mm and 0.6 mm)

• Anode Heat Capacity: 300,000 Heat Units (HU) with a rapid 85,000 HU/min cooling rate

• Imaging Modes: Continuous Fluoroscopy (up to 10 mA), High-Level Fluoro (HLF up to 20 mA), Pulsed Fluoro, and Digital Spot (up to 75 mA)

• Voltage Output Range: 40 to 120 kVp dynamic variance

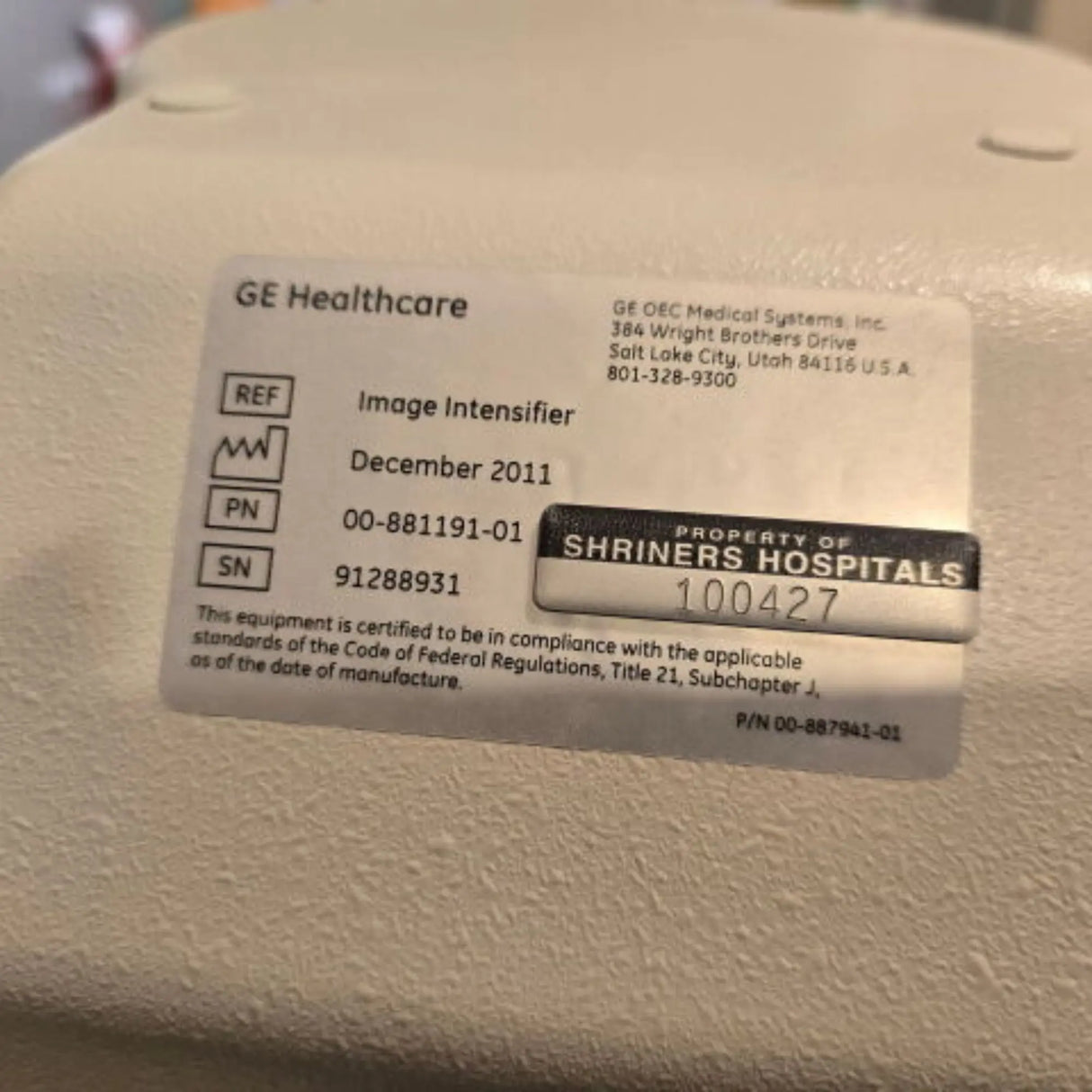

• Image Intensifier Options: Available in Tri-Mode 9" (23 cm) or 12" (31 cm) configurations

• Video Camera System: High-resolution 1k x 1k CCD camera with full frame capture and motorized digital image rotation

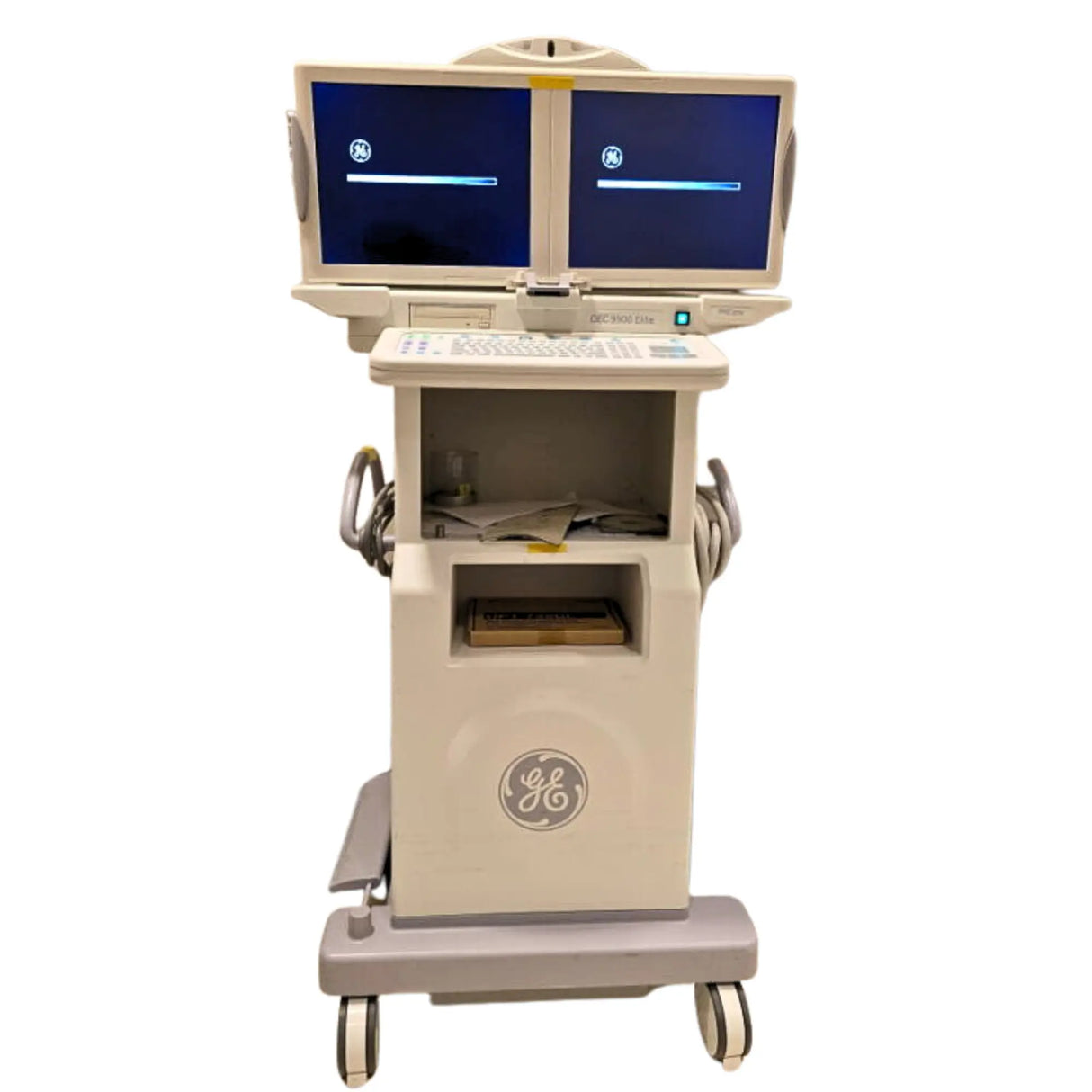

• Workstation Displays: Dual 18" anti-glare LCD flat panel monitors mounted on a multi-axis articulating arm (1280 x 1024 resolution, 800 cd/m2 brightness)

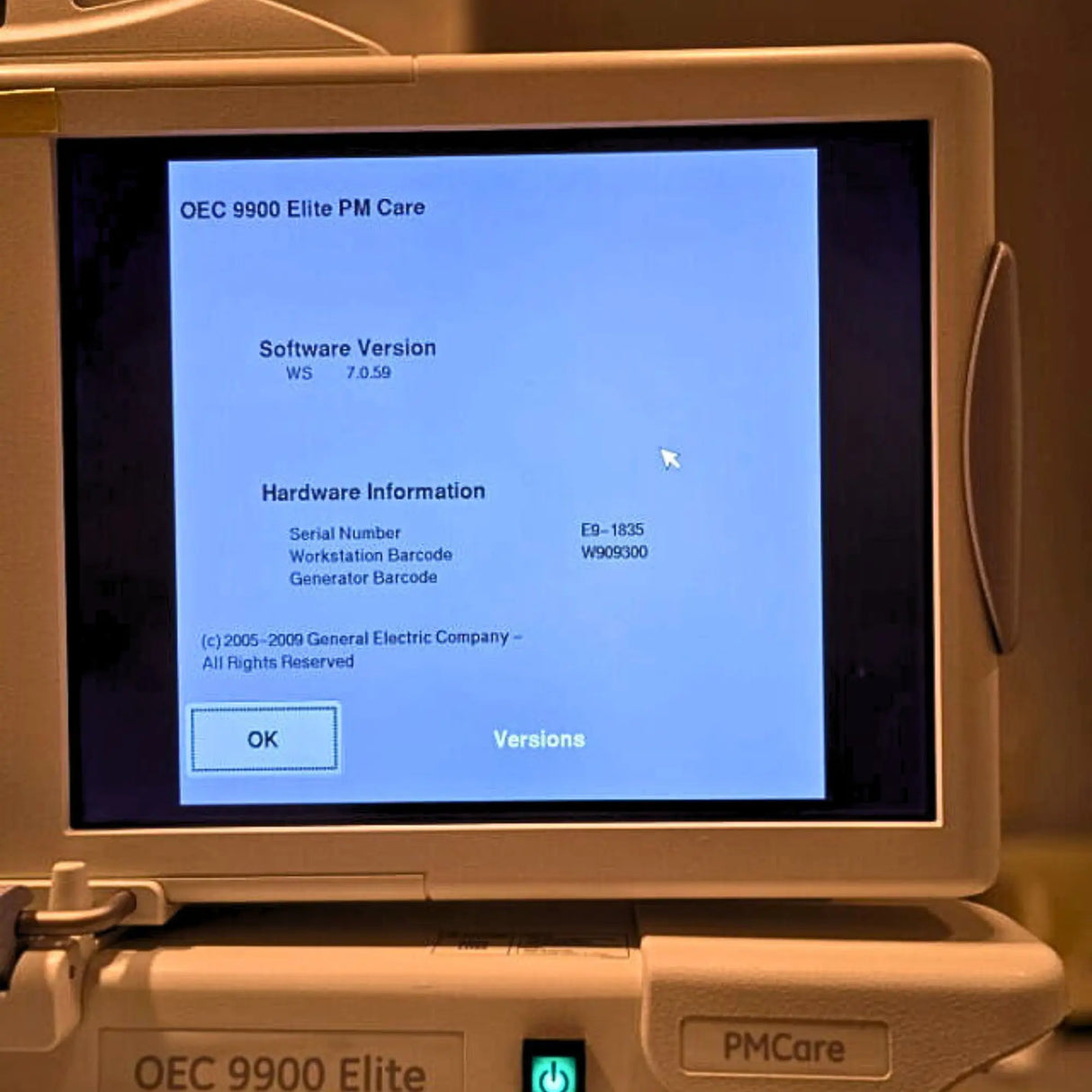

• User Interface: Touchscreen control panels with AutoTrak Automatic Brightness Stabilization (ABS)

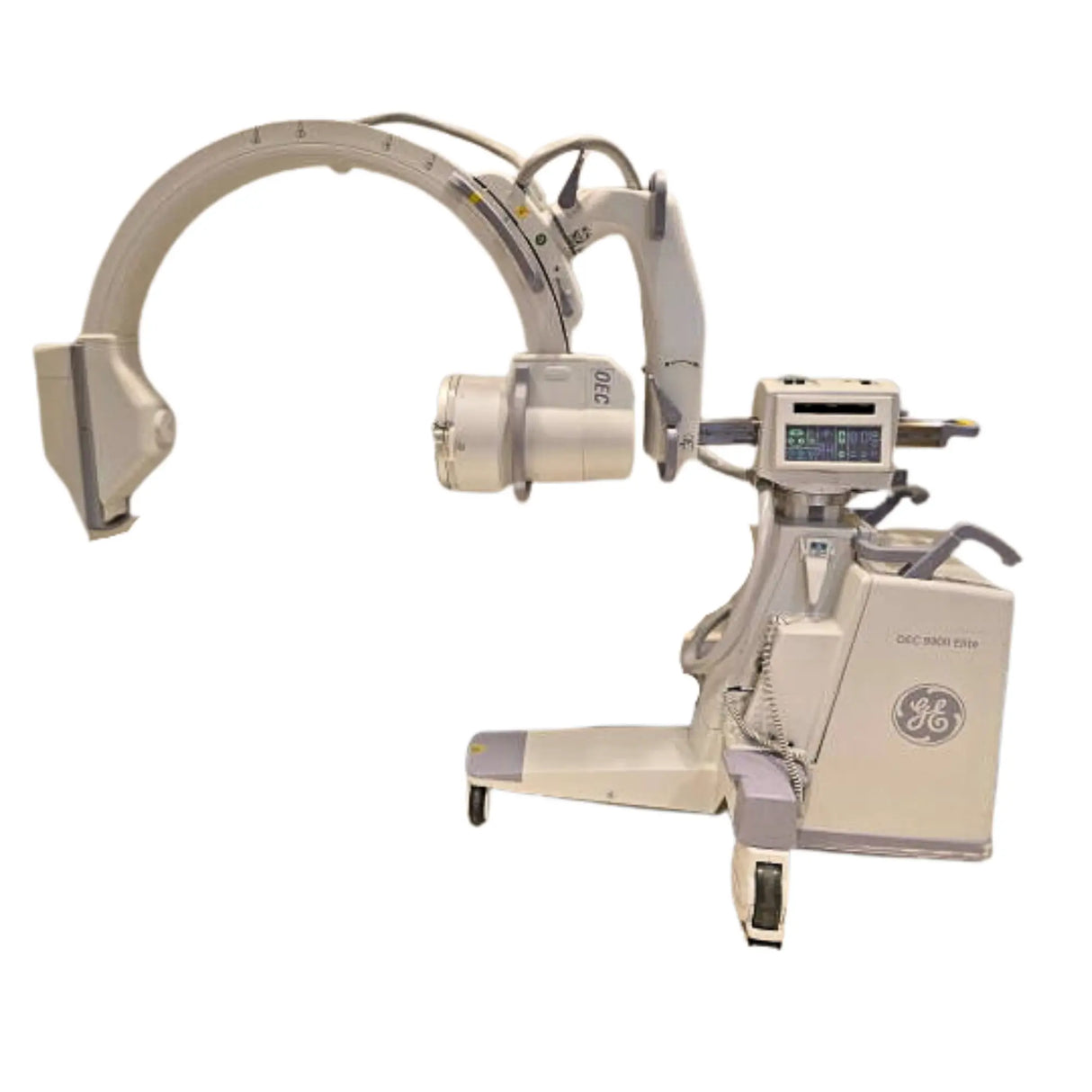

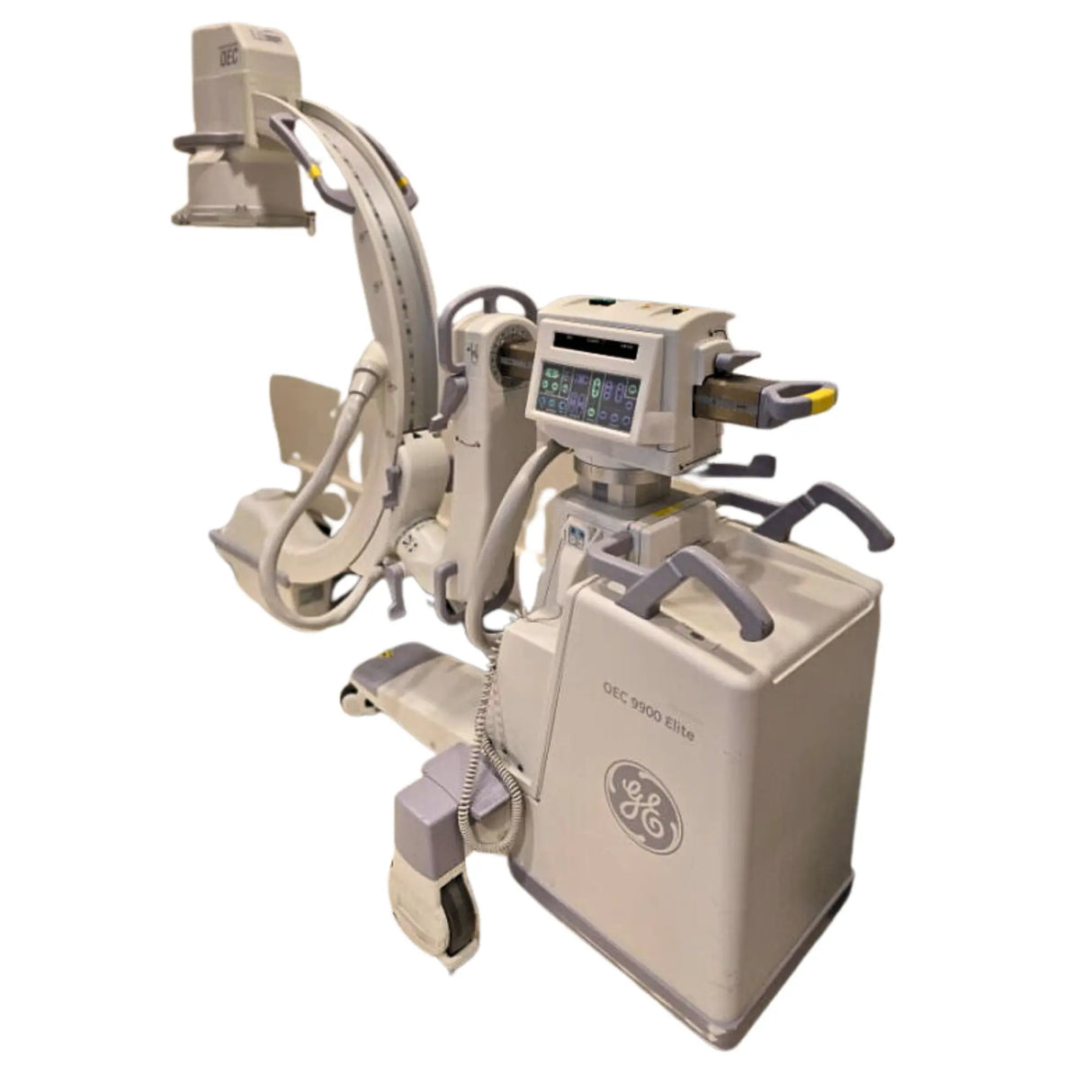

• C-Arm Frame Dimensions: 69.7" H x 33.5" W x 78.0" L (177.0 cm x 85.1 cm x 198.1 cm)

• Workstation Dimensions: 64.3" H x 27.3" W x 27.3" D (163.2 cm x 69.2 cm x 69.2 cm)

• Net Hardware Weights: C-Arm Gantry: 610 lbs (277 kg) | Workstation Console: 450 lbs (204 kg)

• Electrical Requirements: 120V AC, 12A or 240V AC, 10A (50/60 Hz auto-sensing)
