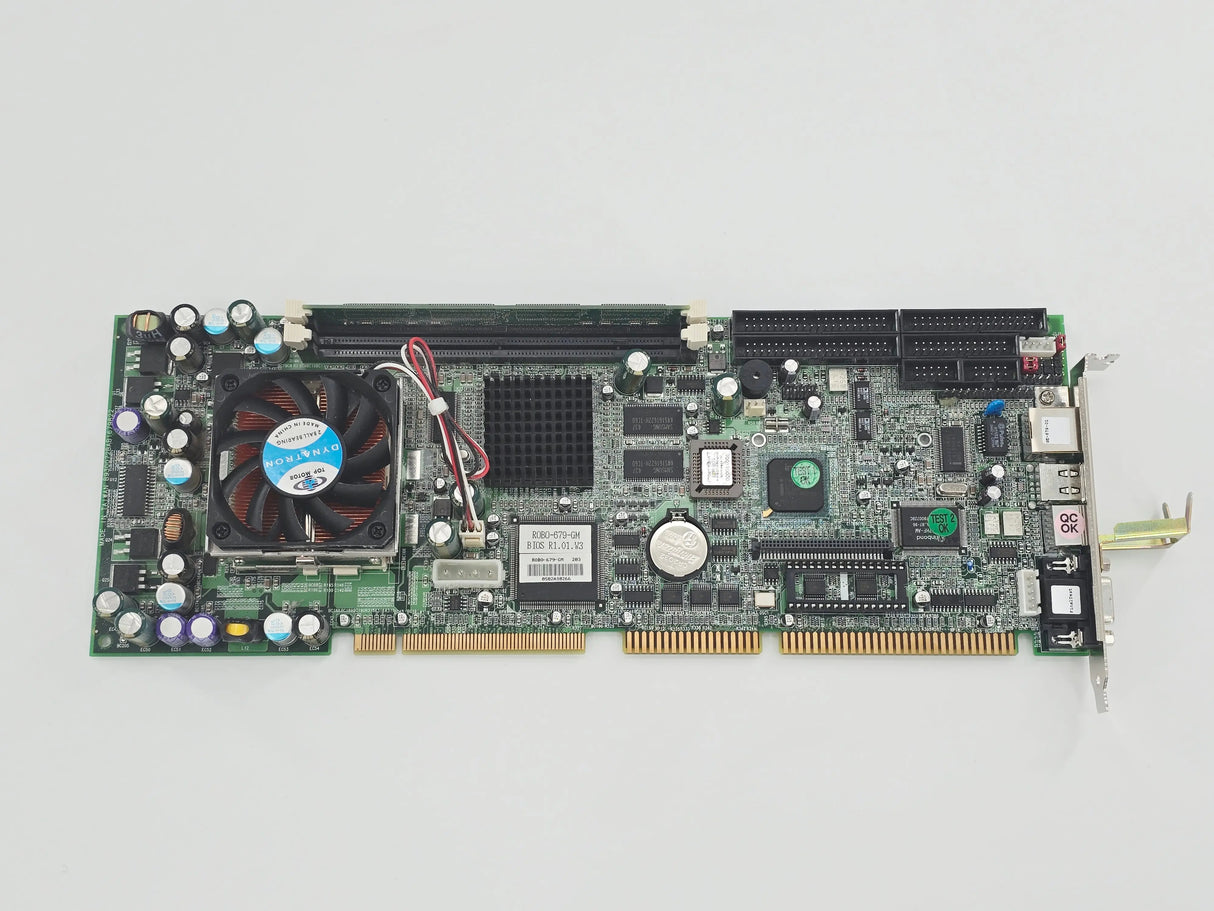

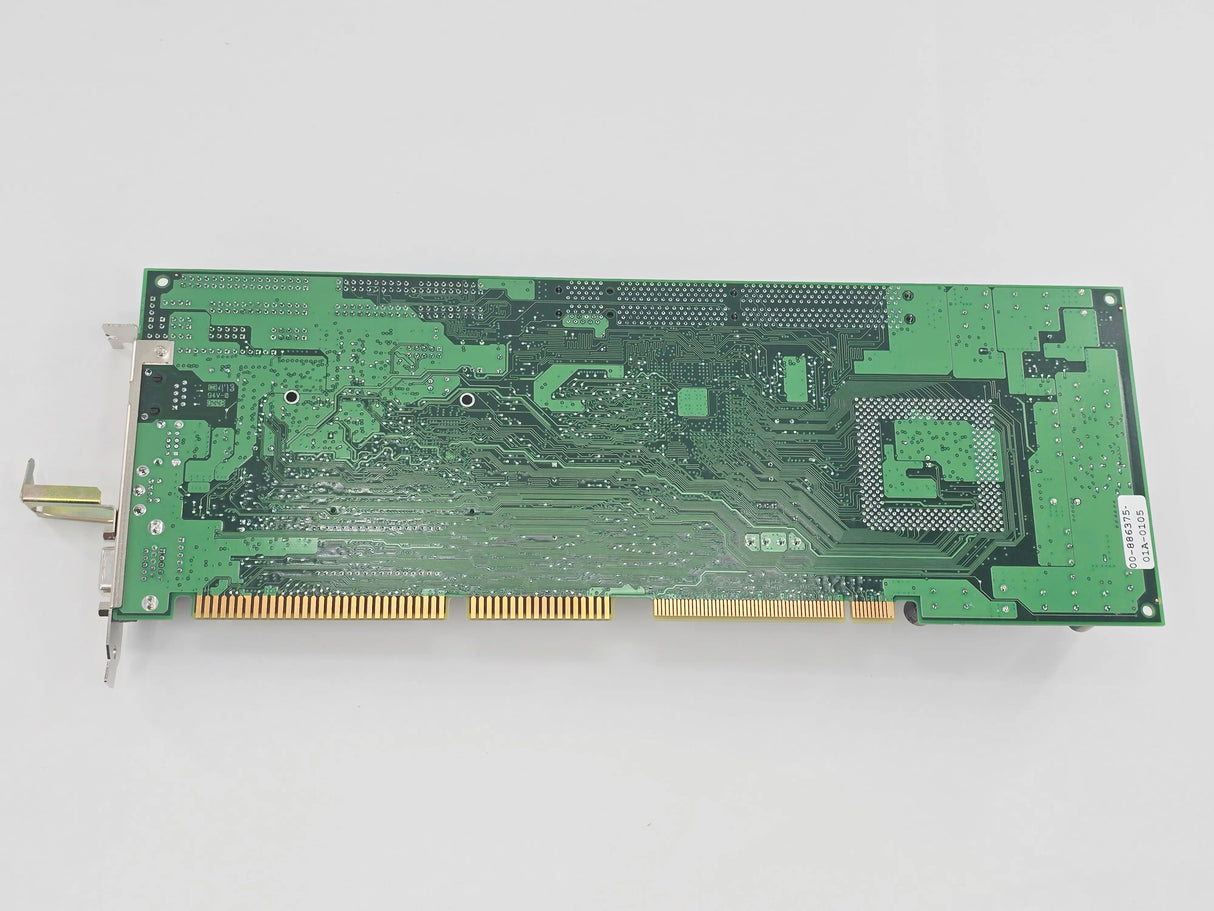

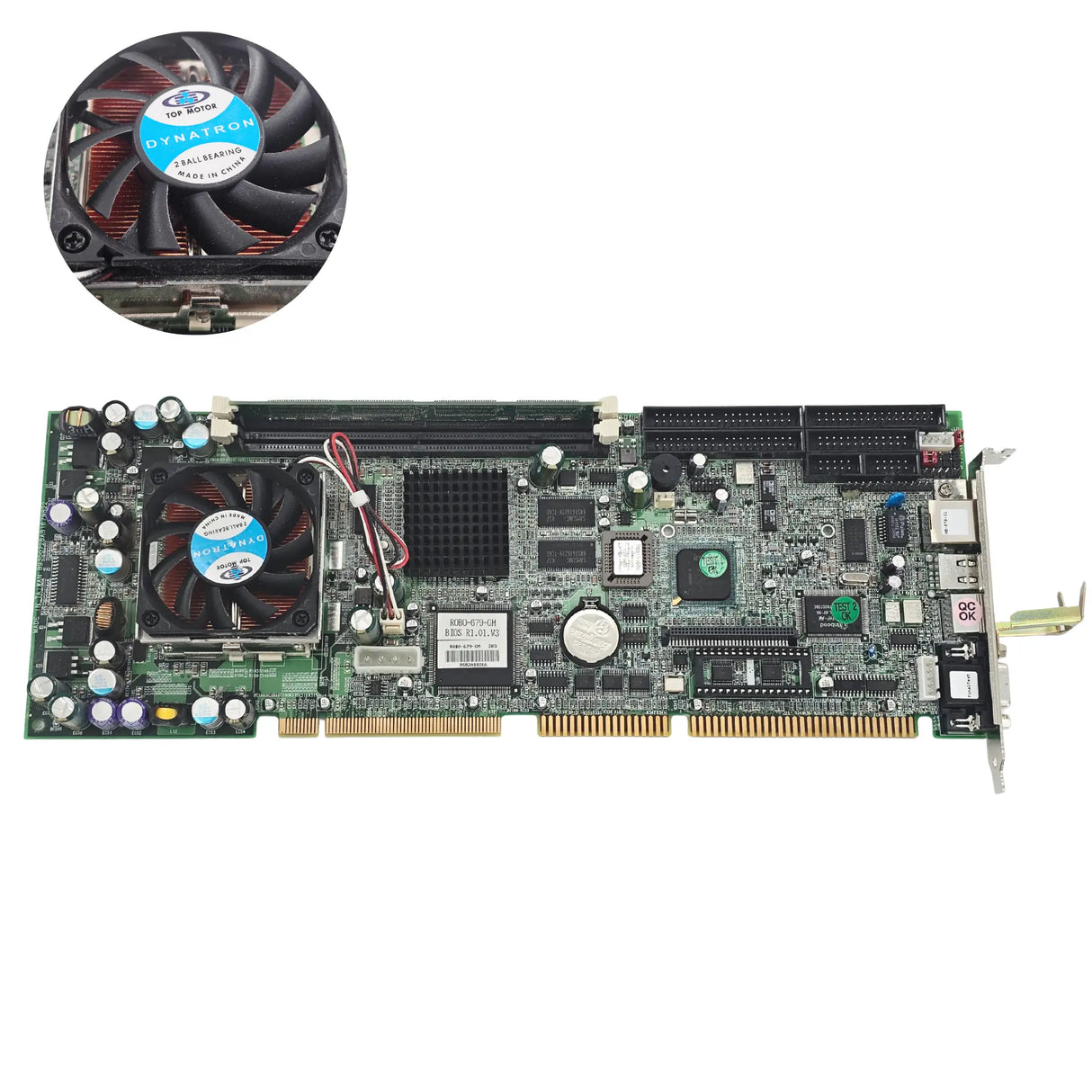

GE OEC ROBO-679-GM Mini CPU Board Portwell Single Board Computer Used

GE OEC Mini CPU Board | Model ROBO-679-GM | Full-Size PICMG 1.0 Architecture | Legacy C-Arm Workstation Master Controller | Modular Imaging Central Processing Unit | Pre-Owned Hospital Capital Spares Component Asset (1/EA)

The ROBO-679-GM is a professional-grade internal industrial single-board computer expertly engineered to run core computing, system control, and real-time interface protocols for GE OEC surgical mobile C-arm fluoroscopy workstations. Operating as the primary system CPU module within the console's computer rack assembly, this multi-layer circuit board links localized user control panels, imaging software systems, and data recording networks. Built with a robust full-size PICMG 1.0 backplane interface, a dedicated Intel chipset, and physical legacy input-output configurations, this module ensures reliable data throughput to maintain system operational integrity during critical surgical imaging workflows.

Technical Specifications

• System Core Structural Typology: Full-Size PICMG 1.0 Single Board Computer

• Central Processing Integration: Socket 370 interface tailored for Intel Pentium III or Celeron processors

• System Hardware Chipset Matrix: Intel 815E Graphic Memory Controller Hub and 82801BA Input-Output Controller Hub

• System Volatile Memory Capacity: Two 168-pin DIMM sockets accommodating up to 512MB of PC100 or PC133 SDRAM

• On-Board Video Processing Engine: Integrated AGP graphics controller with 4MB external display cache memory

• Maximum Video Display Resolution: Up to 1600 x 1200 pixels at 256 colors (85 Hz vertical refresh limit)

• On-Board Network Interfaces: Single 10BASE-T or 100BASE-TX Fast Ethernet port with rear RJ-45 connection

• Integrated Storage Controller System: Two-channel Enhanced IDE supporting up to four devices

• Legacy Peripheral Connectors: Dual onboard DB9 serial ports, one parallel printer port, and two PS2 mini-DIN ports for keyboard and mouse

• Security Expansion Bus Interface: High-driving 64mA ISA bus interface alongside a proprietary PCI expansion bracket

• Hardware System Monitoring Node: Watchdog Timer selectable from 0.5 seconds to 254.5 minutes with active voltage, fan speed, and chip temperature sensors

• Board Construction and Layers: Heavy-duty 6-layer high-reliability industrial printed circuit board

• Total Physical Board Dimensions: 13.33 Inches Long x 4.80 Inches Wide (338.5 mm x 122.0 mm physical footprint)

• Electrical Power Requirements: Standard legacy industrial backplane input drawing 5V at 10A (typical profile)

• Environmental Operating Limits: 0 degrees to 55 degrees Celsius standard working window (5 percent to 95 percent non-condensing relative humidity)
