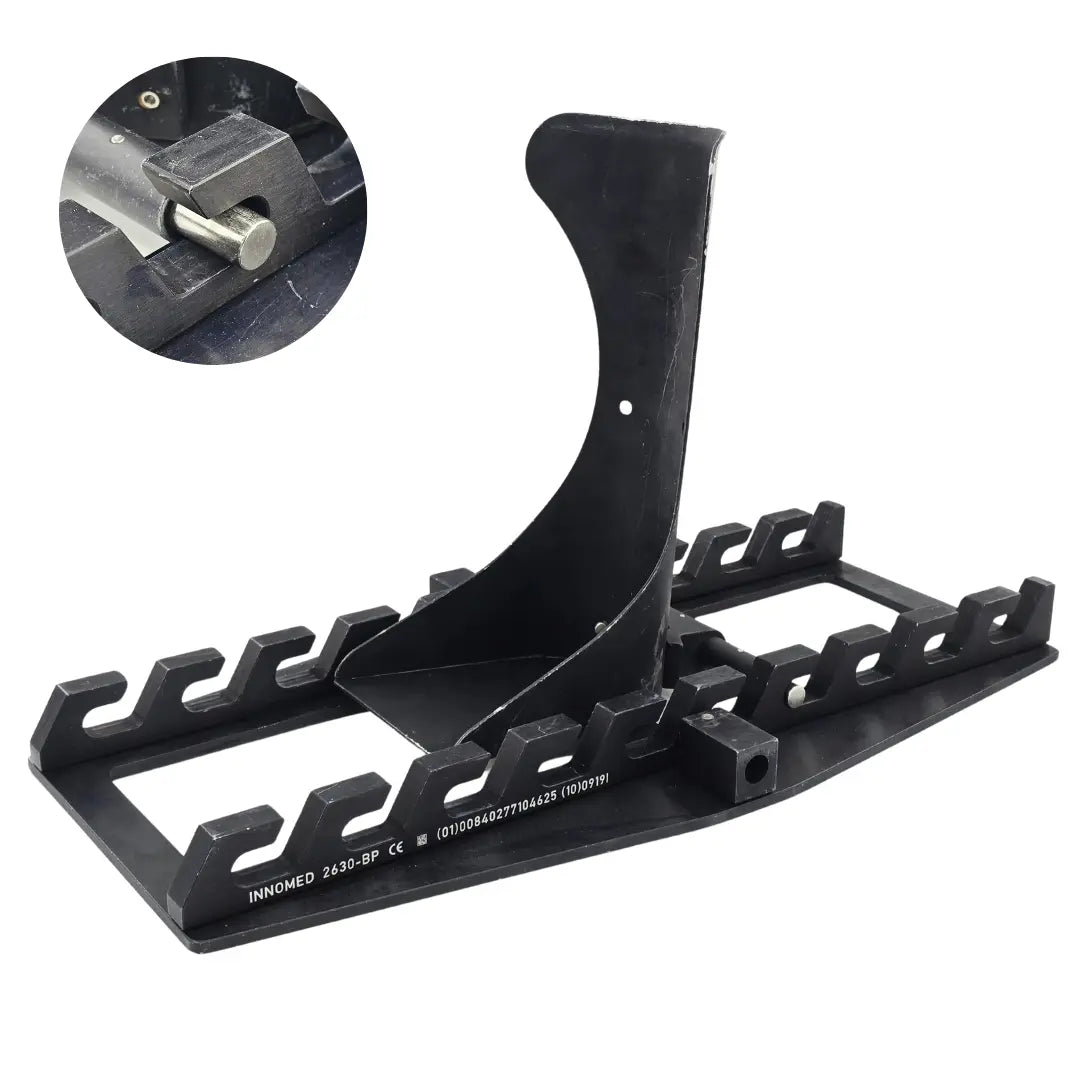

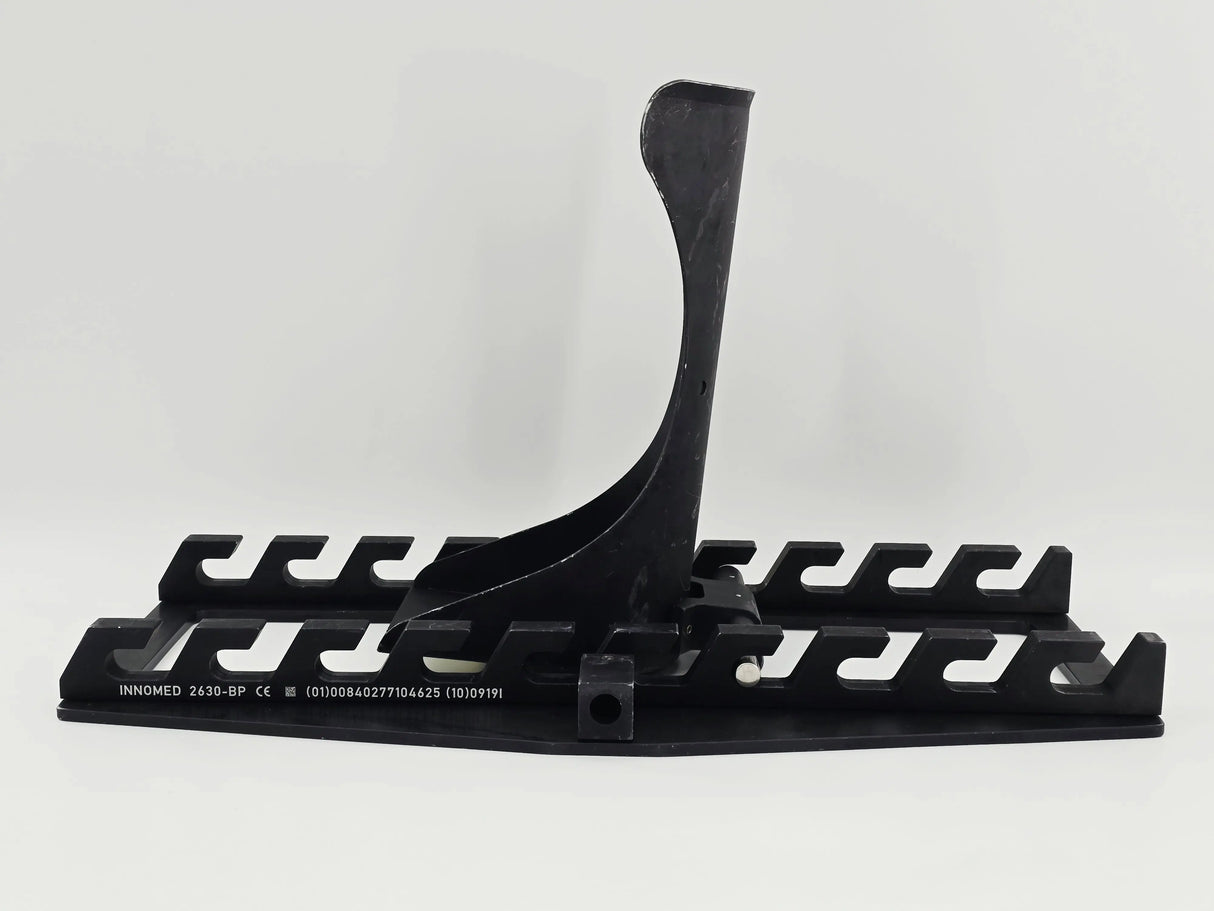

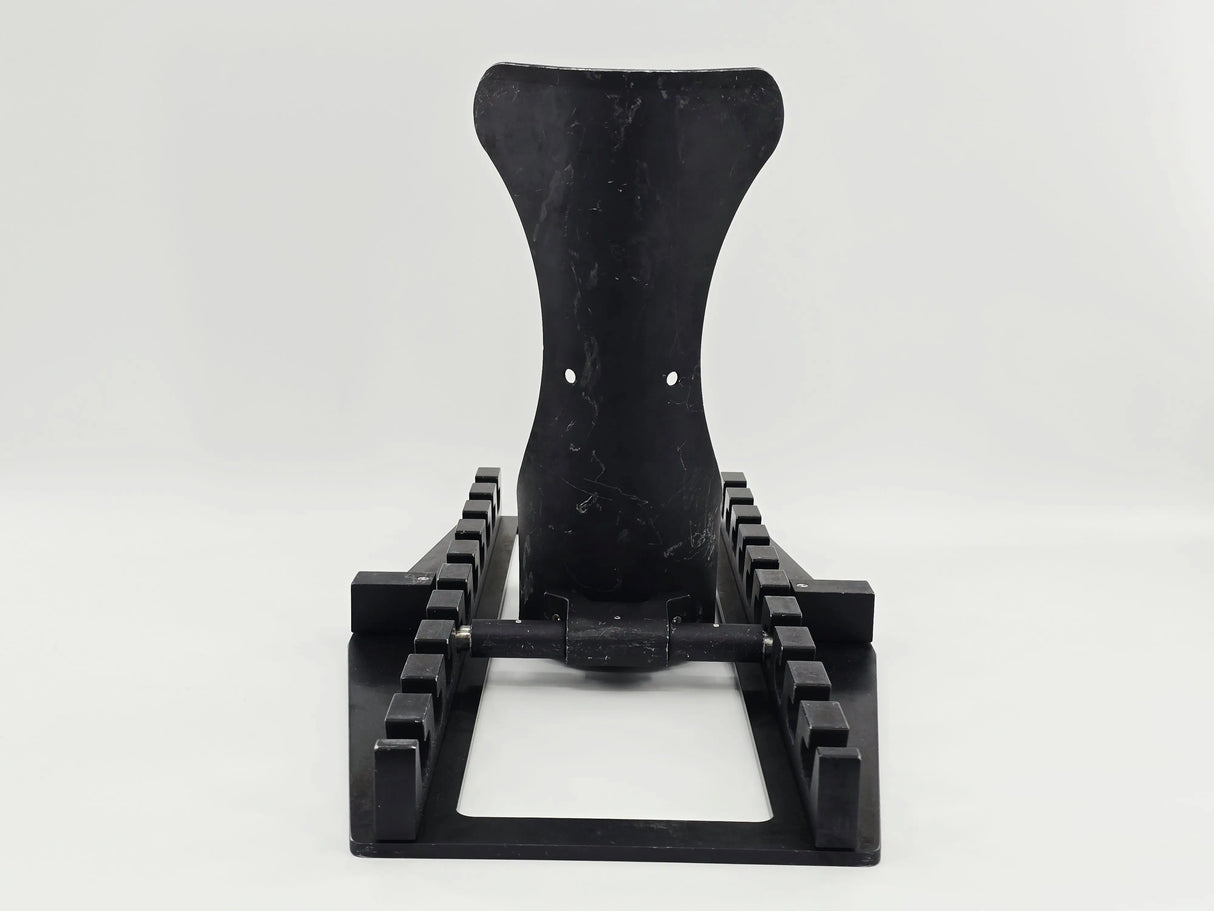

Innomed 2630 Robb Leg Positioner w/ 2630-FP Footpiece 2630-BP Base

Innomed Robb Leg Positioner Set | Model 2630-11 Complete System | Includes 2630-BP Slotted Base Plate and 2630-FP Aluminum Footpiece | Intraoperative Knee Flexion and Extension Slider Assembly | Reusable Capital Orthopedic Joint Arthroplasty Positioning Hardware

The Innomed Robb Leg Positioner system is a professional-grade manual orthopedic positioning assembly expertly engineered to maintain stable, rigid stabilization of the lower extremity during total knee arthroplasty, ligament reconstructions, and distal femur or tibial plateau fracture repairs. Originally designed by William Robb, MD, this specialized system consists of the 2630-BP slotted tracking base plate and the 2630-FP aluminum upright boot footpiece. The slotted architecture allows the clinician to smoothly flex, extend, or rotate the patient's leg along a fixed linear track, securing the knee at the precise angle required for joint exposure and component impaction without requiring hand-held assistance from surgical staff.

Technical Specifications

• Instrument Structural Typology: Slotted Orthopedic Leg and Knee Positioning Rig

• Primary Surgical Application: Total Knee Arthroplasty (TKA), total knee incision closure, and lower limb trauma fixation

• System Component Architecture: Includes the master track base plate (Model 2630-BP) and the matching slide-in boot assembly (Model 2630-FP)

• Base Plate Physical Dimensions: 21.0 Inches Long x 11.0 Inches Wide (53.4 cm x 27.9 cm track footprint)

• Footpiece Boot Physical Dimensions: 11.9 Inches Long x 6.0 Inches Wide x 7.9 Inches High (30.0 cm x 15.2 cm x 20.0 cm structural outline)

• Net Component Weight: Footpiece assembly weighs approximately 1.0 lb (0.45 kg lightweight profile)

• Mechanical Adjustment Action: Multi-slot linear glide path for continuous flexion-extension travel with integrated perpendicular slots for 360 degree foot rotation vectors

• Table Fixing Interface: Compatible with standard sterilizable table clamps (Model 2595) for rigid over-the-drape mounting directly to OR table side rails

• Patient Skin Protection Interfacing: Designed to accept standard disposable, latex-free sterile foam pads and cohesive fixation wraps (Model 2629-00 series)

• Material Composition Matrix: Premium, high-tensile structural anodized aluminum providing partial radiolucency and complete resistance to fluid absorption
