Karl Storz 30623F Dismantling Fan Retractor 5mm Endoscopy 17-1/2"

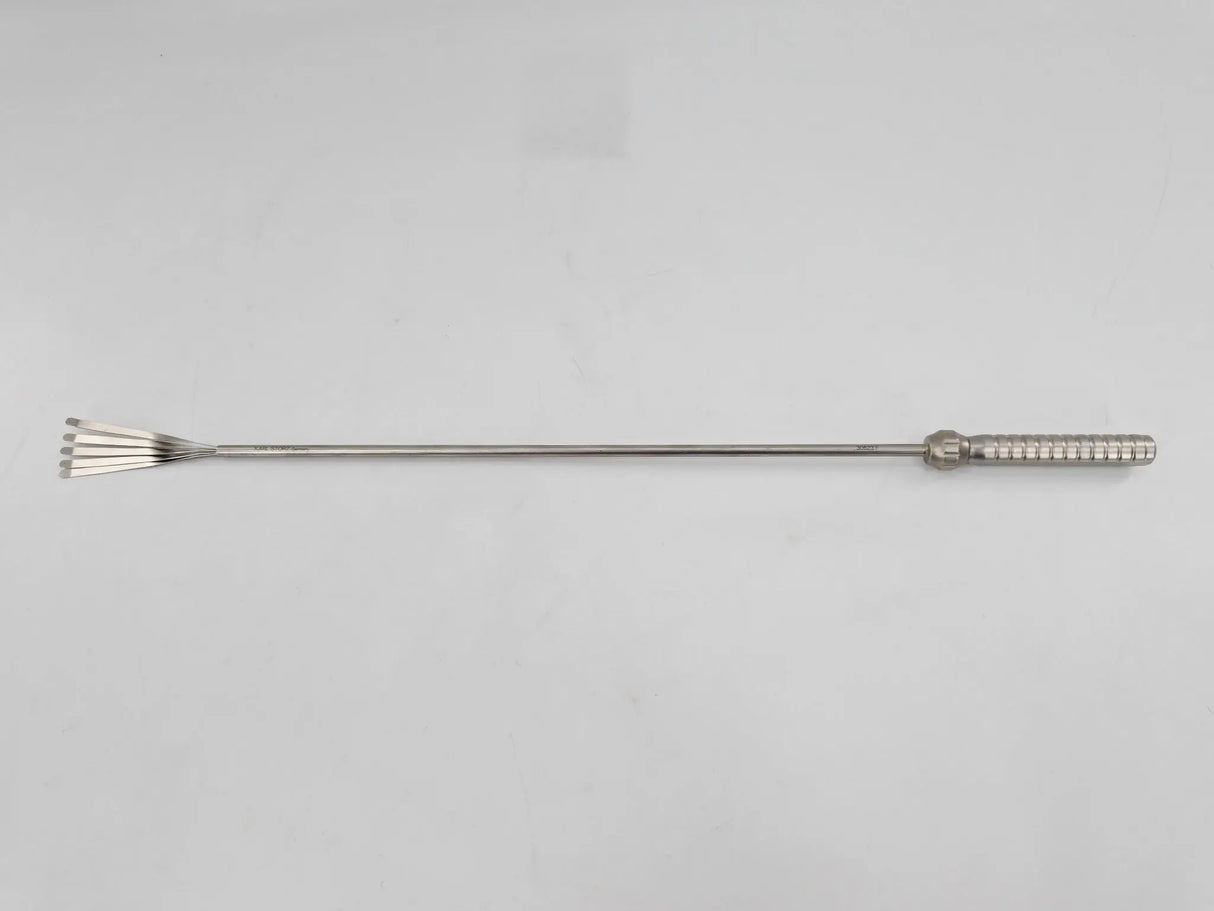

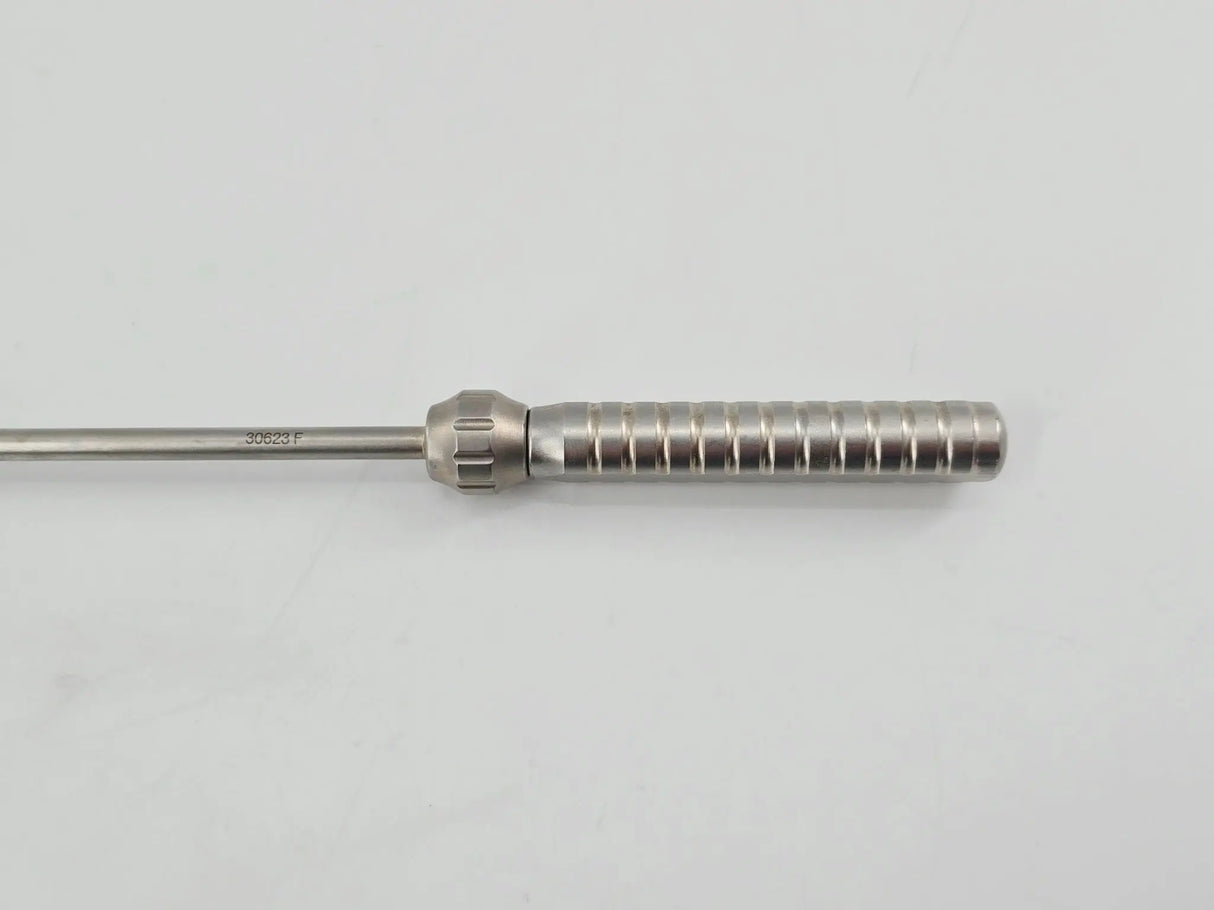

Karl Storz 30623F 5mm x 17-1/2" Dismantling & Retractable Fan Retractor

The Karl Storz 30623F is a professional-grade laparoscopic instrument engineered for the safe, non-crushing retraction of internal organs. The hallmark of this device is its retractable fan mechanism, which deploys to a 16° opening angle, creating a wide "paddle" that distributes pressure evenly across the tissue surface. This design is essential for protecting the liver capsule during cholecystectomy or for providing a clear view of the esophagus during Nissen Fundoplication.

As a dismantling model, the 30623F can be completely broken down into its component parts, ensuring that the internal mechanical tracks can be thoroughly irrigated and sterilized—meeting the highest standards of modern CSSD reprocessing. Its 17-1/2 inch (44.5 cm) working length makes it an ideal "Long-Reach" instrument for bariatric patients, ensuring the surgeon can maintain a stable retraction plane without "hubbing" against the trocar.

Key Features

• Manufacturer: Karl Storz

• Model Number: 30623F

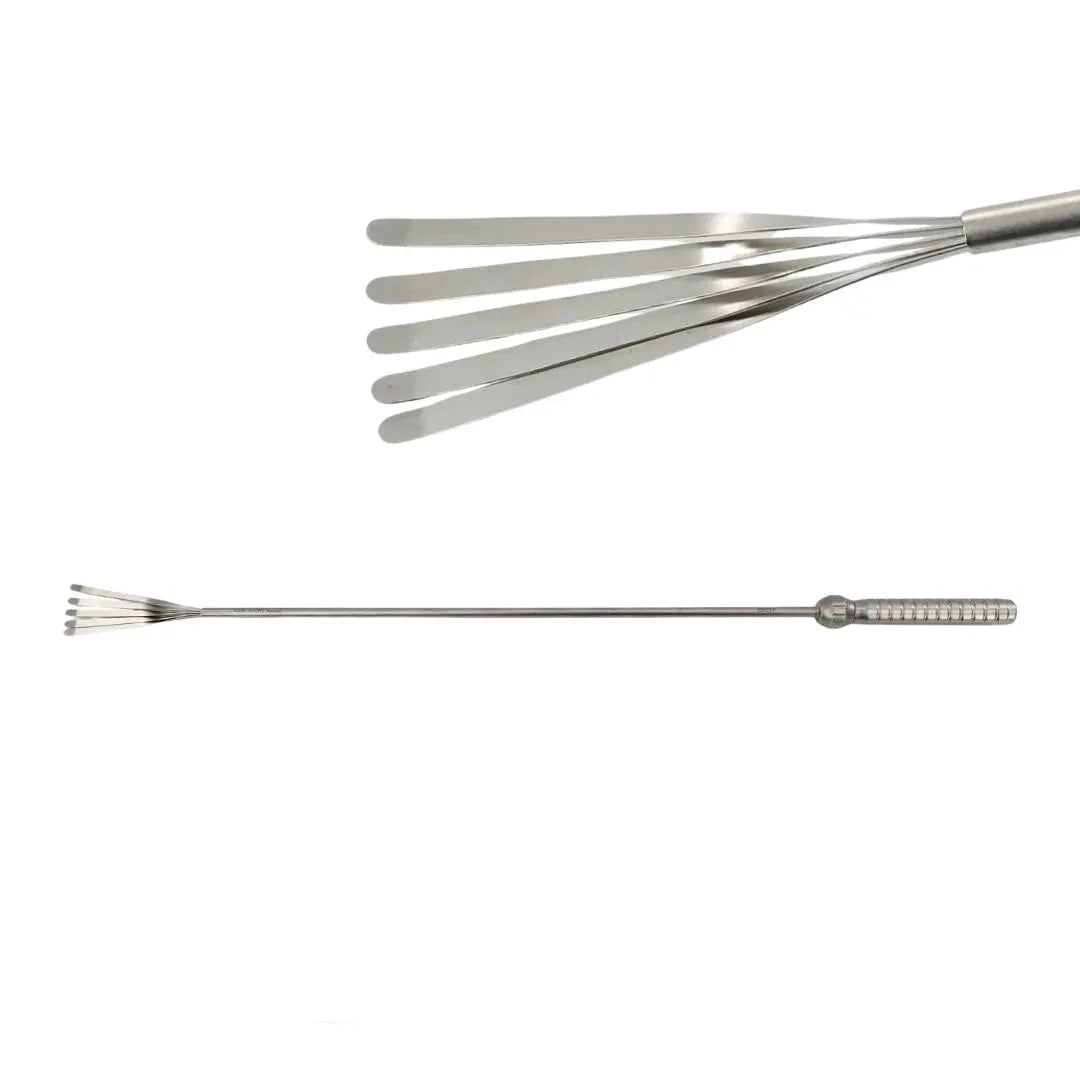

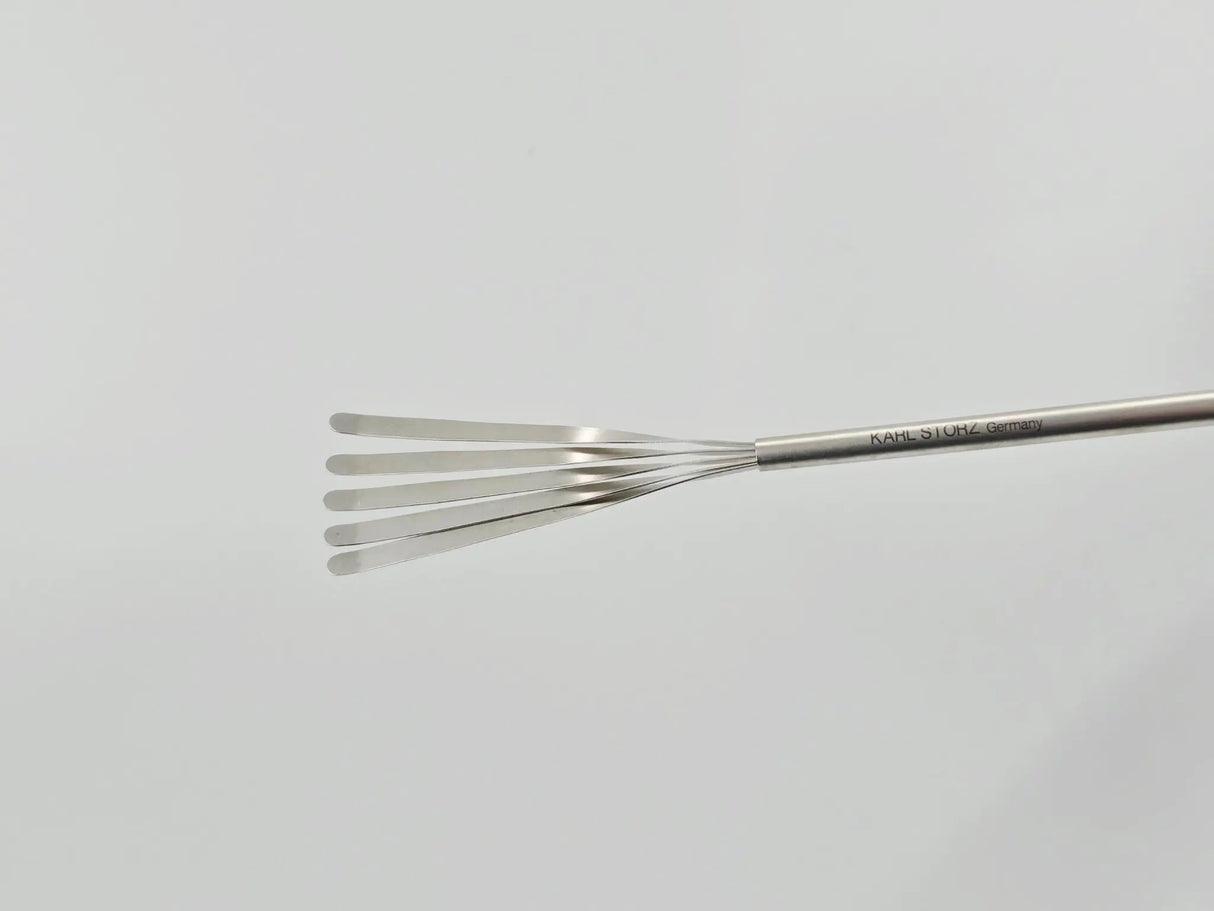

• Mechanism: Retractable Fan (3-Blade / 16° Opening Angle)

• Shaft Diameter: 5 mm (Fits standard 5mm trocars)

• Working Length: 17-1/2 inches (44.5 cm) — Bariatric specialty length

• Construction: Dismantling / Modular (for deep cleaning)

• Material: High-Carbon Surgical Stainless Steel

Clinical & Operational Advantages

• Atraumatic Organ Handling: The broad surface area of the fan blades prevents the "point-loading" and parenchymal injury associated with using standard graspers for retraction.

• Bariatric-Ready Depth: The 44.5 cm shaft is approximately 35% longer than standard instruments, providing essential access to the upper hiatus or deep pelvis in patients with a high BMI.

• Superior Visualization: The slim 5mm shaft minimizes the "footprint" in the surgical field, while the fan blades provide a massive retraction-to-trocar-size ratio.

• Storz Precision Engineering: Features the legendary German mechanical smoothness, ensuring the fan opens and closes without "stuttering" or mechanical binding.

Condition

• Status: Used – Usable Condition (USED-SI).

• Functional Assessment: The fan mechanism deploys smoothly and retracts fully into the sheath. The dismantling lock is secure and functions as intended. The blades are straight and align perfectly.

• Cosmetic Status: Shows visible signs of normal clinical usage, including light surface scuffs, minor scratches on the stainless steel, and typical sterilization-related patina. These are purely cosmetic and do not impact the mechanical performance or the structural integrity of the retractor.

• Reprocessing Note: This instrument is provided non-sterile. It must be professionally cleaned and autoclaved per your facility's validated Bariatric/Laparoscopic protocols prior to clinical use.

Warranty

• ✔ Primis "Perfect-Deploy" Guarantee

  We guarantee the Karl Storz 30623F to have a fully functional fan mechanism and a clear, unobstructed internal track. If the fan fails to deploy or retract smoothly upon arrival, Primis Medical will provide a full refund or replacement.

What’s Included

• (1) Karl Storz 30623F 5mm Fan Retractor (44.5 cm)

Shipping

• Fast and secure shipping.

• Ships within 1 business day.

• Packaged in a specialized reinforced shipping tube to ensure the 17-1/2 inch rigid shaft and delicate fan blades arrive in ready-to-process condition.
