Karl Storz 90X0667 SC-WK32-G1B00 32" 4K Surgical Monitor

Karl Storz 90X0667 SC-WK32-G1B00 32" 4K Surgical Monitor 90 Day Warranty

Karl Storz

• Model: SC-WK32-G1B00
• Part Number: 90X0667
• 4K 32" Monitor

• Condition: Used

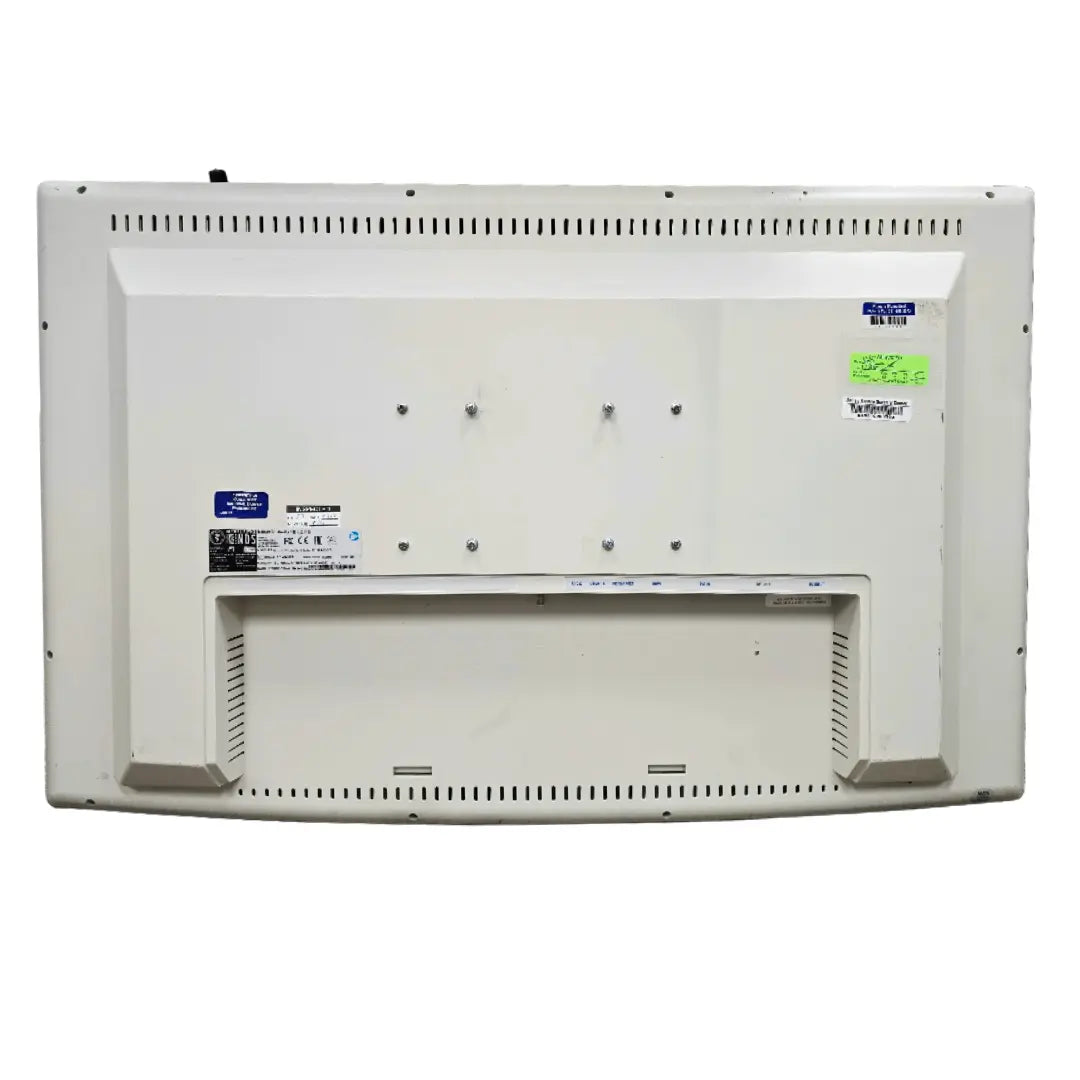

The Karl Storz 32-inch 4K surgical monitor (model SC-WK32-G1B00, part 90X0667, serial 17-282601) delivers UHD 3840×2160 resolution in a compact OR-grade chassis. The housing has a sealed, easy-to-clean front and a VESA mount pattern for flexible installation. Overall dimensions are about 760.8 × 463.8 × 91.6 mm and the unit weight is ~13.2 kg.

Image performance targets clinical visualization: 16:9 aspect ratio, ~1350:1 contrast, and ~700 cd/m² brightness with wide 178° viewing for 2D. The panel and electronics are tuned for true 4K signal paths to maintain detail, color fidelity, and motion stability across typical endoscopic and surgical video feeds.

Connectivity is OR-friendly: 12G-SDI in/out, DisplayPort 1.2, HDMI 2.0, DVI-D in/out, plus RS-232C and RJ-45 control interfaces. AC input is 100–240 V, 50/60 Hz. The rear I/O panel is laid out for quick cable management and pass-through where needed, and the monitor supports picture-in-picture/picture-by-picture depending on configuration.
