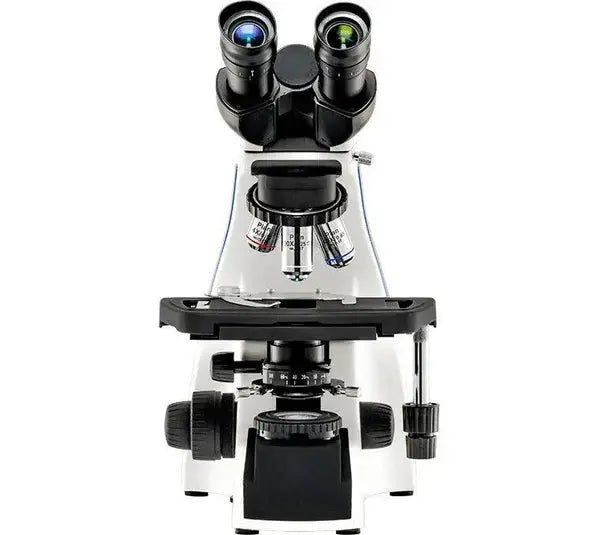

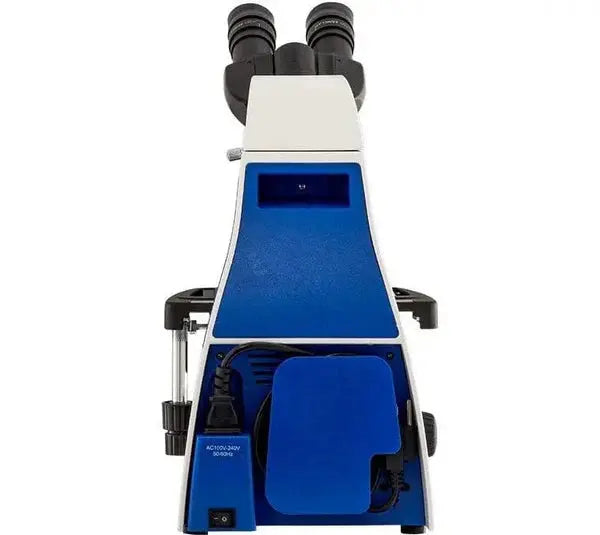

LW Scientific Innovation Biological Microscope Binocular & Trinocular Microscope

LW Scientific Innovation Biological Microscope Binocular & Trinocular Microscope

LW Scientific

• LW Scientific Innovation Biological Microscope Binocular and Trinocular Microscope (4 and 5 objectives)

Models Available:
iNM-B04A-iPL3- 4 Objectives
iNM-B05A-iPL3- 5 Objectives
iNM-T04A-iPL3- 4 Objectives
iNM-T05A-iPL3- 5 Objectives

• Condition: New

Optics & Imaging

• Infinity Plan Objectives: Sharp, flat-field, high-contrast images across the entire field of view.
• 4-objective model: 4x, 10x, 40x, 100x (oil) – ideal for clinical use.
• 5-objective model: 4x, 10x, 20x, 40x, 100x (oil) – better for research/cytology.
• Optional 50x oil objective for highest resolution and wider field than 100x.
• 10x/22mm eyepieces: Extra-wide view, glasses-friendly, with built-in diopter adjustment.

Mechanical & Frame Design

• Siedentopf head: 30° incline, 360° rotation, adjustable for interpupillary distance.

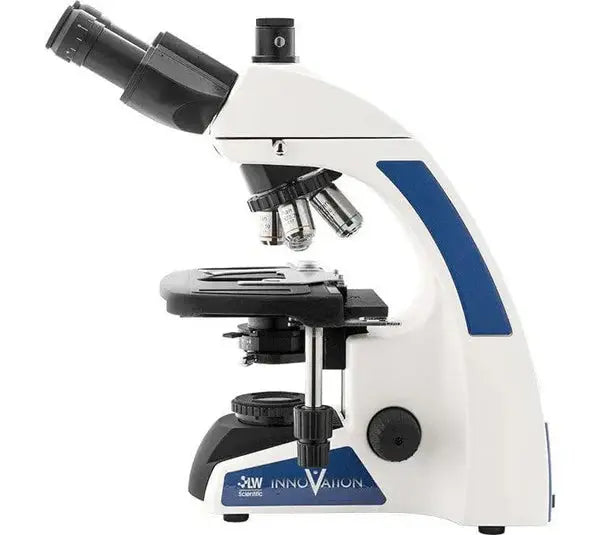

• Trinocular model: Includes both C-mount and eyetube camera ports.

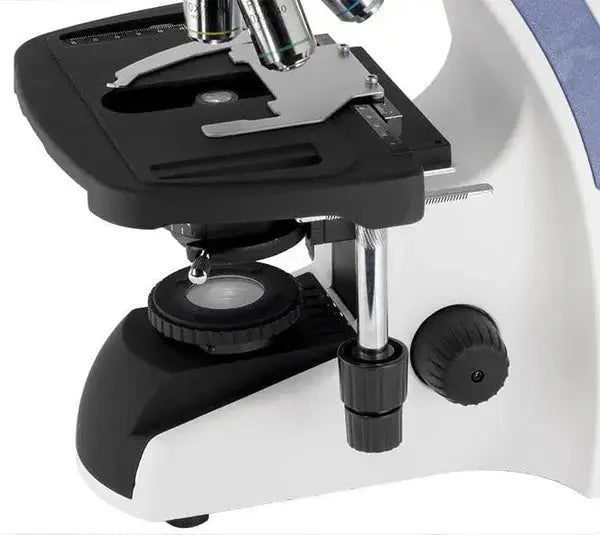

• Graphite-coated stage: Rackless, durable, holds 2 slides, belt-driven for smooth motion.
• Ergonomics: Low controls, wide base, rubber feet, built-in cord wrap and carry handle.

Illumination & Condenser

• LED light: Bright, cool, daylight-color with 50,000-hour lifespan.
• ABBE condenser (NA 1.25) with iris diaphragm and Kohler illumination for enhanced clarity and contrast.



BioVIEW Camera System (Optional)

• BioVID HD1080+ Camera + 11.6” HD Monitor:


• 1920x1080 resolution, 60fps video
• HDMI, USB, and SD card support
• Ideal for live demonstrations, teaching, client education, and documentation
• Excellent in both brightfield and low-light (darkfield, phase contrast, epi-fluorescence)

Applications

• Clinical: Cytology, Hematology, Pathology, Oncology, Semen analysis
• Educational: Research, Teaching, Presentations
• Industrial: Manufacturing inspections
• Dental and Veterinary labs

Specifications

• Eyepieces: 10x/22mm (30mm tube), optional 15x/16mm
• Objectives: 4x to 100x (oil), with optional 50x oil and 60x dry
• Stage size: 216mm x 150mm | Travel: 75mm x 55mm
• Fine focus: 0.001mm precision | Coarse focus: 18mm range
• Dimensions: 16”H x 15”L x 8.5”W | Weight: 14.2 lbs (6.4 kg)
• Packaging: 21 lbs in box; optional hard carry case (15 lbs)

Key Benefits

• Premium optical performance with research-level clarity
• Durable, ergonomic design for daily lab use
• Highly adaptable with camera options and add-ons
• Backed by Manufacterer lifetime warranty on optical and mechanical components.
