Mindray 0010-20-42702 5-Lead ECG Trunk Cable & Lead Set

Mindray 0010-20-42702 5-Lead ECG Trunk Cable & Lead Set

• Model: 0010-20-42702

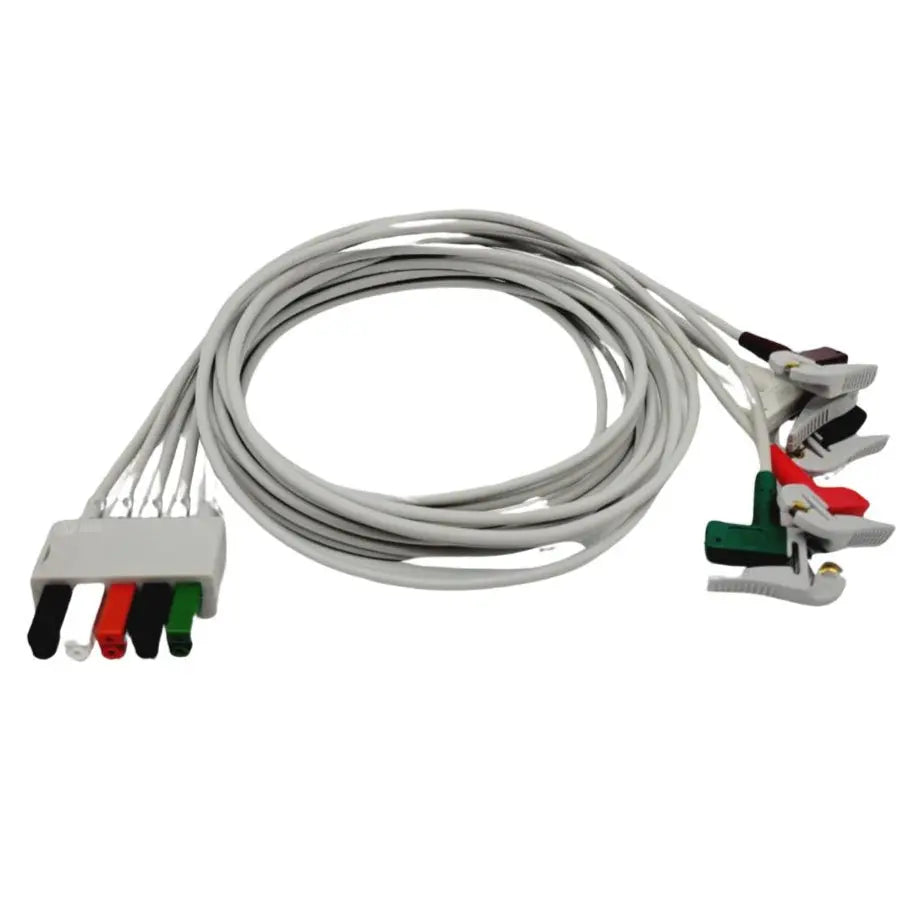

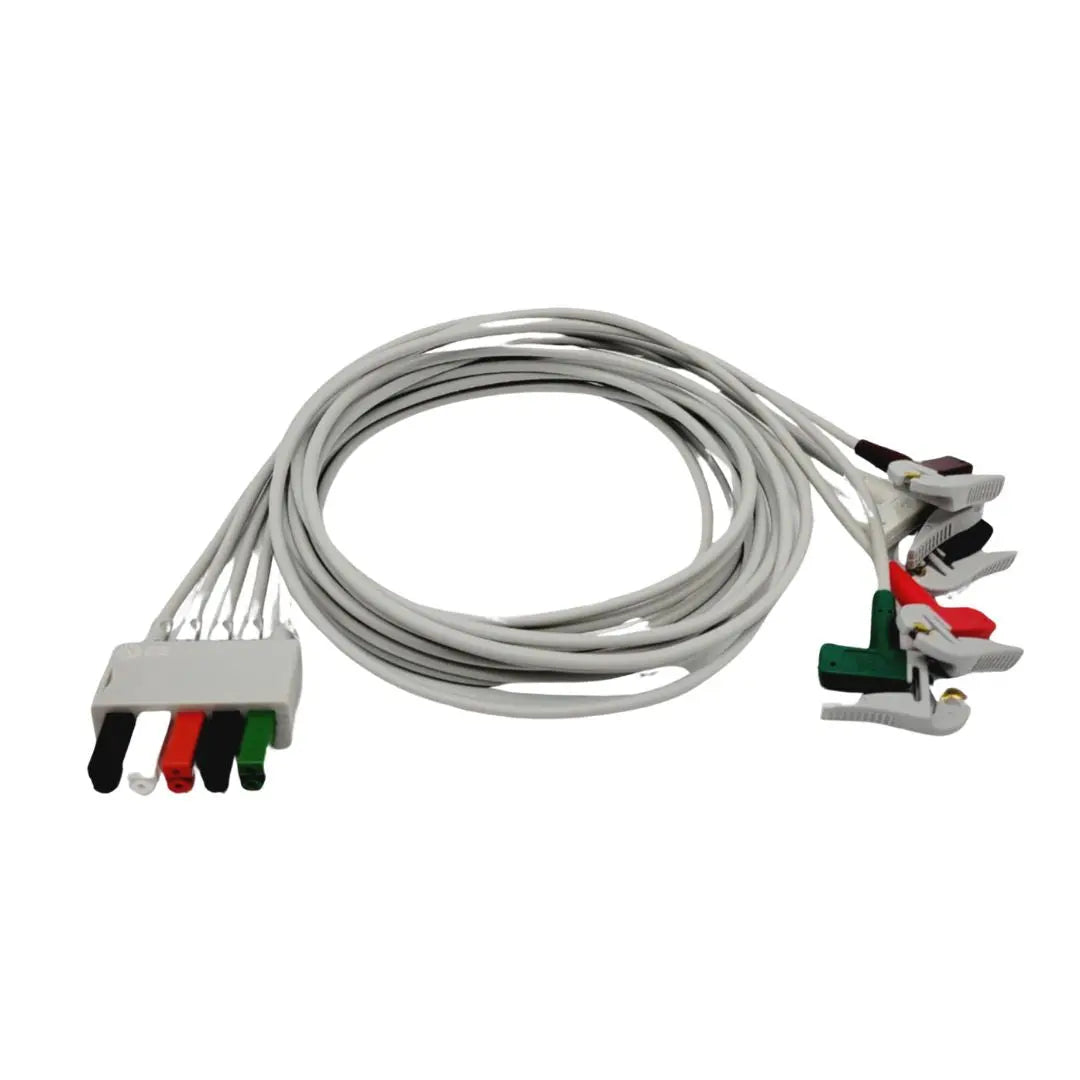

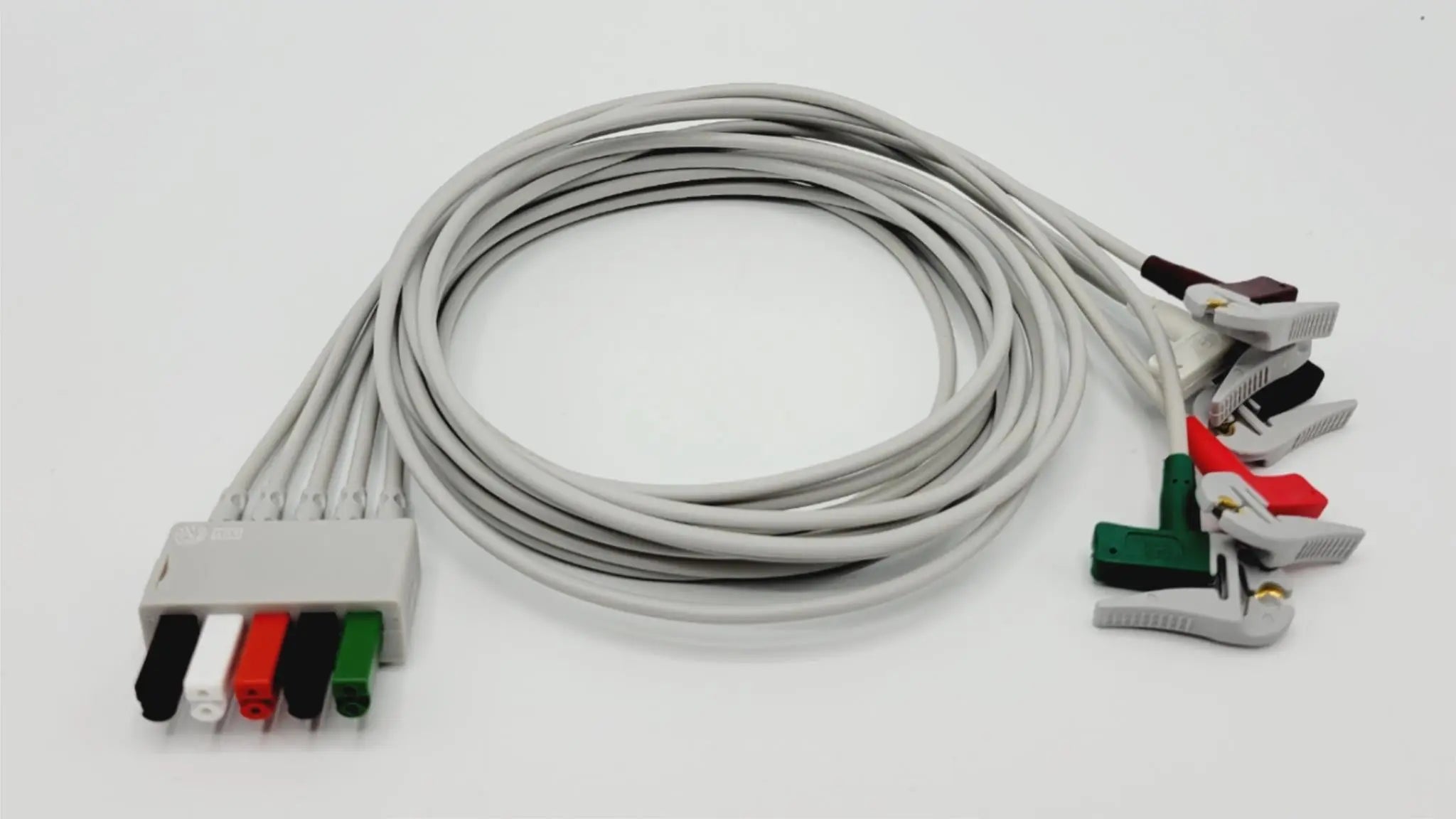

This 5‑lead ECG trunk cable & lead set from Mindray is a carefully engineered component designed to deliver reliable cardiac monitoring signals in clinical settings. The set connects the patient to the monitor via five separate electrode leads, conforming to standard AHA/IEC color coding, so that the limb and chest electrode placement is clearly indicated. The leads are designed for adult and pediatric use, making them versatile across different patient populations. The cable jacket, usually made from a flexible TPU (thermoplastic polyurethane), provides both durability and comfort, resisting kinks, bending fatigue, and typical wear in a hospital environment, while being latex‑free to minimize allergenic risk.

Mechanically, the trunk end uses a keyed multi‑pin connector (often round, sometimes 12‑pin or similar, depending on model) that mates securely with compatible Mindray (or Datascope) monitors; the patient end uses lead connectors (twin‑pin, snap‑type, etc.) that attach to electrodes on the skin. The cable is typically about 8 feet (≈2.5 meters) in total length, long enough to allow comfortable positioning of patient and monitor without pulling but short enough to avoid excessive slack. The cross‑section (diameter) of the trunk is robust (around 5 mm in many models), with individual lead wires somewhat thinner; all are shielded within the jacket to reduce interference and maintain signal fidelity.

In terms of safety, regulatory/quality assurance, this type of cable set is made to standards for medical devices: compliance with FDA, CE marking, RoHS (Restriction of Hazardous Substances), and ISO standards for biocompatibility (e.g. ISO 10993) are typical. The set is non‑sterile but reusable after proper cleaning/disinfection, weighted such that handling is manageable but still solid—manufacturers often provide a warranty period (6 months is common) against defects. Its design aims to maintain accurate ECG waveform transmission while being rugged enough for daily clinical use.

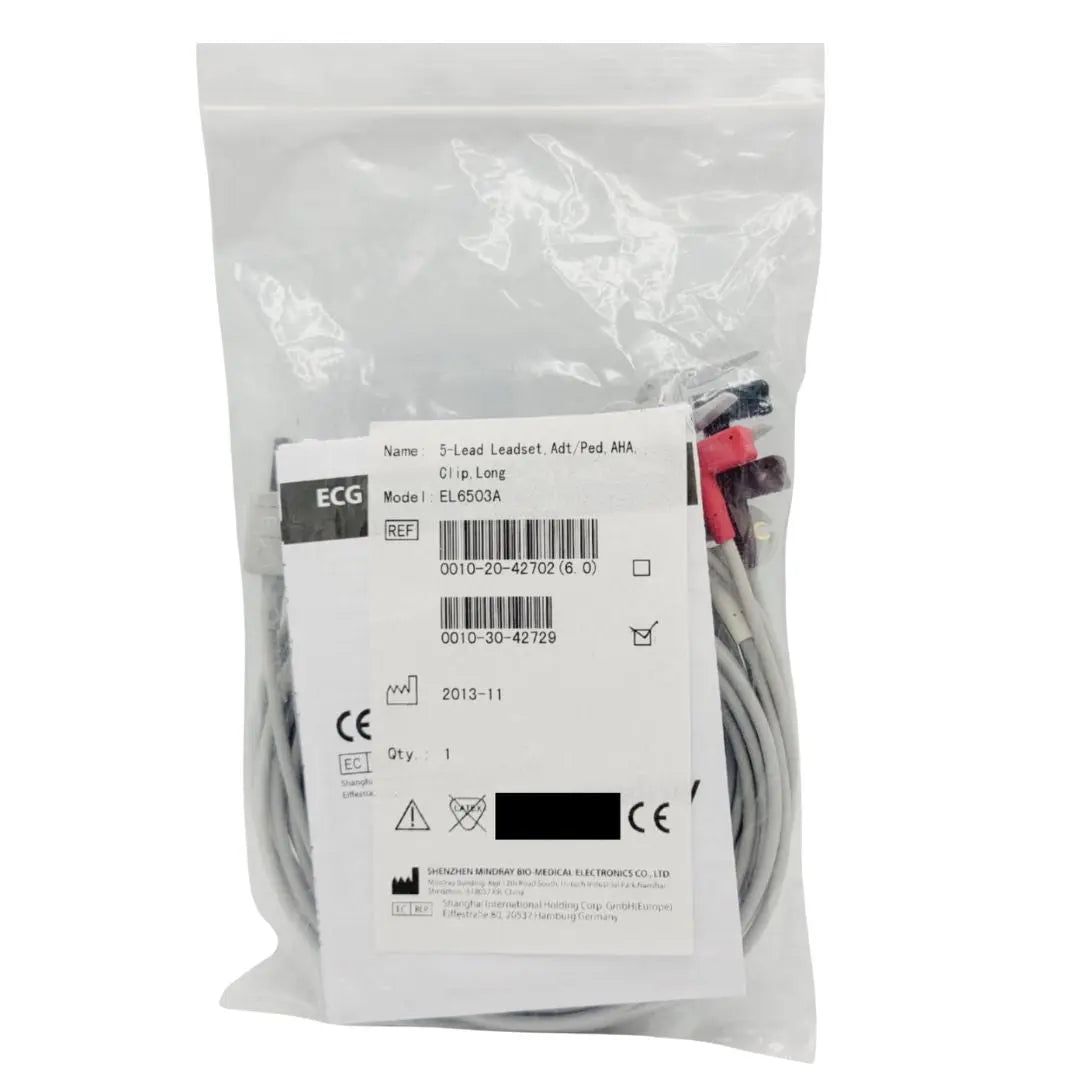

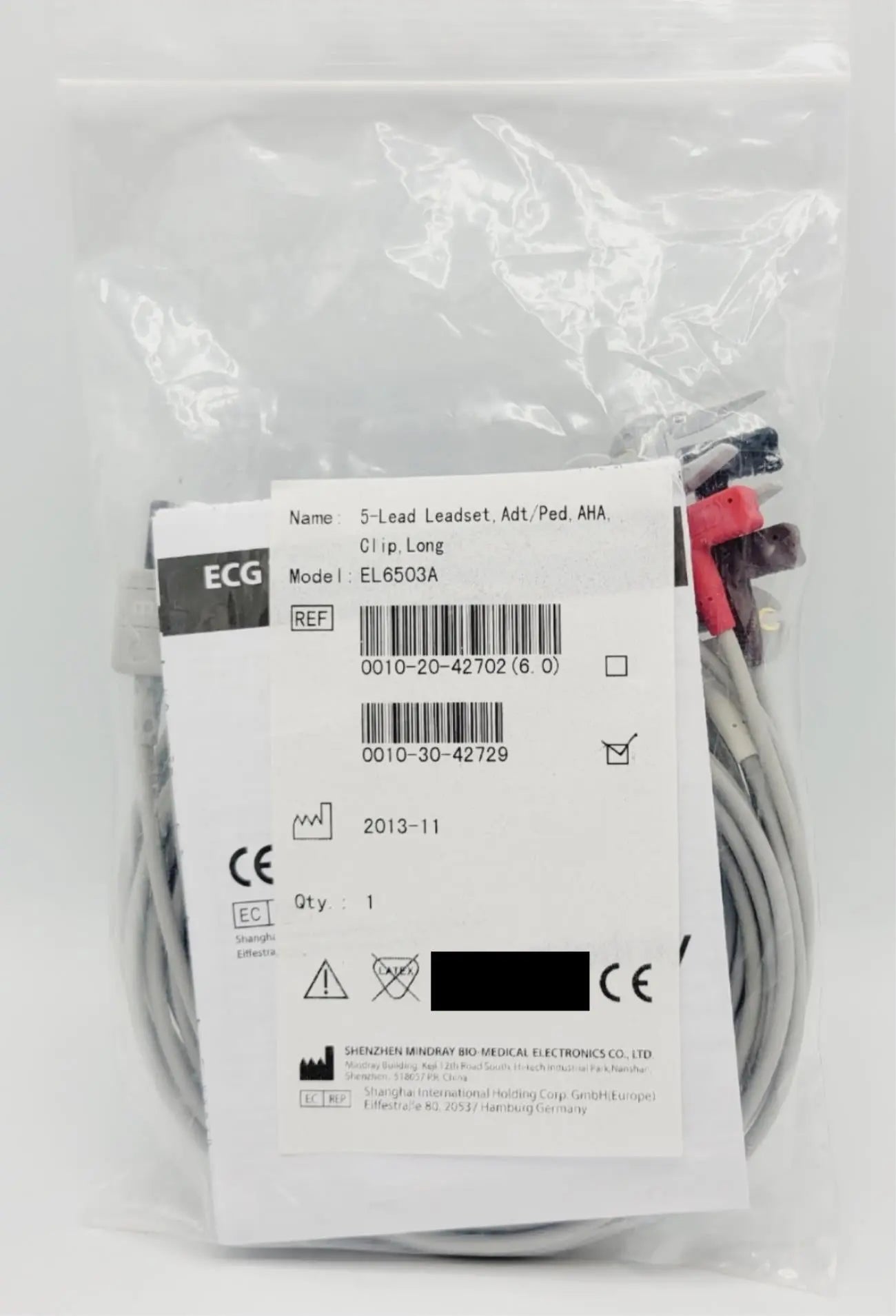

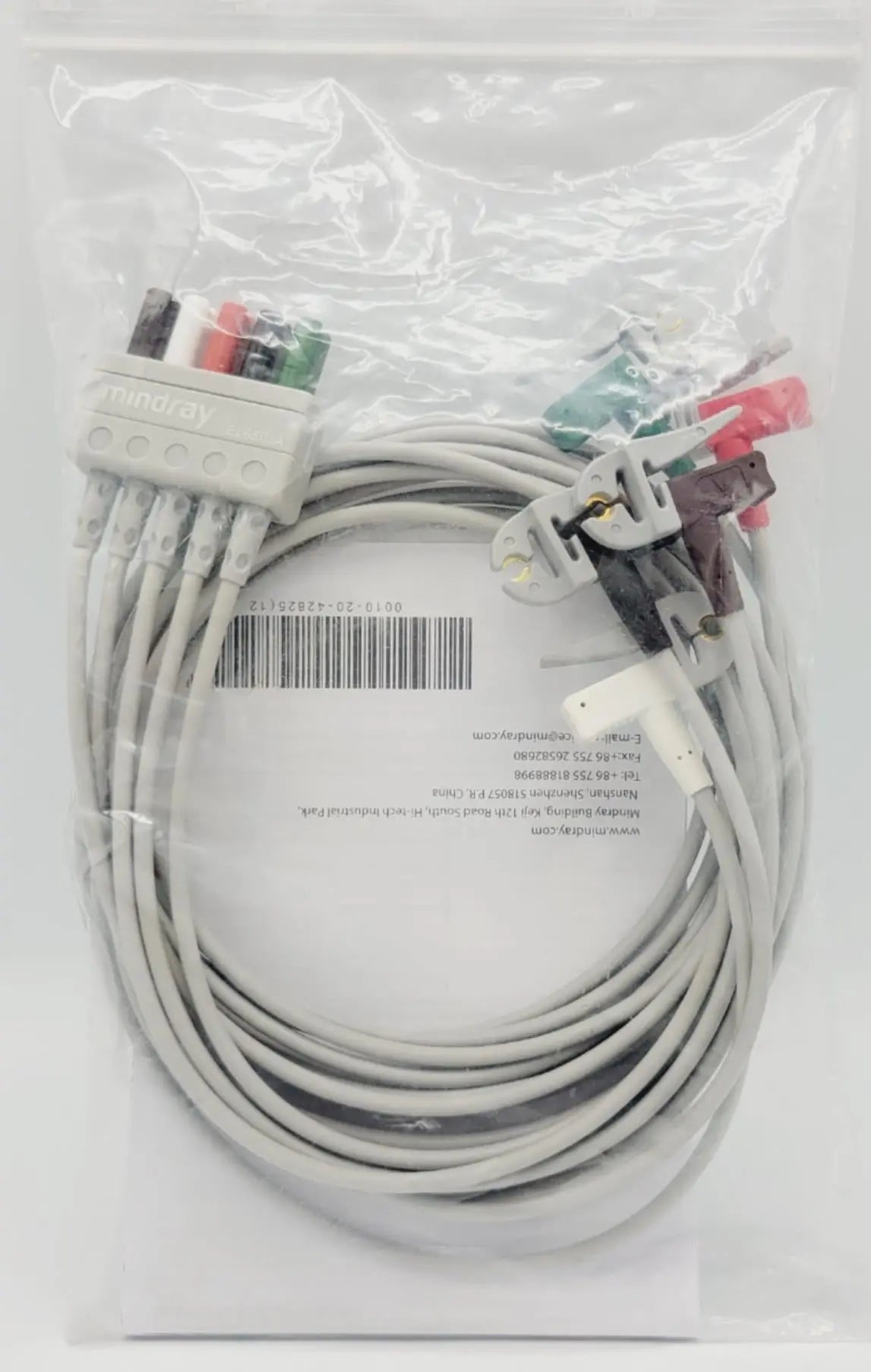

This medical supply or implant item is securely packaged within its original manufacturer's packaging, which remains undamaged. The inner packaging is sterile, ensuring the product's integrity and suitability for medical use.
