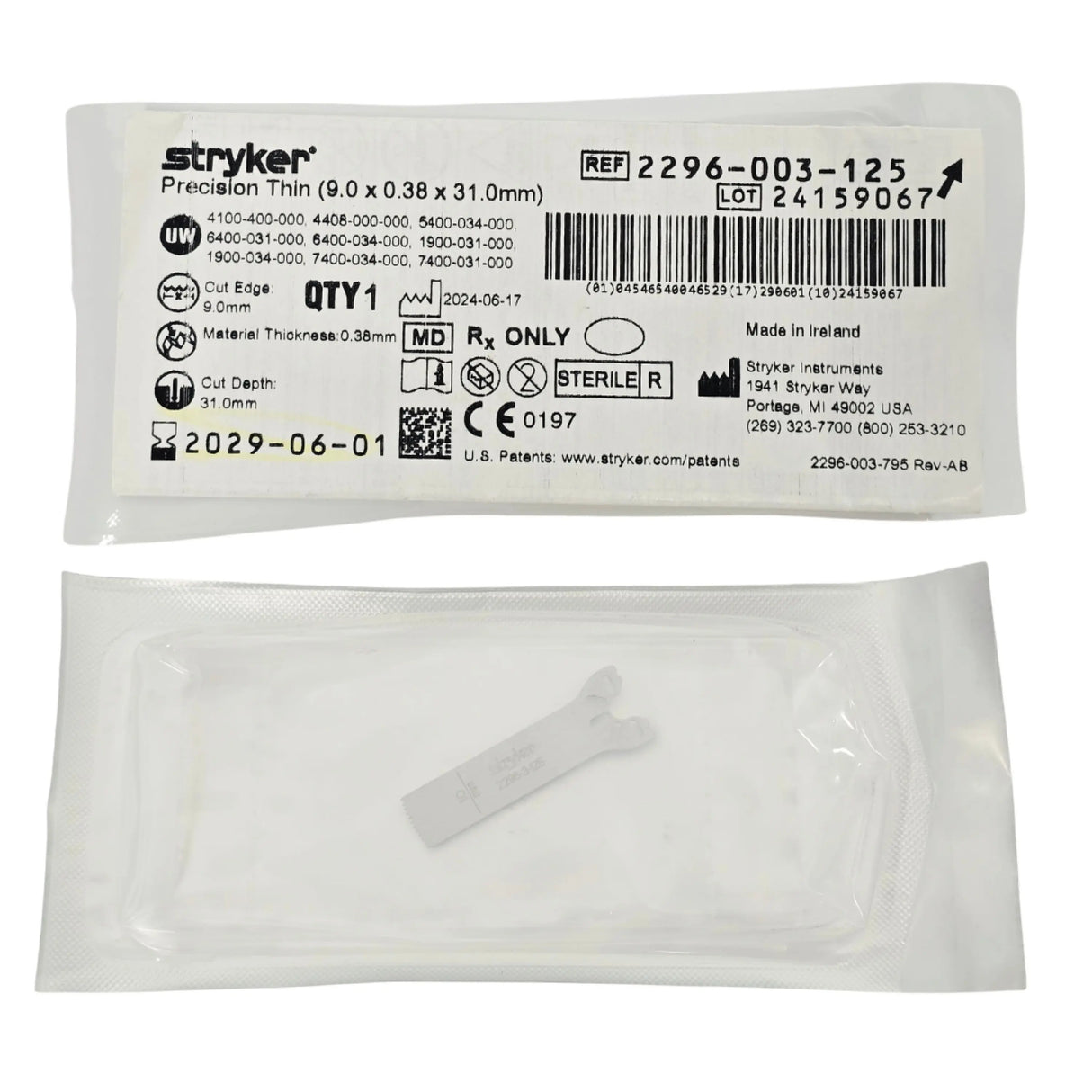

Stryker 2296-003-125 Precision Thin Sagittal Saw Blade Medium Long 31 mm x 9 mm x 0.38 mm

Stryker 2296-003-125 Precision Thin Sagittal Saw Blade Medium Long 31 mm x 9 mm x 0.38 mm

Featuring a 31.0 mm effective cutting depth, a 9.0 mm cutting blade width, a ultra-thin 0.38 mm material thickness, and a 0.43 mm kerf cut thickness, this fine-tooth component is designed to deliver minimal material kerf displacement, high directional stability, and reduced thermal generation during high-frequency oscillation. Precision-machined from surgical-grade stainless steel with a radial fine-tooth edge profile, it mounts directly into compatible Stryker micro-powered oscillating and sagittal saw handpiece attachments. It serves as an ideal component for mechanical resection testing, synthetic bone sectioning analysis, tool coupling alignment studies, and technical laboratory demonstrations.

Technical specifications

• Brand: Stryker
• Reference / model: 2296-003-125
• Size: Class / Profile: Medium Long
• Material: Blade Thickness: 0.38 mm
• Material: Composition: High-Grade Surgical Stainless Steel
• Dimensions / sizes: 31 mm x 9 mm x 0.38 mm

Additional product details

• Brand / Manufacturer: Stryker® Orthopaedics / Instruments
• Part / Catalog Number: 2296-003-125 (also referenced as 2296-3-125)
• Product Line: Precision™ Thin Sagittal Saw Blade Series
• Cutting Depth / Length: 31.0 mm
• Cutting Edge Width: 9.0 mm
• Cut / Kerf Width Thickness: 0.43 mm
• Tooth Profile: Fine Tooth / Radial Edge Design
• Handpiece System Compatibility: Stryker® Micro Oscillating and Sagittal Saw Systems (TPS™, CORE, RemB™, Command 2, and related micro-power attachments)
• Quantity Included: 1 Unit per Sealed Package (or per selected listing variation)
• Unit of Measure: 1 Each (1/EA)
• Application: Resection kerf analysis, synthetic bone sectioning, mechanical power tool testing, cutting force calibration, and laboratory demonstration
• Ultra-thin 0.38 mm blade profile produces a narrow 0.43 mm kerf, maximizing material retention and cutting accuracy
• Radial fine-tooth geometry delivers smooth, low-vibration cutting performance under high-speed oscillation
• 31.0 mm working depth provides extended reach into narrow or recessed substrate testing channels
• Hardened stainless steel construction resists bending, tooth deflection, and thermal fatigue during continuous operation

Condition

Condition: Brand New — Unused, factory sealed in original sterile blister packaging.
