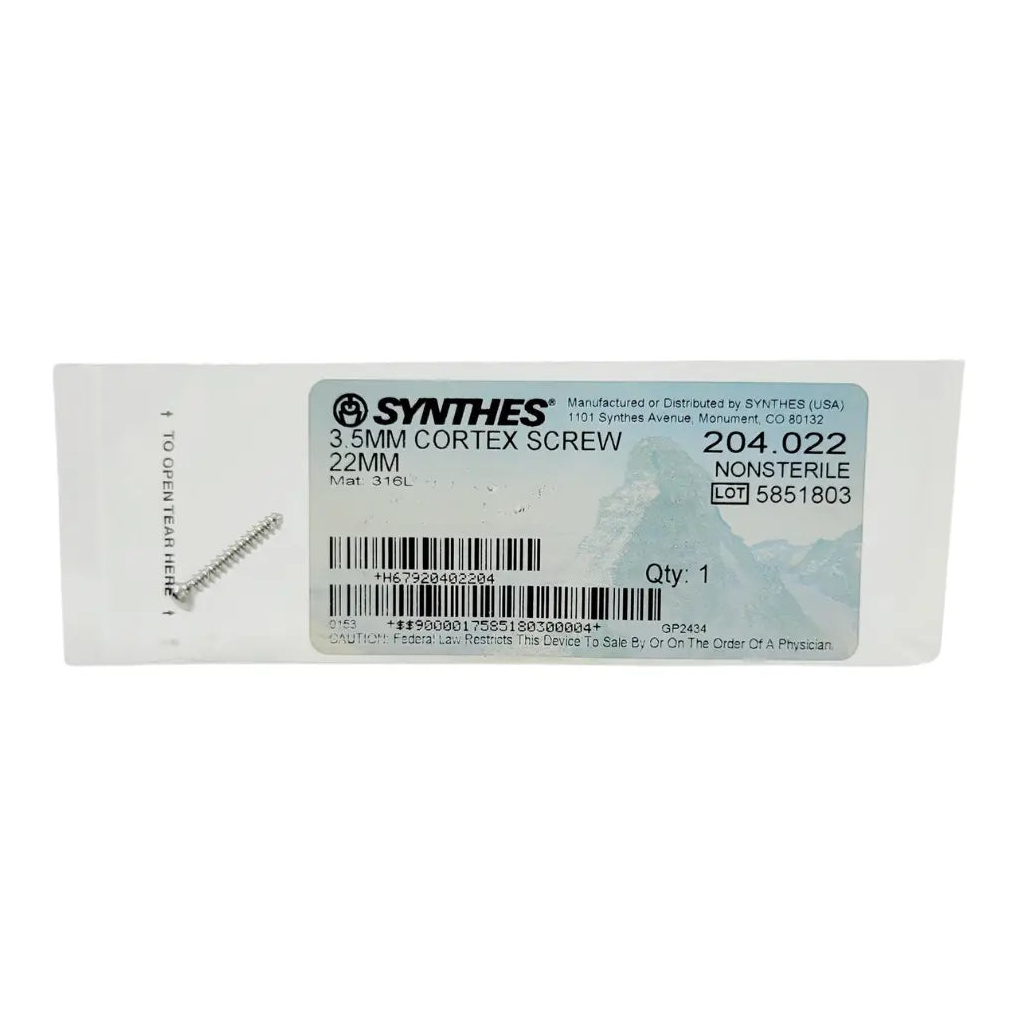

Synthes 204.022 Cortex Screw 3.5mm x 22mm 1/EA

Synthes 204.022 Cortex Screw 3.5mm x 22mm 1/EA

The Synthes 204.022 is a foundational internal fixation implant designed for secure anchorage in dense cortical bone. As a 3.5mm diameter screw with a 22mm length, it is a core component of the Synthes Small Fragment System. This screw is engineered to provide maximum stability in diaphyseal bone, making it a primary choice for treating fractures of the forearm, fibula, and small fragments of the humerus and tibia.

Technical specifications

• Brand: Synthes
• Reference / model: 204.022
• Model: / REF: 204.022
• Material: 316L Stainless Steel (Surgical Grade)
• Dimensions / sizes: 3.5mm x 22mm

Additional product details

• Manufacturer: Synthes (DePuy Synthes)
• Screw Diameter: 3.5 mm
• Thread Profile: Fully Threaded (Cortical Pitch)
• Screw Length: 22 mm
• Core Diameter: 2.4 mm
• Head Type: 2.5 mm Hexagonal Socket
• Quantity: Individually Packaged, Sterile
• High-Torque Hex Drive: The 2.5mm hexagonal recess is designed to transmit the significant torque required to seat the screw into dense bone without the risk of "cam-out" or stripping the screw head.
• Low-Profile Spherical Head: The head geometry is precisely engineered to sit flush within the counter-sunk holes of Synthes DCP (Dynamic Compression Plates), LC-DCP (Limited Contact), and LCP (Locking Compression Plates) systems.
• 316L Stainless Steel Biocompatibility: Cold-worked for high fatigue strength, the material is biologically inert and designed to withstand the cyclic loads of functional rehabilitation.
• Trauma Surgery: Fixation of diaphyseal fractures in the radius, ulna, and fibula.
• Plate Fixation: Serving as a "neutralization" or "compression" screw when used through 3.5mm small fragment plating systems.
• Malleolar Fixation: Stabilization of lateral malleolus fractures where 22mm of depth provides sufficient bicortical purchase.
• Pelvic Reconstruction: Use in small-fragment pelvic sets for the stabilization of specific acetabular or pelvic ring fractures.
• Status: NEW — Factory Sealed & Sterile.
• Integrity: This implant is securely packaged within its original manufacturer's sterile peel-pouch. The packaging is intact, ensuring the product's sterility, material integrity, and full lot traceability for clinical implantation in 2026.

Condition

New.
