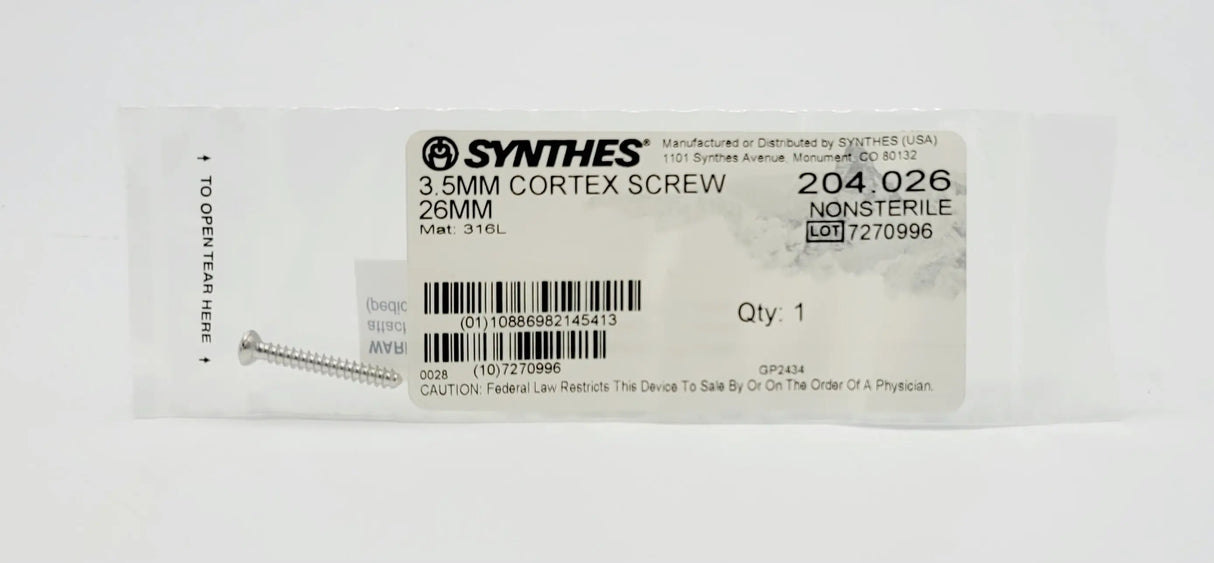

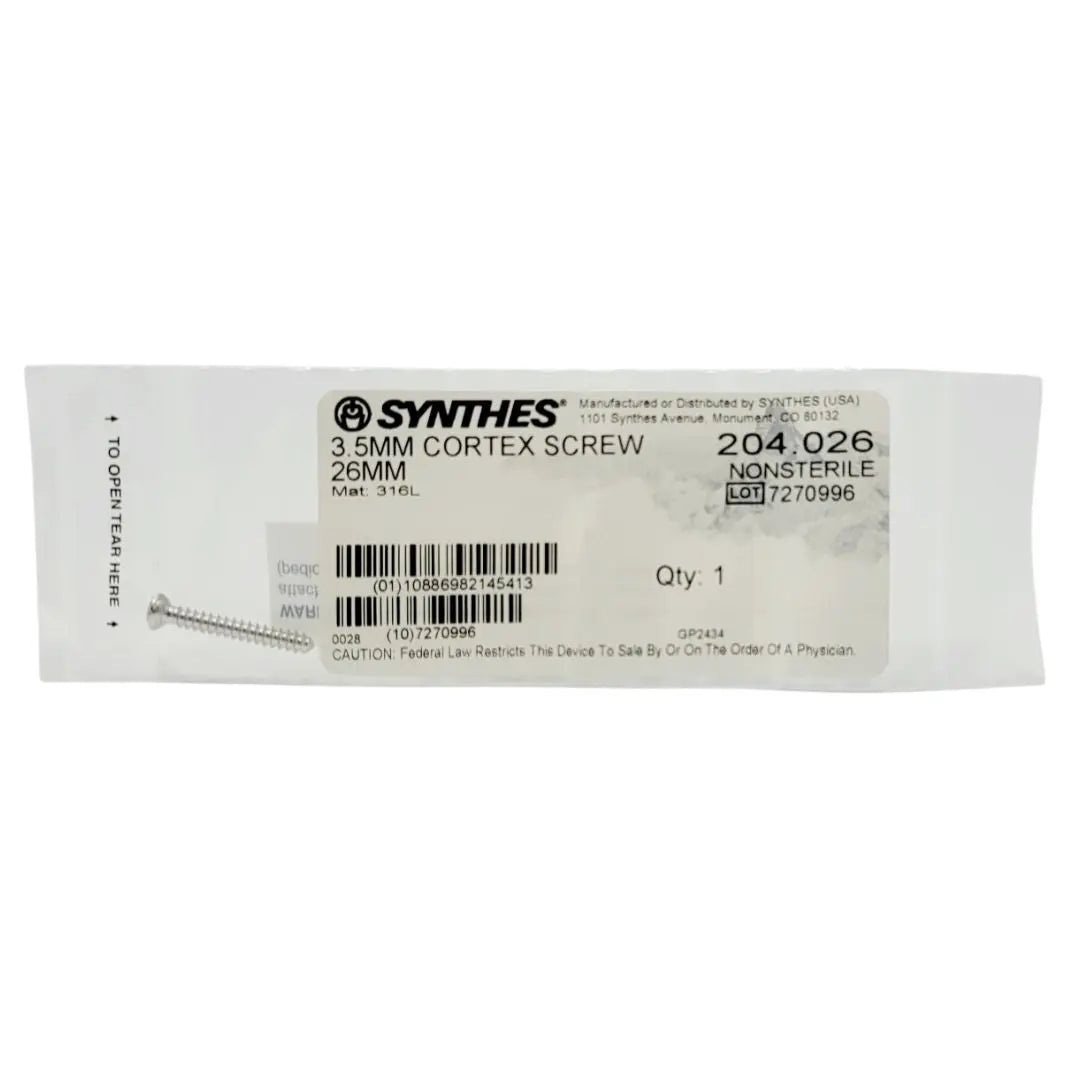

Synthes 204.026 3.5mm cortex screw 26mm orthopedic hardware

Synthes 204.026 3.5mm cortex screw 26mm orthopedic hardware

The Synthes 204.026 is a foundational internal fixation implant designed for secure anchorage in dense cortical bone. As a 3.5mm diameter screw with a 26mm length, it is a core component of the Synthes Small Fragment System. This screw is engineered to provide maximum structural stability in diaphyseal bone, making it the primary choice for treating fractures of the forearm (radius/ulna), fibula, and specific fragments of the humerus.

Technical specifications

• Brand: Synthes
• Reference / model: 204.026
• Model: / REF: 204.026
• Material: 316L Stainless Steel (Surgical Grade)
• Dimensions / sizes: 3.5mm, 26mm

Additional product details

• Manufacturer: Synthes (DePuy Synthes)
• Screw Diameter: 3.5 mm
• Thread Profile: Fully Threaded (Standard Cortical)
• Screw Length: 26 mm
• Thread Pitch: 1.25 mm
• Core Diameter: 2.4 mm
• Head Type: 6.0 mm Head with 2.5 mm Hexagonal Socket
• Quantity: Individually Packaged, Sterile
• High-Torque Hex Drive: The 2.5 mm hexagonal recess is engineered to transmit the significant torque required to seat the screw into dense bone without the risk of "cam-out" or stripping the screw head.
• Low-Profile Spherical Head: The head geometry is precisely calibrated to sit flush within the counter-sunk holes of Synthes DCP (Dynamic Compression Plates), LC-DCP (Limited Contact), and LCP (Locking Compression Plates) systems.
• 316L Stainless Steel Biocompatibility: Cold-worked for high fatigue strength, the material is biologically inert and designed to withstand the cyclic loads encountered during the early stages of functional rehabilitation.
• Trauma Surgery: Fixation of diaphyseal fractures in the radius, ulna, and fibula.
• Plate Fixation: Serving as a "neutralization" or "compression" screw when used through 3.5 mm small fragment plating systems.
• Malleolar Fixation: Stabilization of lateral malleolus fractures where 26 mm of depth provides sufficient bicortical purchase.
• Pelvic Reconstruction: Use in small-fragment pelvic sets for the stabilization of specific acetabular or pelvic ring fractures.
• Status: NEW — Factory Sealed & Sterile.
• Integrity: This implant is securely packaged within its original manufacturer's sterile peel-pouch. The packaging is intact, ensuring the product's sterility, material integrity, and full lot traceability for clinical implantation in 2026.

Condition

New.
