Synthes 208.410 6.5mm Cannulated Screw 16mm Thread 75mm

Synthes 208.410 6.5mm Cannulated Screw 16mm Thread 75mm

The Synthes 208.410 is a robust internal fixation implant designed for high-load applications in large bone structures. As a 6.5mm diameter cannulated screw, it features a hollow central core that allows for precise placement over a pre-positioned 2.8mm guide wire.

Technical specifications

• Brand: Synthes
• Reference / model: 208.410
• Model: / REF: 208.410
• Material: 316L Stainless Steel (Surgical Grade)
• Dimensions / sizes: 6.5mm, 16mm, 75mm

Additional product details

• The 16mm Short Thread configuration is specifically engineered to create a powerful lag effect.
• Manufacturer: Synthes (DePuy Synthes)
• Screw Diameter: 6.5 mm
• Thread Profile: 16mm Short Thread (Partial)
• Screw Length: 75 mm
• Cannulation: Compatible with 2.8mm Guide Wires
• Head Type: 4.0mm Hexagonal Socket
• Quantity: Individually Packaged, Sterile
• Guide-Wire Precision: The cannulated design is essential for minimally invasive (percutaneous) techniques.
• Because the threads do not cross the fracture line in the proximal bone, the screw acts as a mechanical vice, pulling the distal bone toward the head.
• High-Torque Hex Drive: The 4.0mm hexagonal recess provides the structural integrity required to transmit the high torque levels necessary for deep insertion into the femoral or pelvic cortex without stripping.
• 316L Stainless Steel Biocompatibility: Forged for high fatigue resistance, this material is designed to withstand the significant cyclic loads associated with hip and pelvic fractures during the healing process.
• Hip Surgery: Fixation of femoral neck fractures (intracapsular) using a parallel "inverted triangle" screw configuration.
• Pelvic & Acetabular Trauma: Stabilization of sacroiliac (SI) joint disruptions and slipped capital femoral epiphysis (SCFE).
• Knee Surgery: Compression of large tibial plateau fractures or distal femoral condyle fractures.
• Arthrodesis: Large-joint fusions, including triple arthrodesis of the foot and ankle.
• Status: NEW — Factory Sealed & Sterile.

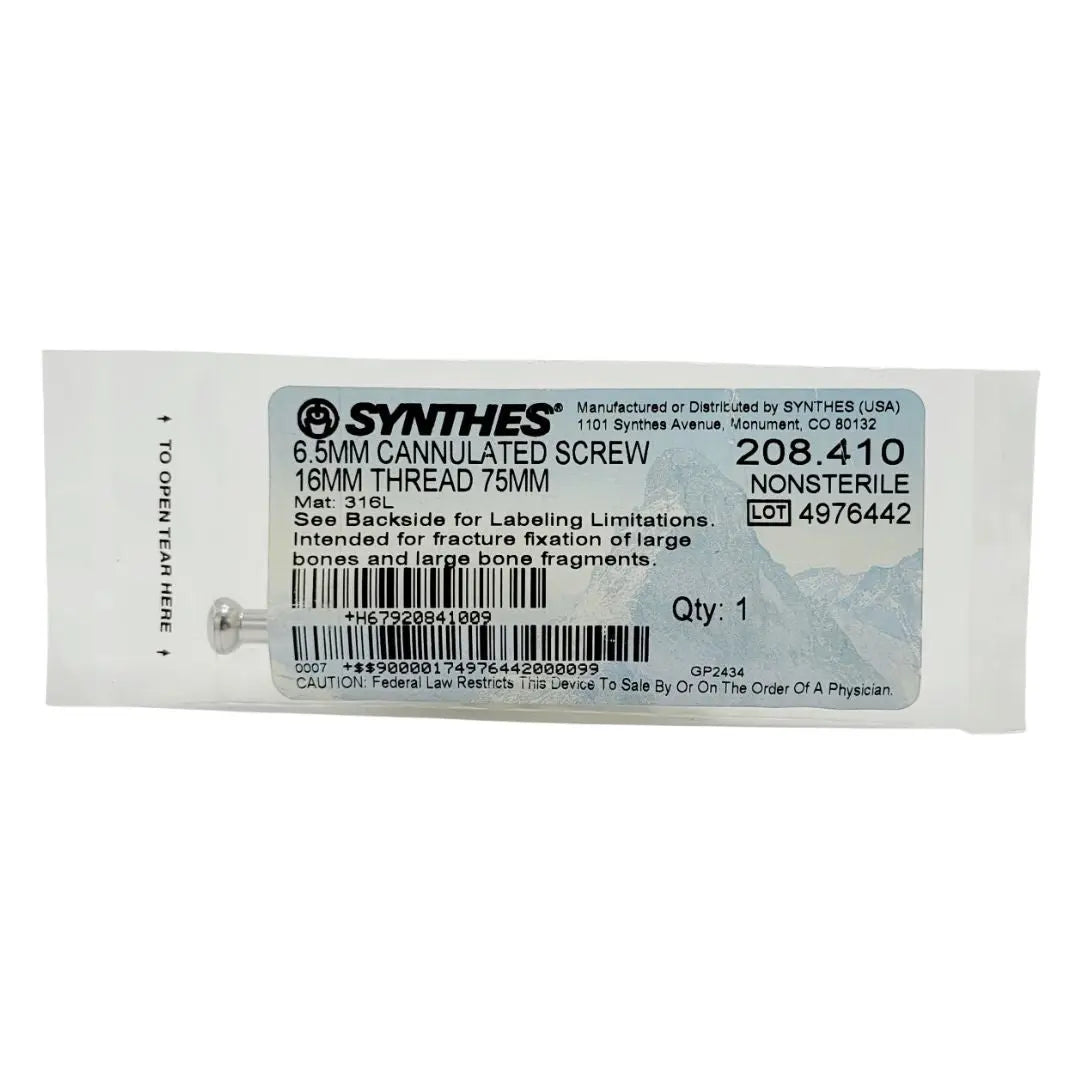

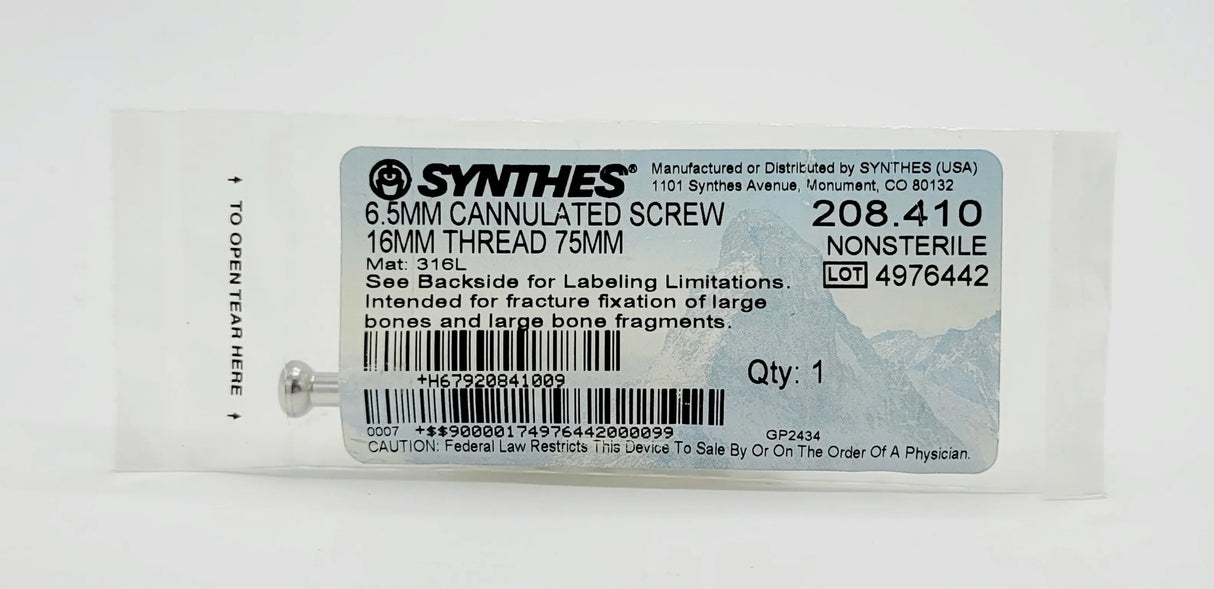

• Integrity: This implant is securely packaged within its original manufacturer's sterile peel-pouch. The packaging is intact, ensuring the product's sterility, material integrity, and full lot traceability for clinical use in 2026 and beyond.

Condition

New.
