Synthes 400.812.96 1.5mm Ti Cortex Screw Self-Tapping 12mm Orthopedic Hardware

Synthes 400.812.96 1.5mm Ti Cortex Screw Self-Tapping 12mm Orthopedic Hardware

At a 1.5mm diameter and 12mm length, it provides extended reach for bicortical fixation in the phalanges or the midface.

Technical specifications

• Brand: Synthes
• Reference / model: 400.812.96
• Model: / REF: 400.812.96
• Material: Titanium (Ti)
• Diameter: 1.5 mm
• Dimensions / sizes: 1.5mm, 12mm

Additional product details

• The self-tapping distal tip allows for direct insertion into a pre-drilled 1.1mm pilot hole, eliminating the need for a separate tapping step and streamlining the surgical workflow.
• Manufacturer: Synthes (DePuy Synthes)
• Length: 12 mm
• Thread Type: Self-Tapping / Fully Threaded
• Thread Pitch: 0.5 mm
• Core Diameter: 1.1 mm
• Head Diameter: 3.0 mm
• System Compatibility: 1.5mm Micro-Fragment / CMF Systems / Moderate Hand Systems
• Quantity: Individually Packaged, Sterile
• Its lightweight nature is critical in micro-fixation where excess hardware mass can impede functional recovery or tendon gliding.
• Extended Bicortical Reach: The 12mm length is specifically suited for reaching the far cortex in small bone structures, providing "two-point" fixation that significantly increases the stability of the construct against rotational forces.
• Ultra-Low Profile Head: The 3.0mm head is designed to sit flush within Synthes 1.5mm micro-plates (DCP/LC-DCP).
• Hand & Wrist Surgery: Bicortical fixation of small phalangeal fractures or metacarpal head fragments.
• Craniomaxillofacial (CMF): Stabilization of midface, orbital rim, and frontal sinus fractures.
• Pediatric Orthopedics: Precise fixation in pediatric small bone fractures where larger hardware would be anatomically obstructive.
• Podiatric Surgery: Fixation of delicate fractures in the toes and forefoot.
• Status: NEW — Factory Sealed & Sterile.

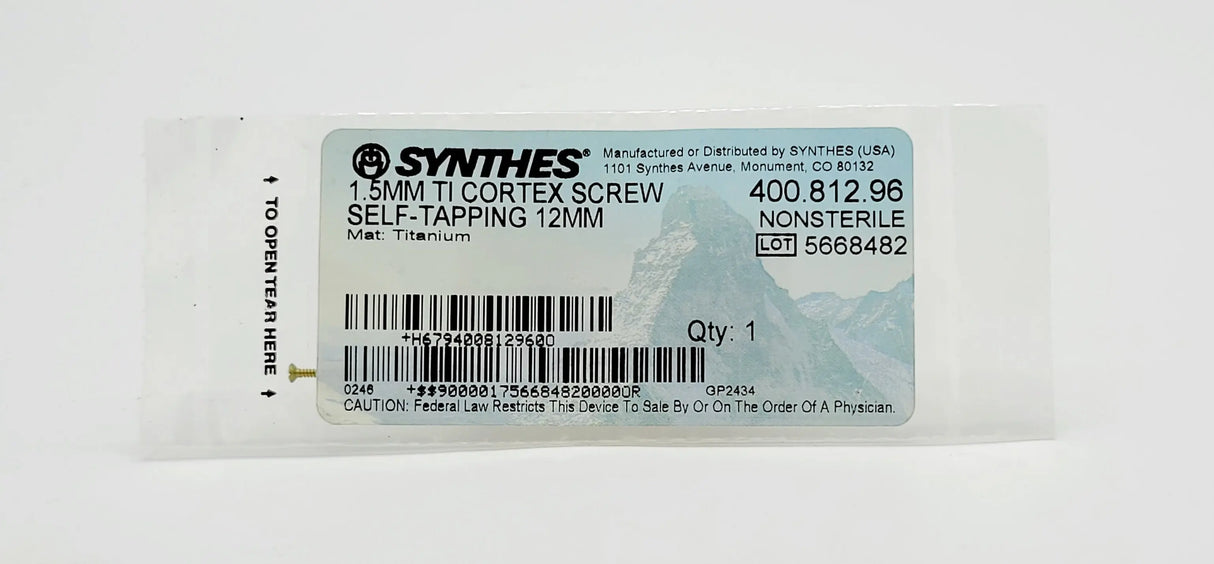

• Integrity: This implant is securely packaged within its original manufacturer's sterile peel-pouch. The packaging is intact, ensuring the product's sterility, material integrity, and full lot traceability for clinical implantation in 2026.

Condition

New.
