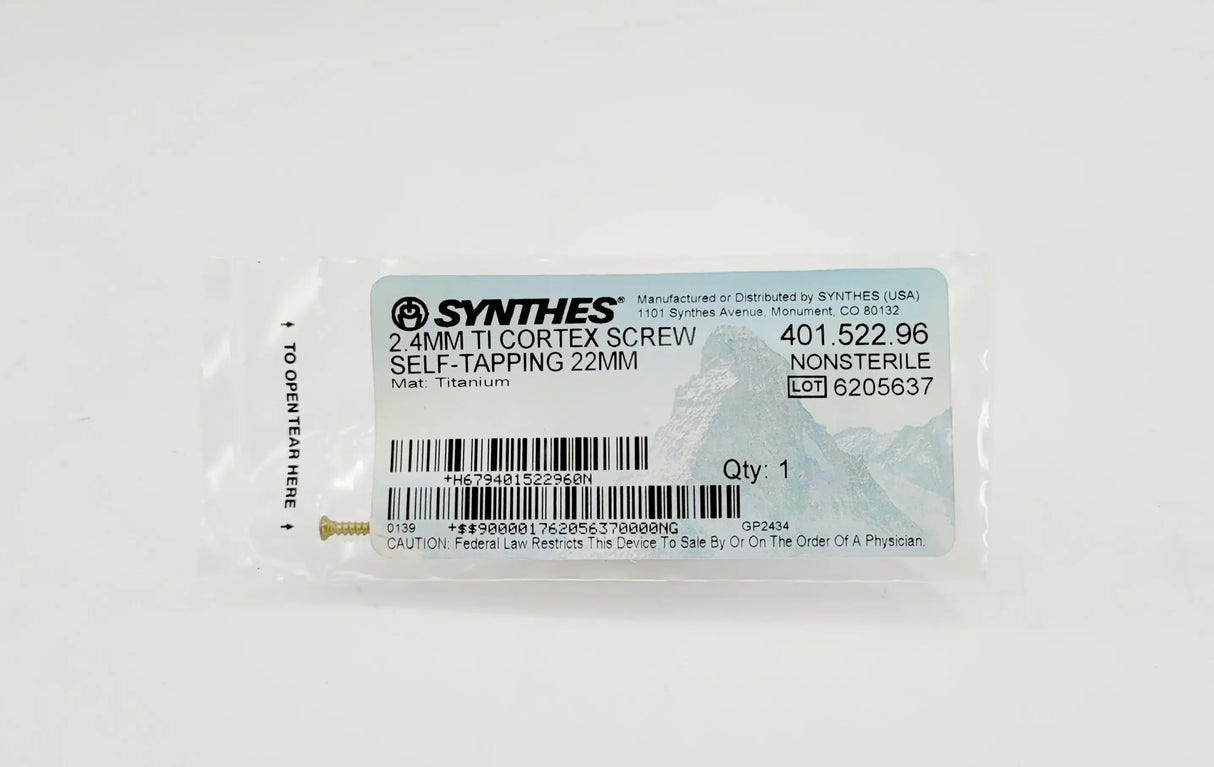

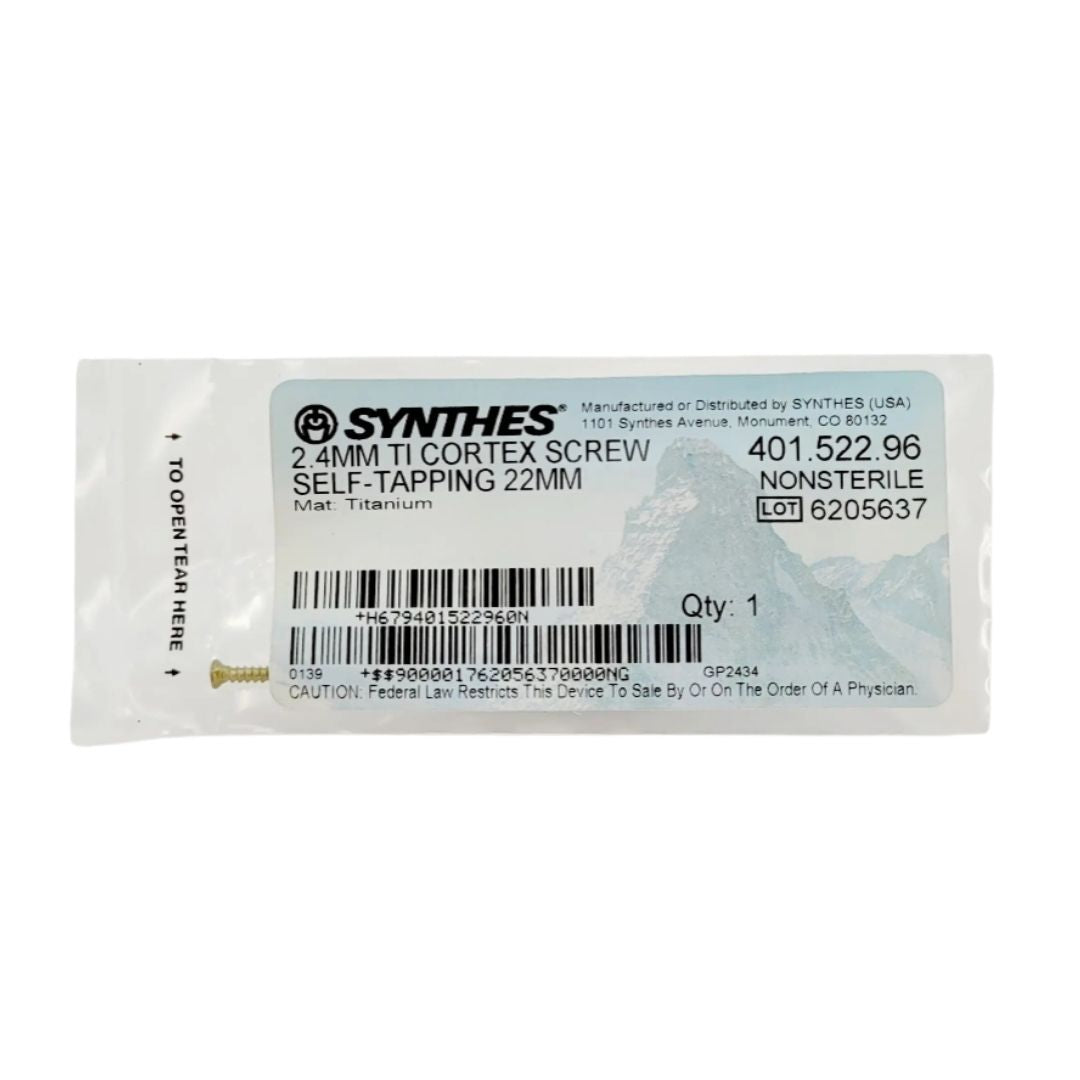

Synthes 401.522.96 2.4mm Ti cortex screw self-tapping 22mm orthopedic hardware

Synthes 401.522.96 2.4mm Ti cortex screw self-tapping 22mm orthopedic hardware

As a 2.4mm diameter screw with a 22mm length, it is a foundational component of the Synthes 2.4mm Modular Hand and Mandible Systems. This screw is specifically designed for procedures where 2.0mm hardware may lack sufficient shear strength, but 2.7mm hardware is anatomically too large.

Technical specifications

• Brand: Synthes
• Reference / model: 401.522.96
• Model: / REF: 401.522.96
• Material: Titanium (Ti)
• Diameter: 2.4 mm
• Dimensions / sizes: 2.4mm, 22mm

Additional product details

• Manufacturer: Synthes (DePuy Synthes)
• Length: 22 mm
• Thread Type: Self-Tapping / Fully Threaded
• Thread Pitch: 1.0 mm
• Core Diameter: 1.7 mm
• Head Diameter: 4.5 mm
• Drive Type: Cruciform Recess
• Quantity: Individually Packaged, Sterile
• Its lightweight properties are critical in hand and maxillofacial surgery, where excess hardware mass can interfere with functional recovery.
• Low-Profile Head: The 4.5mm head is designed to sit flush within Synthes 2.4mm plates.
• Hand & Wrist Surgery: Fixation of metacarpal shaft fractures and carpal fusions.
• Craniomaxillofacial (CMF): Stabilization of mandibular fractures and reconstructive bone grafting.
• Pediatric Orthopedics: Precise fixation in pediatric small bone fractures where larger hardware may be contraindicated.
• Forefoot Surgery: Stabilization of metatarsal osteotomies and midfoot fusions.
• Status: NEW — Factory Sealed & Sterile.
• Integrity: This implant is securely packaged within its original manufacturer's sterile peel-pouch. The packaging is intact, ensuring the product's sterility, material integrity, and full lot traceability for clinical implantation in 2026.

Condition

New.
