TERUMO 3SV-22BLK SURFLO WINGED INFUSION SETS - 22G x ", 12" Tubing, 50/bx, 10 bx/cs (US Only)

TERUMO 3SV-22BLK SURFLO WINGED INFUSION SETS - 22G x ", 12" Tubing, 50/bx, 10 bx/cs (US Only)

• Model: 3SV-22BLK
• Gauge/ Needle Size: 22 gauge
• Needle Length: ¾″ (0.75 inch)
• Tubing Length: 12 inches
• Box of 50
• 10 Boxes/ Case

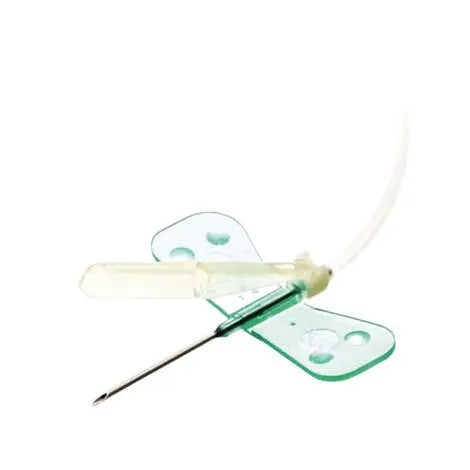

The TERUMO SURFLO 3SV‑22BLK Winged Infusion Set is engineered for reliable peripheral vascular access in a broad range of patients. Its 22‑gauge needle provides a balance: fine enough to reduce vessel trauma and discomfort, yet large enough to support many standard IV fluid and medication infusions. The ¾″ needle length is optimized for typical superficial venous access, and the 12‑inch tubing allows for sufficient slack and handling distance from the access site.

One of the key design features is the wing structure. The soft, flexible, interlocking wings are intended to conform to the patient’s skin surface, making secure taping and positioning easier, especially when the patient moves. Moreover, the needle is bonded to the wings at a slight downward angle (just under 3°). This subtle angular placement helps orient the needle tip more favorably in the vessel lumen and reduces the risk of vessel wall trauma or partial occlusion of the lumen during insertion or when the patient shifts.

From a performance and safety standpoint, the SV‑22BLK employs an ultra-thin wall needle to reduce insertion resistance, which can improve first-stick success and reduce tissue injury. The absence of a built-in safety or port keeps the design simple, which may reduce mechanical complexity and costs, but it also requires careful handling and disposal during and after use. The set’s non‑DEHP and latex‑free materials improve biocompatibility and lower the risk of allergic reactions or exposure to certain plasticizers. In clinical settings, this infusion set can serve as a dependable option for many routine IV therapies where a 22G line is appropriate.
