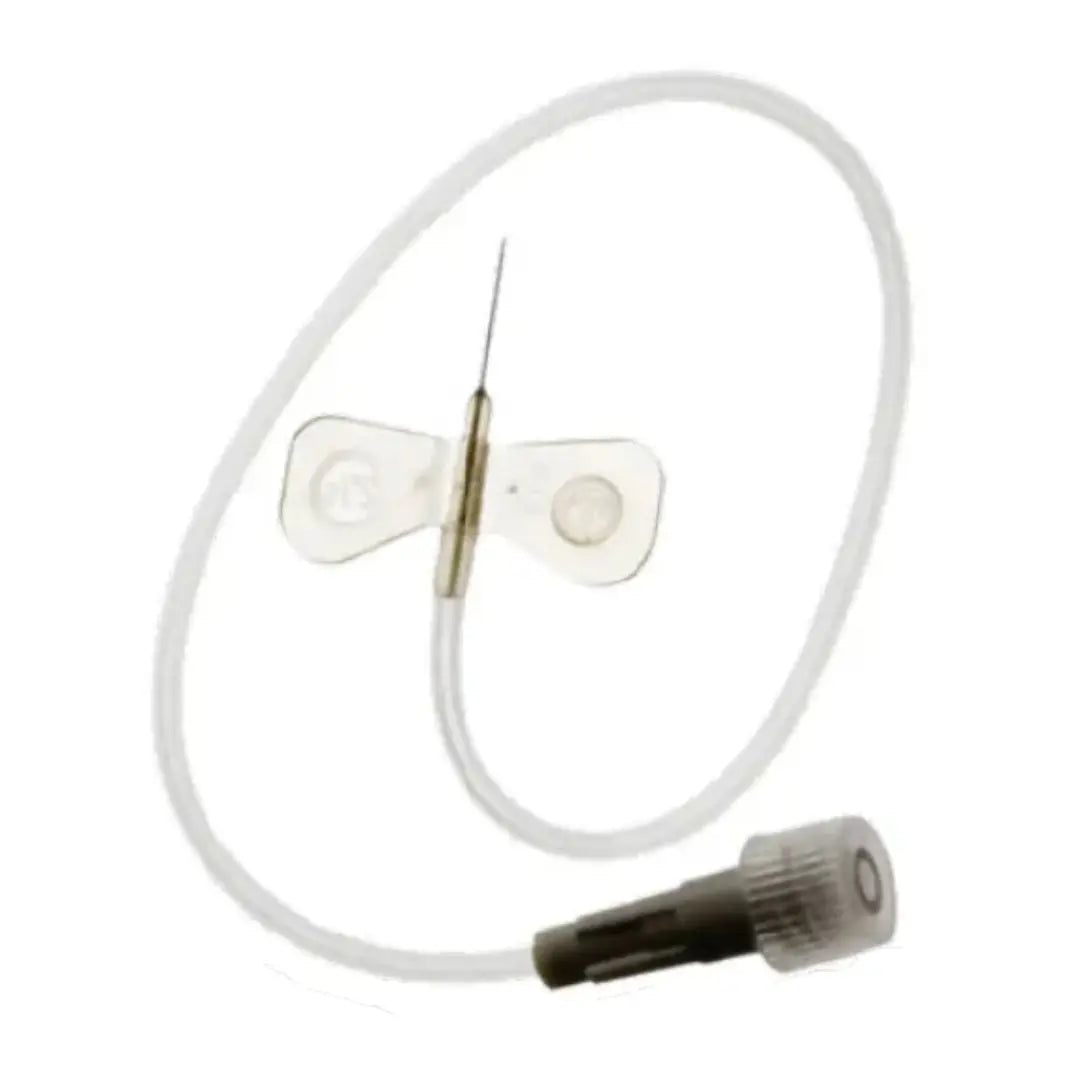

TERUMO 3SV-25BLK SURFLO WINGED INFUSION SETS - 25G x ", 12" Tubing, 50/bx, 10 bx/cs (US Only)

TERUMO 3SV-25BLK SURFLO WINGED INFUSION SETS - 25G x ", 12" Tubing, 50/bx, 10 bx/cs (US Only)

• Model: 3SV-25BLK
• Gauge/ Needle Size: 25 gauge
• Needle Length: ¾ inch (0.75″)
• Tubing Length: 12 inches
• Box of 50
• 10 Boxes/ Case

The TERUMO 3SV‑25BLK SURFLO Winged Infusion Set is designed for delicate vascular access needs where lower flow rates suffice and minimizing vessel trauma is key. With its 25‑gauge, ultra‑thin wall needle, it allows for gentle entry with reduced resistance, which can be advantageous in patients with smaller veins or fragile vasculature. The ¾″ needle length strikes a balance between penetrating the vessel reliably and avoiding excess tissue depth.

One of its distinguishing design features is the wing assembly: soft, flexible, interlocking wings that adapt to the patient's body contour for stability during infusion or patient movement. The needle is bonded to the wings at a slight downward angle—just under 3°—which helps orient the beveled tip optimally within the vessel and may reduce the risk of vessel wall trauma or partial occlusion of the lumen during placement or as the patient moves. This geometry aids in maintaining patency and reducing complications.

The tubing is 12 inches in length, giving flexibility and distance from the insertion site to the infusion line. It uses a female luer connector, making it compatible with standard male luer devices. Importantly, some listings note that the tubing is non‑DEHP, reducing concerns about exposure to certain plastic additives. Because this set is without port and without built‑in safety components, it retains simplicity and lower cost, but requires that clinical staff handle and dispose of the needle safely. In practice, this set is well suited for low‑flow infusions, small medication doses, and settings where a fine gauge IV is acceptable and vessel preservation is a priority.
