Varian Medical Systems RAD-14 Medical X-Ray Tube Assembly DIA150KV

Varian Medical Systems RAD-14 X-Ray Tube Assembly (Housing: DIA150KV)

The Varian RAD-14 is a professional-grade rotating anode X-ray tube assembly engineered for demanding diagnostic applications. Mounted within the DIA150KV housing, this unit is rated for a maximum potential of 150 kVp, providing the penetration power necessary for bariatric imaging and complex lateral views. The dual focal spot sizes (0.6 mm for fine detail and 1.2 mm for high-power loads) offer the clinical flexibility required for a modern general radiography suite.

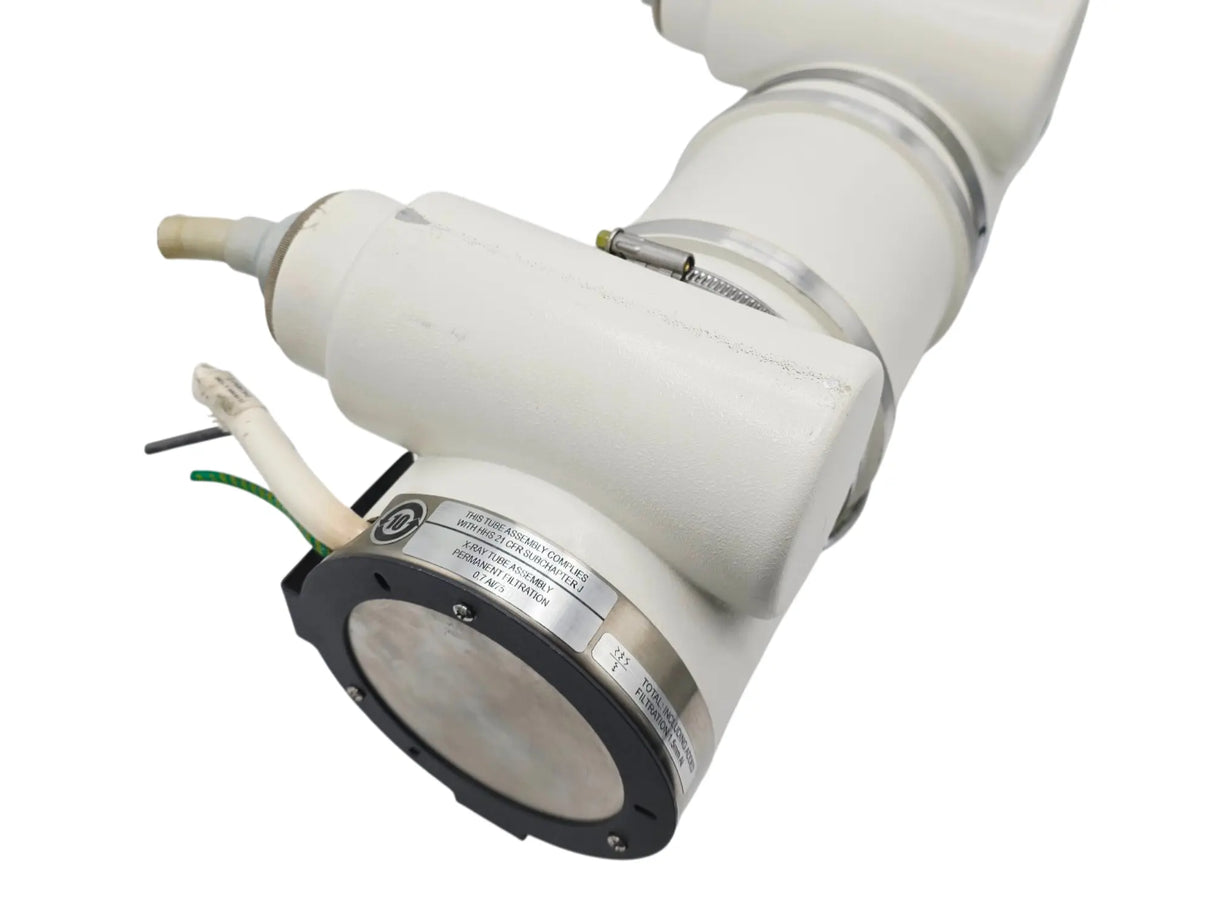

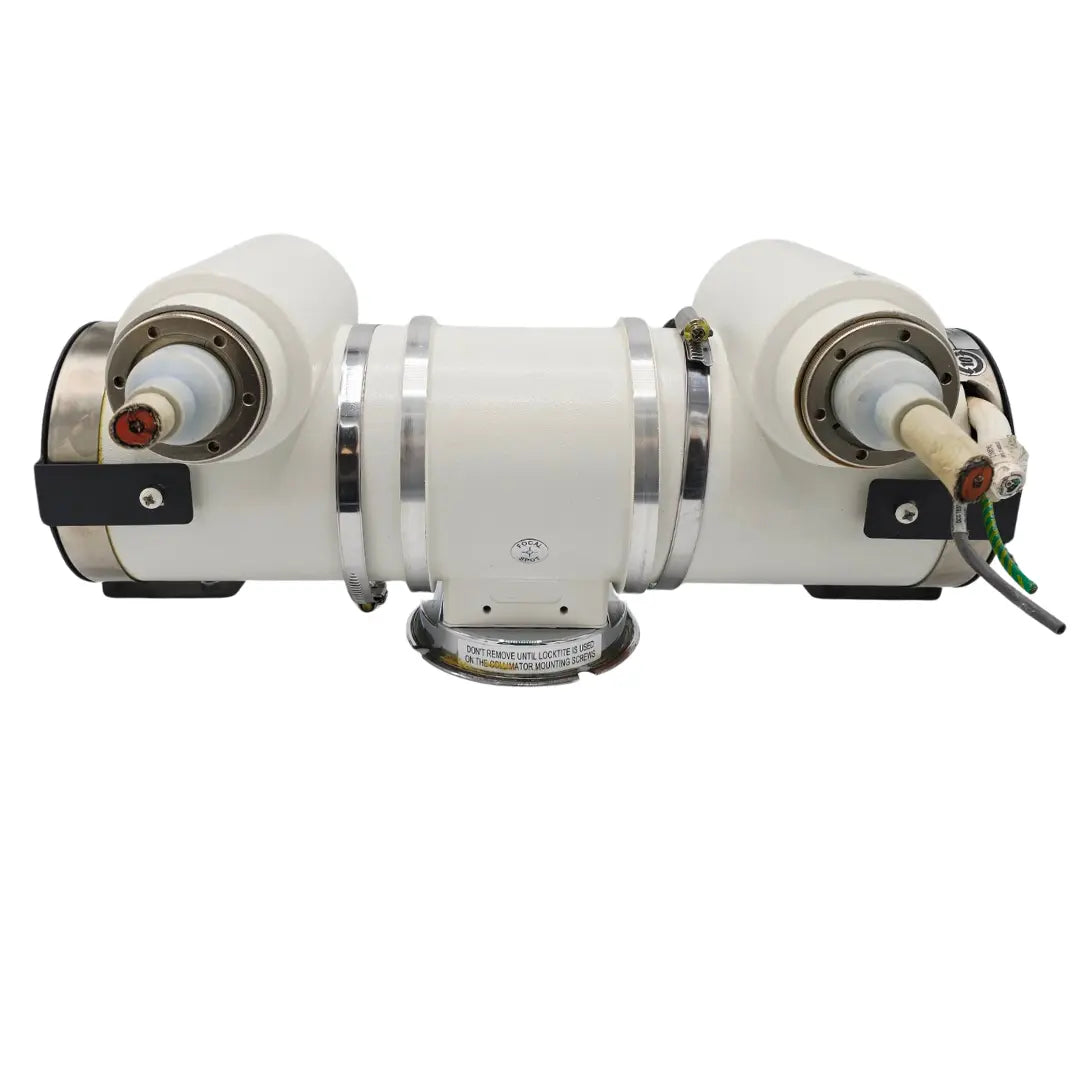

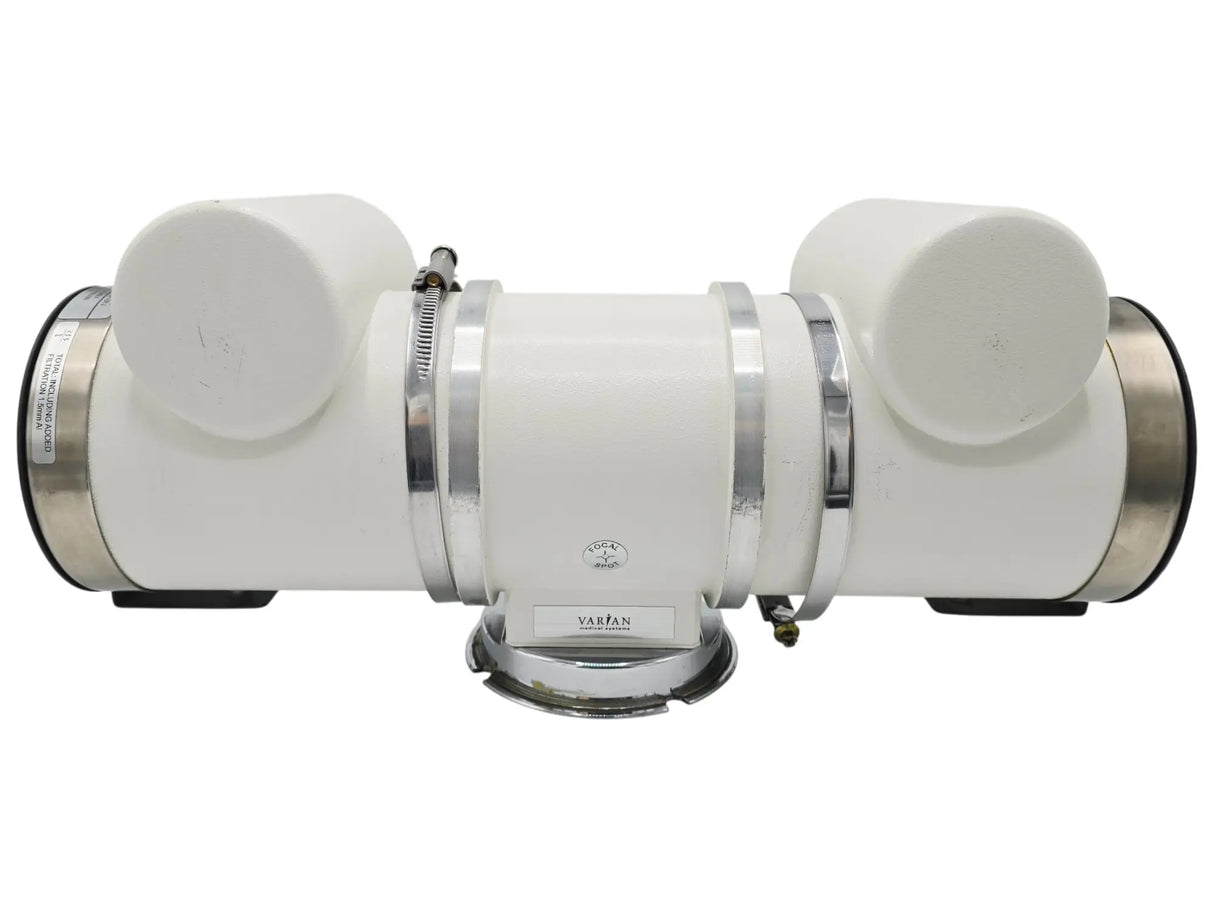

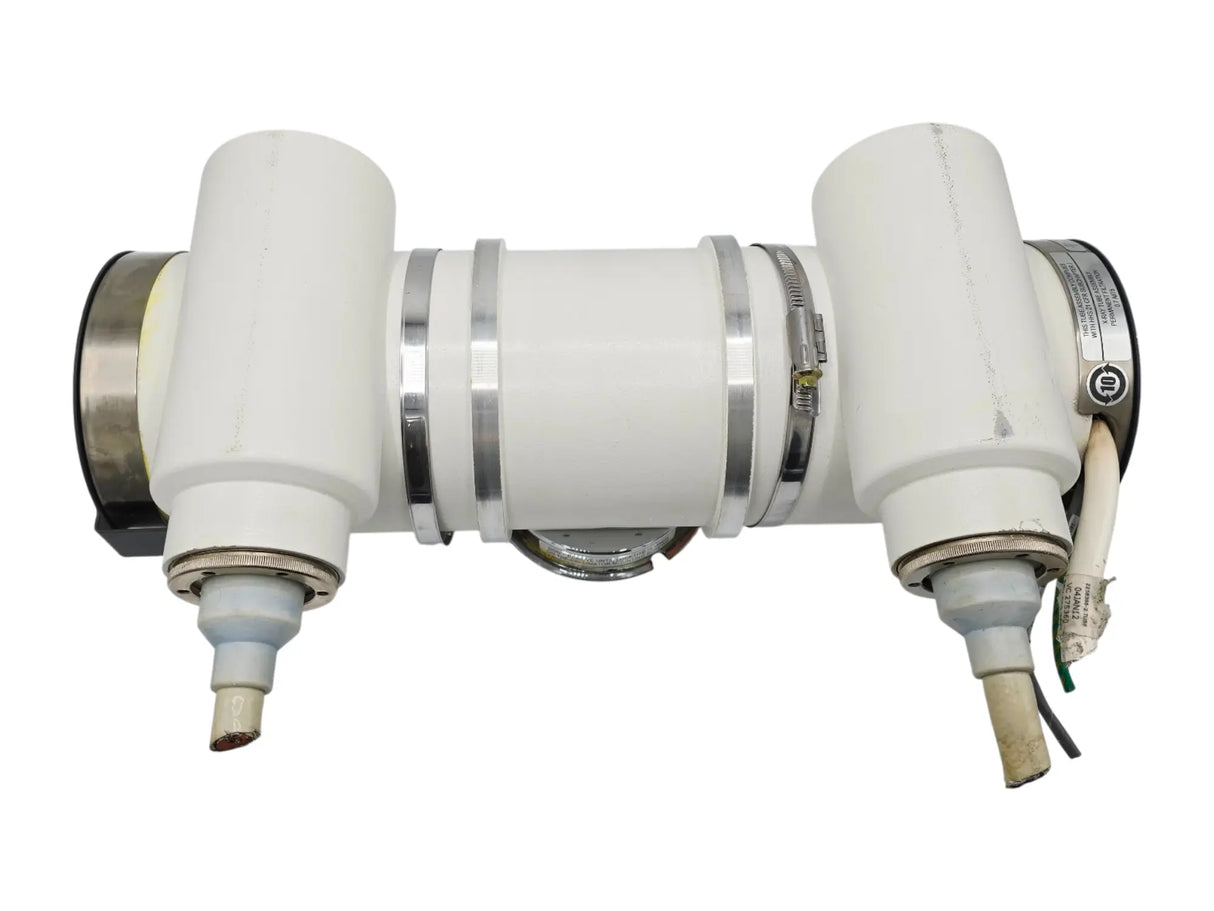

This assembly includes the original housing, stator leads, and mounting hardware. With a permanent filtration of 0.7 mm Al at 75 kV, this unit meets standard regulatory requirements for beam hardening. As a surplus imaging component, this assembly is an excellent candidate for equipment refurbishment, glass-ware harvesting, or as a high-value source of components for specialized research and development.

Key Specifications

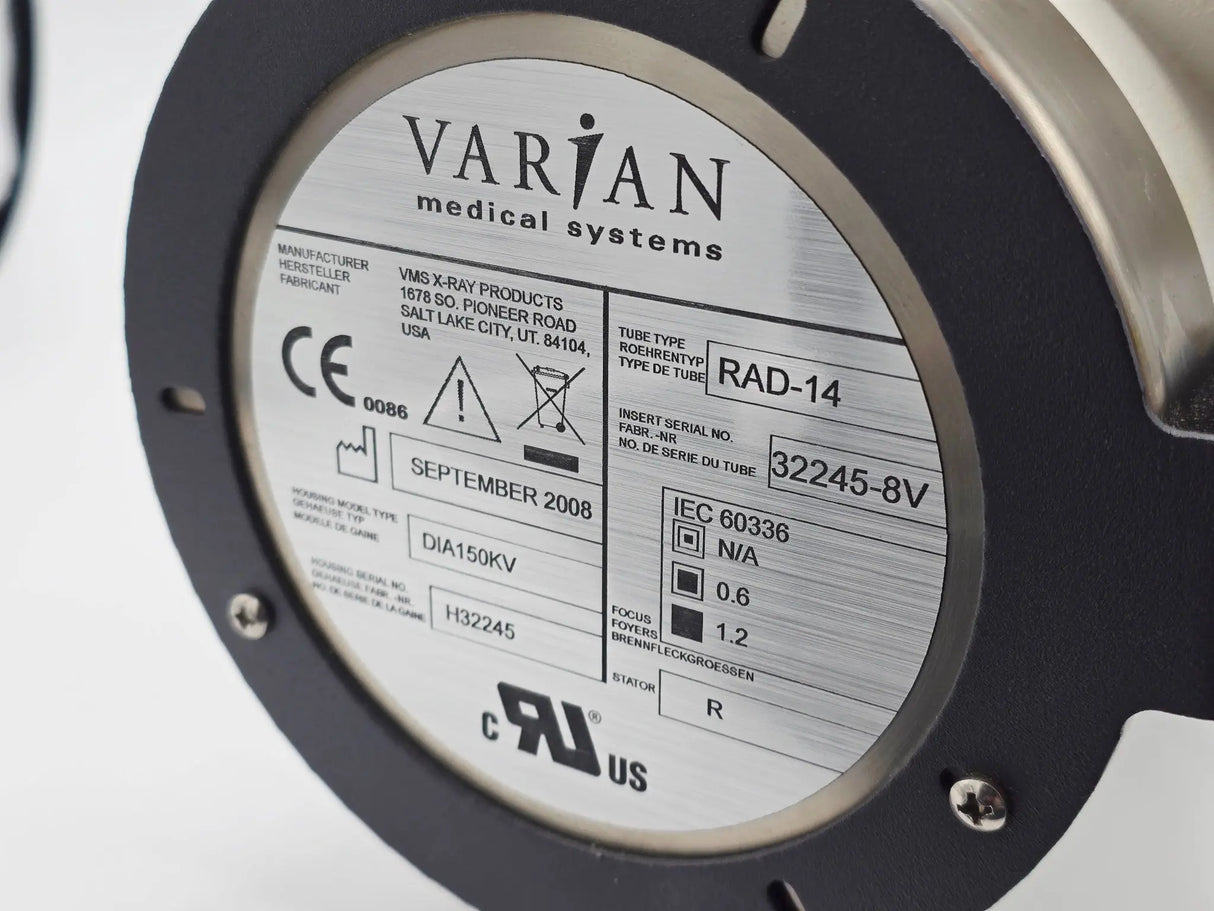

• Manufacturer: Varian Medical Systems (Varex Imaging)

• Tube Type: RAD-14

• Housing Model: DIA150KV (150 kVp Max)

• Focal Spots: 0.6 / 1.2 (Dual)

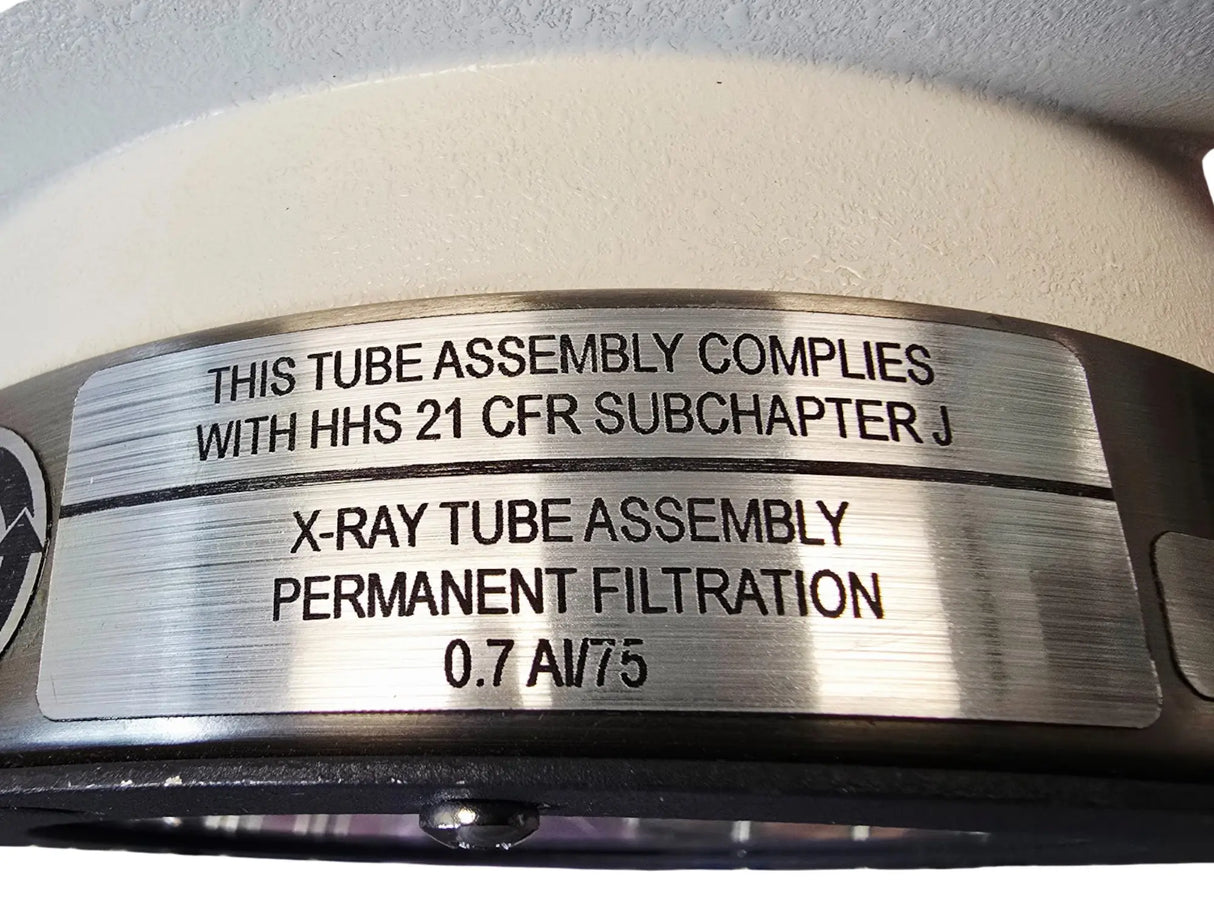

• Permanent Filtration: 0.7 Al / 75

• Stator Type: R-Stator Configuration

• Compliance: HHS 21 CFR Subchapter J / CE / cRUus

• Manufacture Date: September 2008

• Origin: Salt Lake City, Utah, USA

Technical & Professional Considerations

• High Thermal Capacity: The DIA150KV housing is designed for efficient heat dissipation, supporting high-volume patient workflows without excessive cooling delays.

• Precision Engineering: Varian’s R-series stators provide reliable anode rotation, essential for maintaining focal track integrity during high-mA exposures.

• Modular Integration: Standard electrical connection leads and mounting points facilitate integration into a variety of compatible X-ray stands and overhead tube cranes.

• Regulatory Compliance: Fully labeled for medical use in the United States and Europe, ensuring traceable manufacturing standards.

Condition

• Status: Used – Removed from Service.

• Functionality: Untested / Sold As-Is. This unit was removed from a working clinical environment during a facility upgrade but has not been functionally tested since removal.

• Cosmetic Status: Shows signs of professional installation, including typical surface scuffs, residue, and mounting marks.

• SARUP Compliance: No patient data is stored on this mechanical assembly; however, any associated control computers or hard drives have been removed for HIPAA compliance.

Warranty & Terms

• ✔ Sold "As-Is / For Parts": No warranty is expressed or implied regarding the functional life of the vacuum or the integrity of the focal track.

• Inspection: It is strongly recommended that a qualified medical physicist or imaging engineer inspect and season the tube according to manufacturer protocols prior to any attempt at clinical operation.

Shipping

• Professional Heavy-Duty Shipping.

• Ships within 1 business day.

• Dimensions: 19" x 12" x 9"

• Packaged with extreme care using high-density foam to protect the glass insert and high-voltage receptacles during transit.
