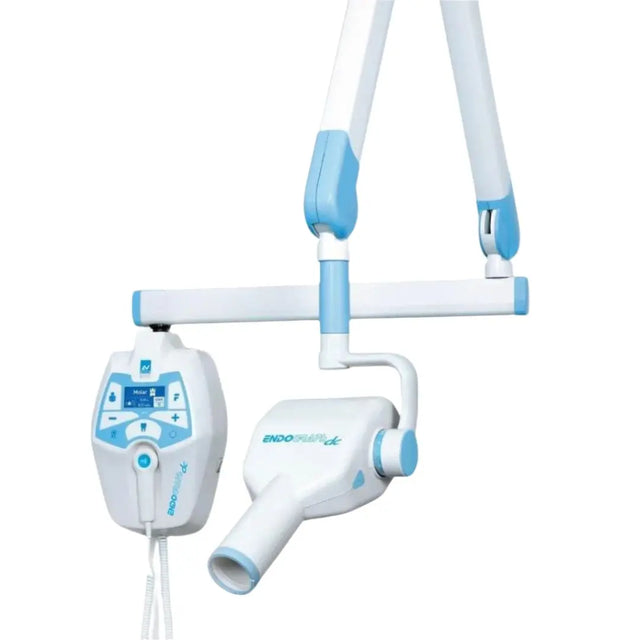

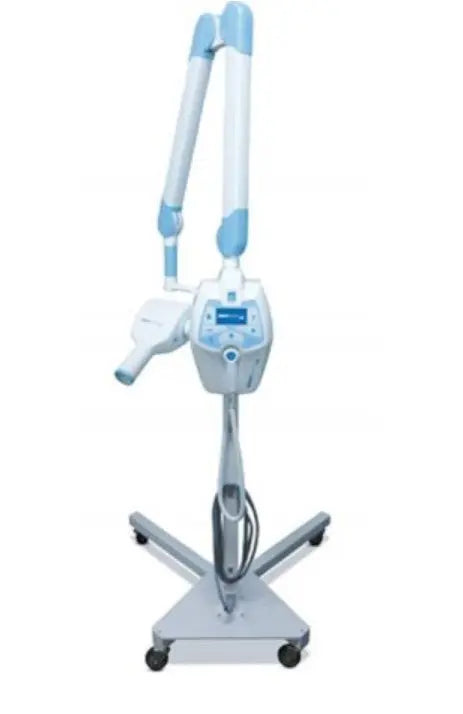

Villa Sistemi Mobile Dental X-Ray Unit Medical Endograph DC Hi-Frequency

Villa Sistemi Medical Endograph DC Hi-Frequency Dental X-Ray Mobile Unit

• Model: D-045 S/N: 39160278
• Endograph DC 8359310000 S/N: 29160278

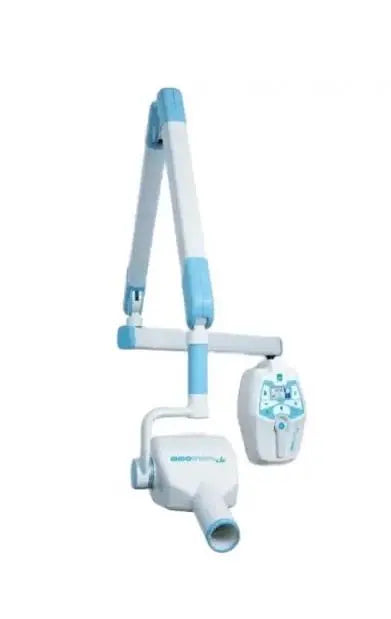

• Wallmount Reference Number: 8159200000 S/N: 18160117
• Tubehead Features
• High voltage circuit type: High frequency (DC)
• High voltage frequency: 30 kHz
• Rated output voltage: 60 - 65 - 70 kVp ± 8%
• Tubehead current: 6 mA
• Maximum deviation of output current: ± 10%
• Nominal tube head power: 420 W
• Total filtration : 2.5 mm Al eq. @ 70 kV, HVL > 2 mm Al eq.
• Interval between exposures (duty cycle): 1:60
• Minimum focus to skin distance: 20 cm, 30 cm with optional collimator cone
• X-ray field (at collimator tip): Circular, diameter 6 cm / Rectangular, 3 choices (20x30mm, 25x35mm, 35x45mm) with optional diaphragm
• Leakage radiation @ 1m : < 0.25 mGy/h
• Technical factors for leakage radiation: 70 kV, 6 mA, 1 s, 60 exp/h
• Tube insert type: OX 70-5
• Focal spot: 0.5 (IEC 336)
• Anode material : Tungsten
• Anode angle: 19°
• Inherent filtration: 0.5 mm Al eq. @ 70 kV
• Anode thermal capacity: 7 kJ

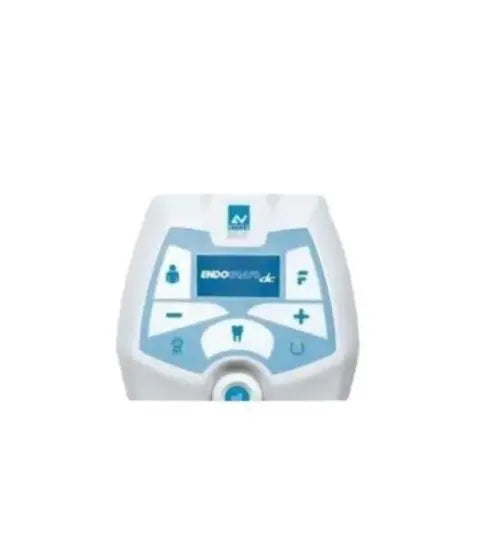

• Timer Features
• Exposure times: From 0.01 to 2s in 36 steps
• Exposure times control: Microprocessor-controlled exposure times
• Timer accuracy : ± 5% or ± 2ms (whatever is greater)
• Timer display: LCD graphical display 84x45mm.
• Resolution: 240x128 pixels
• Exposure button: With extensible cable (3m)
• Number of anatomic programs: 882 pre-set times
• Choice of patient size : 3 choices (small, medium, large)
• Choice of an anatomic region
• Incisors (upper and lower)
• Canines (upper and lower)
• Premolars (upper and lower)
• Upper molars
• Lower molars
• Anterior bite-wing
• Posterior bite-wing

Selection type of receptor : 3 choices
• Films (up to 5 different speeds)
• Phosphor plates
• Digital sensors

• Dose display: Irradiated dose (mGy) is estimated by software according to the exam exposure factors. Reading accuracy: ±20%
• Variation of times for collimator cone = 30cm: A keyboard selection, with display indication, allows change automatically the exposure times when the
• A 30 cm cone collimator is used
• Visualization of number of exposures: Yes
• External connections Provisions for connection of:
• Remote X-ray pushbutton
• Ready status signal lamp
• X-ray emission signal lamp
• Date of Manufacturing 05-2016

This medical equipment item is brand new, having never been used, and has been removed from its original packaging. It may include demonstration (DEMO) equipment. While in pristine operational condition, minor cosmetic scratches may exist, which will be noted accordingly.

The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipment.
