Adjustable Surgical Table Arm Support Positioning Pad Accessory Preowned

Adjustable Surgical Table Arm Support Positioning Pad Accessory Preowned

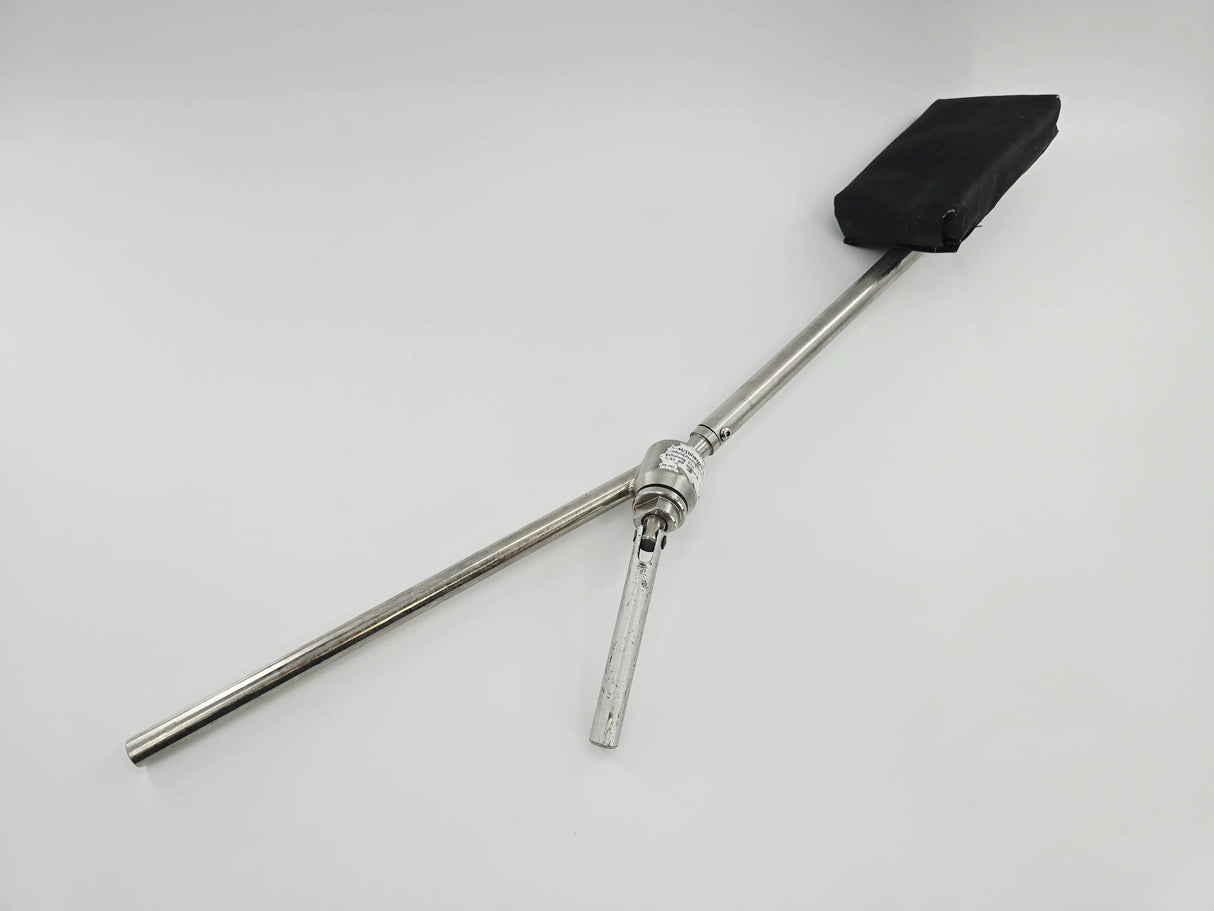

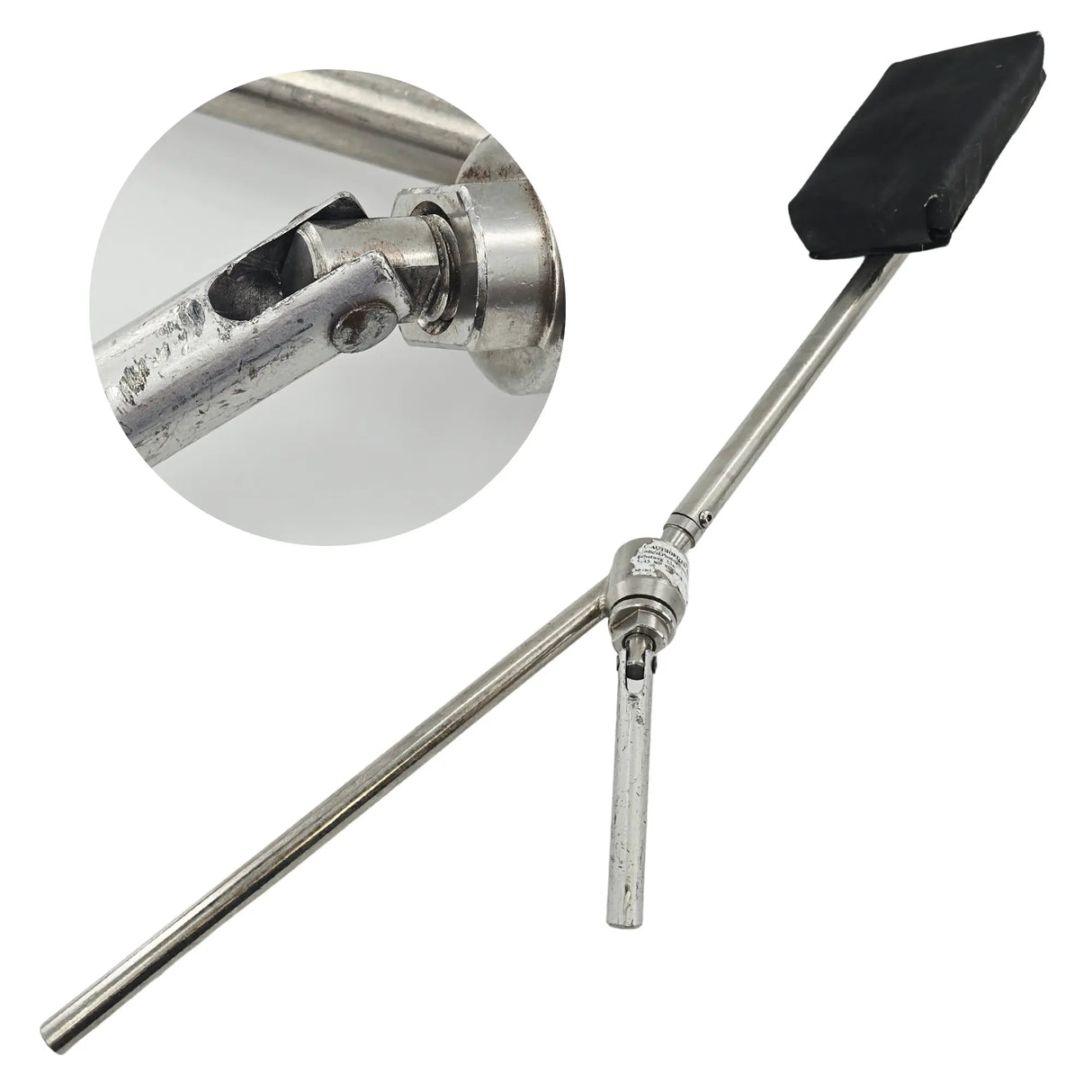

This professional-grade adjustable surgical table arm support is an internal surgical suite accessory engineered to provide stable, precise upper-extremity positioning for patients across varied surgical layouts (including supine, prone, and lateral decubitus positions). Designed to mount directly onto standard operating room table side tracks, this assembly features an adjustable tilting and rotating articulation joint that allows clinical teams to position the patient's arm at exact anatomical angles for intravenous lines, anesthesia access, or upper-limb procedures. The complete assembly includes a specialized, high-density pressure-management pad that redistributes focal patient weight to protect the ulnar, radial, and brachial plexus nerves from compression and shear tissue breakdown during extended intraoperative workflows.

Technical specifications

• Brand: Unbranded/Generic

Additional product details

• Equipment Typology: Universal Multi-Axis Articulating Arm Board Support with Pressure-Management Pad
• Mounting Interface: Toolless side-loading drop-on clamp block (attaches at any point along the side rail without end-rail sliding)
• Table Rail Compatibility: Fits standard North American surgical table side rails (1.125" Wide x 0.375" Thick / 28.6 mm x 9.5 mm rectangular rail profile)

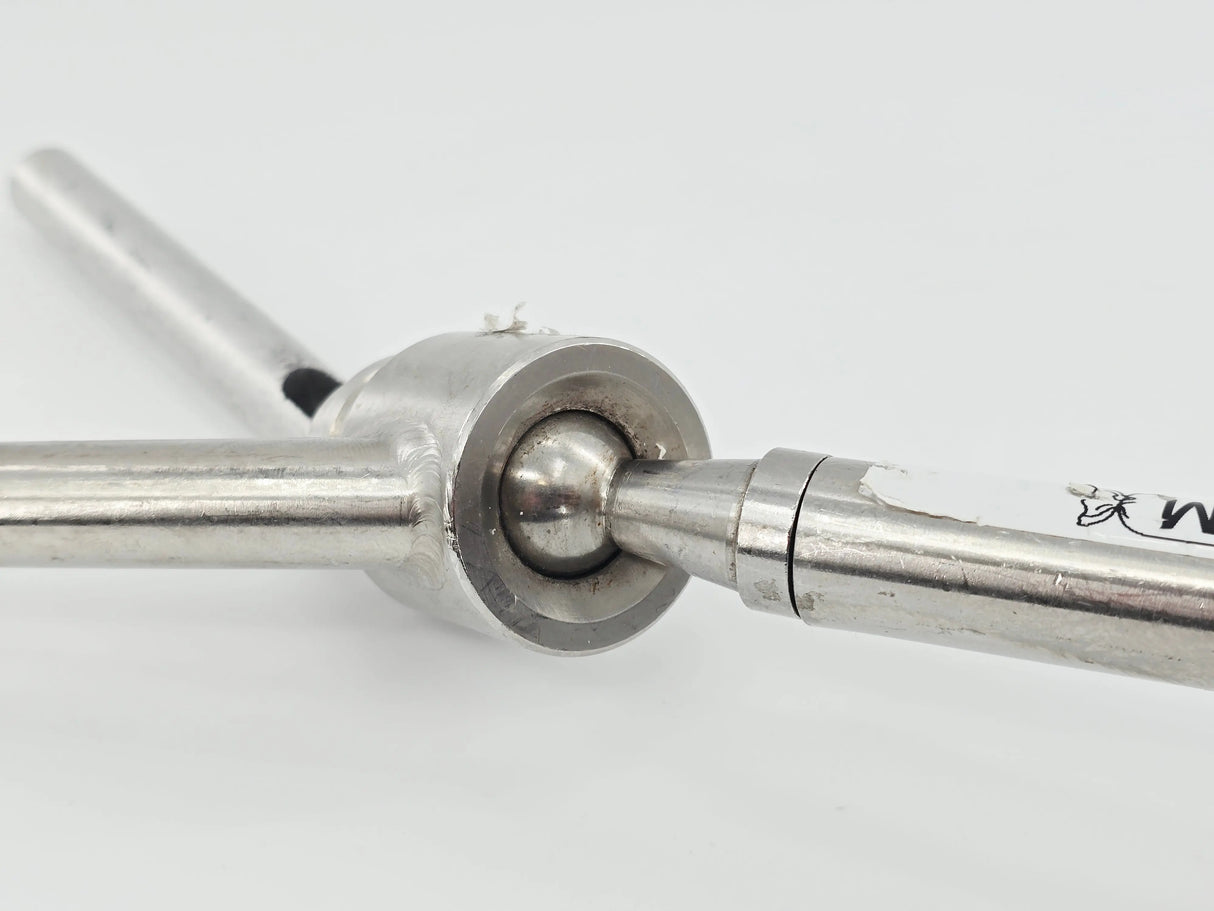

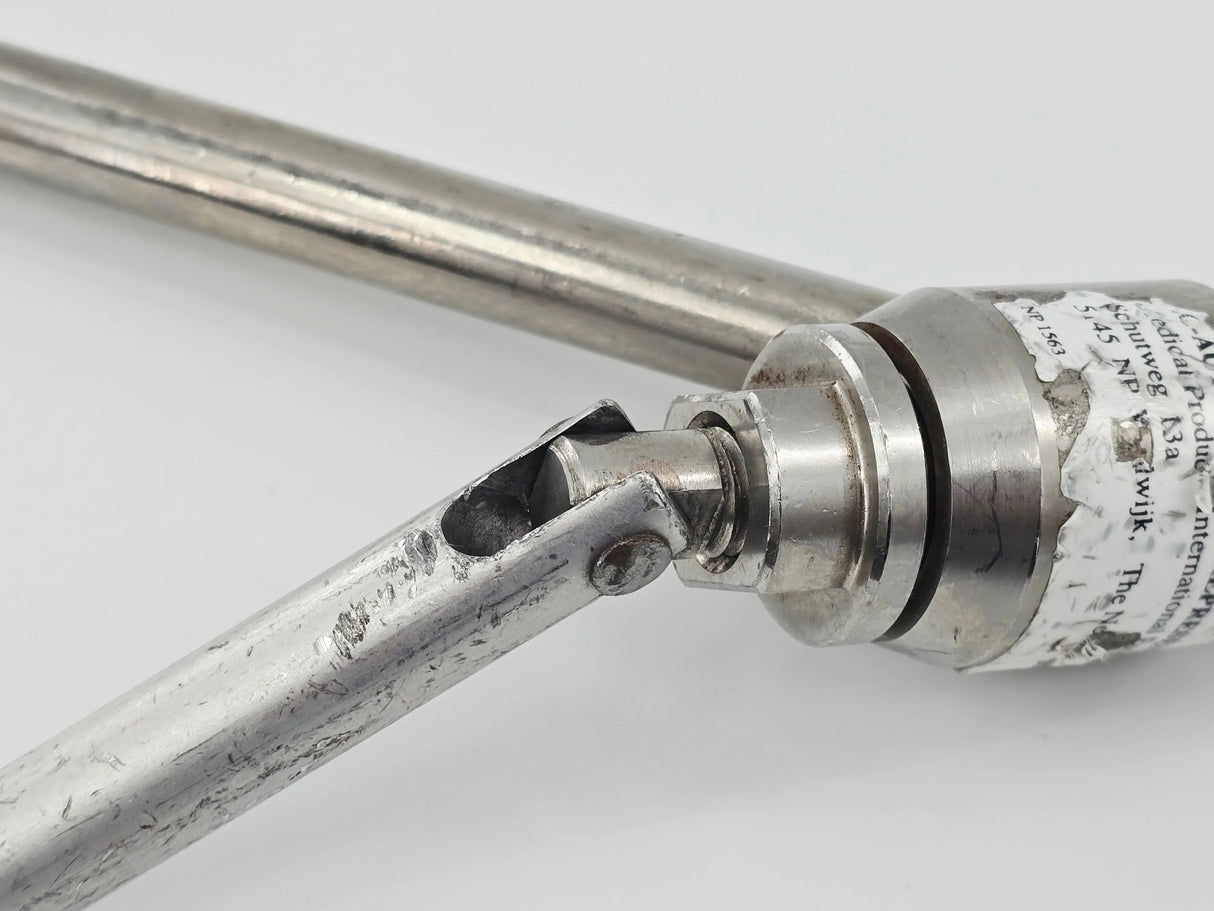

• Adjustment Capabilities: 360-degree horizontal rotation, with adjustable vertical height translation and independent pitch/tilt controls via a single-hand locking lever
• Support Deck Dimensions: 24.00" Long x 6.00" Wide (61.0 cm x 15.2 cm rigid extension profile)

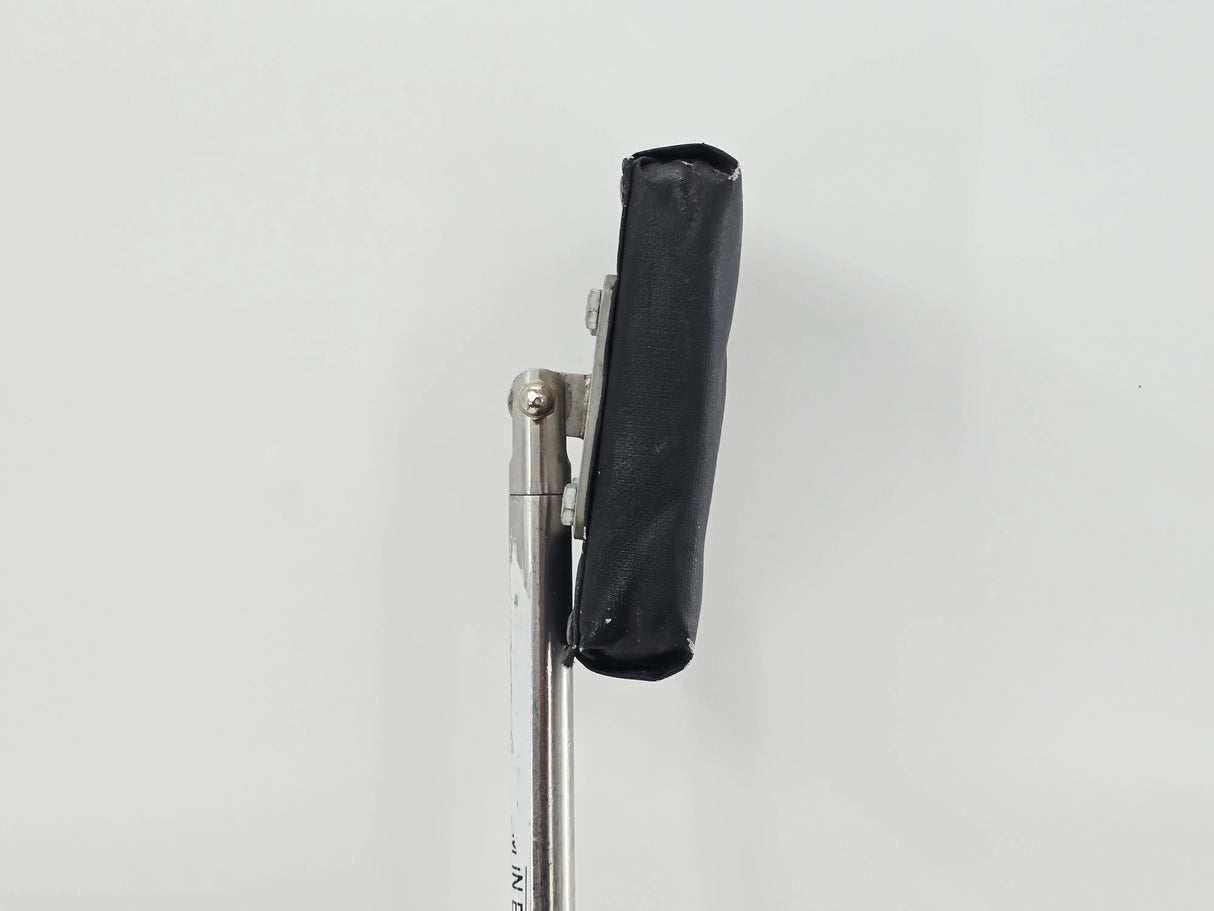

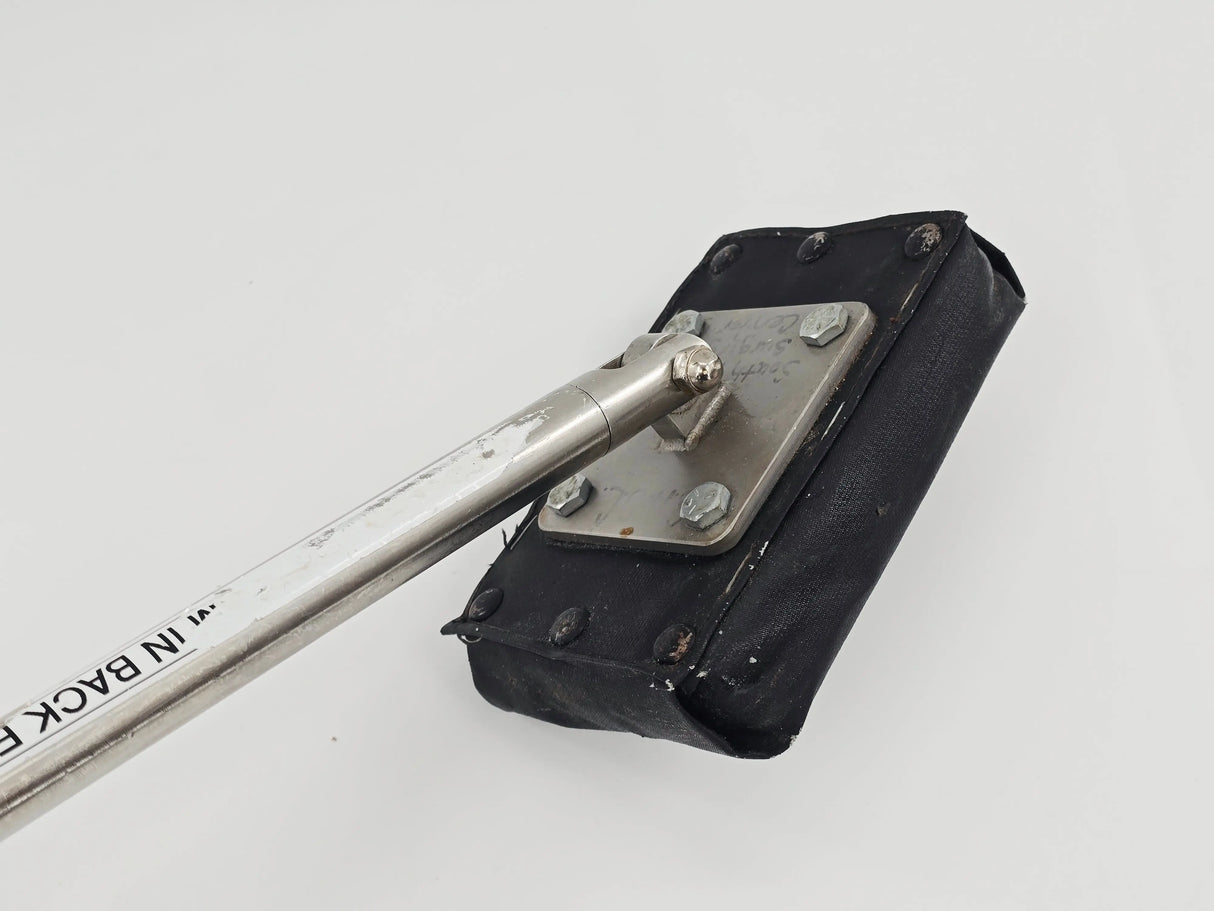

• Positioning Pad Dimensions: 24.00" Long x 6.00" Wide x 2.00" Thick (61.0 cm x 15.2 cm x 5.1 cm overall padding profile)
• Pad Core Composition: High-density, viscoelastic polyurethane pressure-reducing foam with anti-shear characteristics
• Weight Load Capacity: Validated to support static upper extremity weights up to 100 lbs (45.3 kg maximum structural safety limit)

Condition

Preowned.
