Aloka SSD-5 Ultrasound JB-263B Assembly Tested Working

Aloka SSD-5 Ultrasound JB-263B Assembly Tested Working

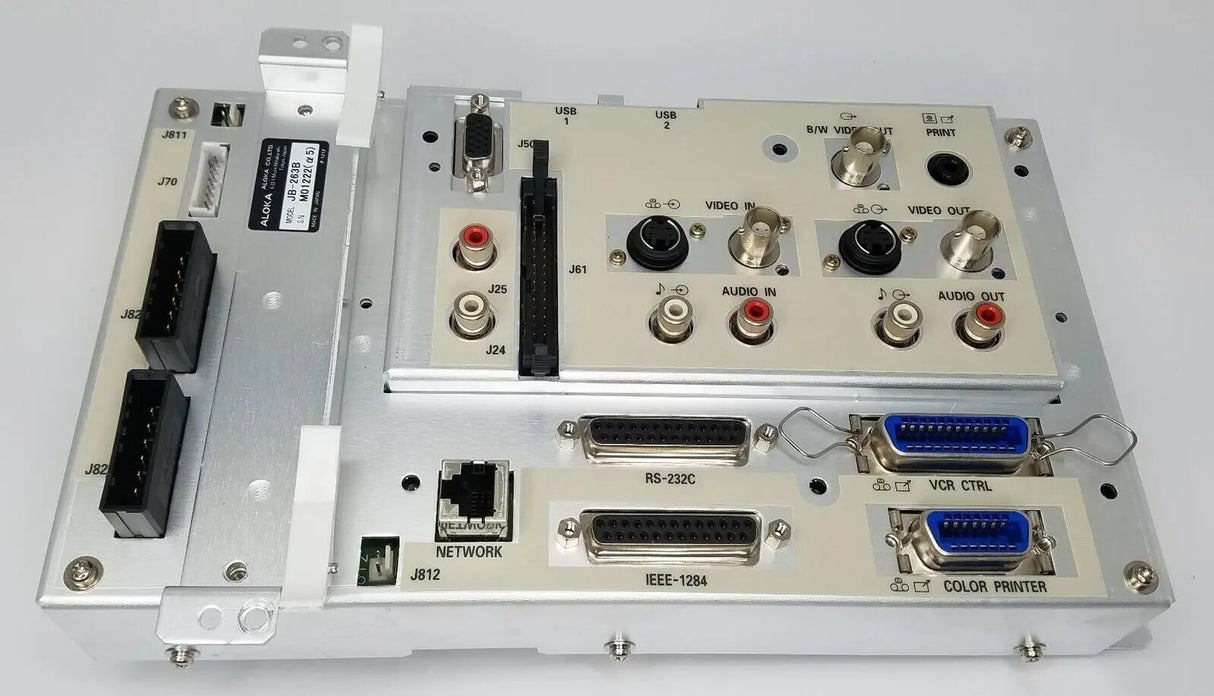

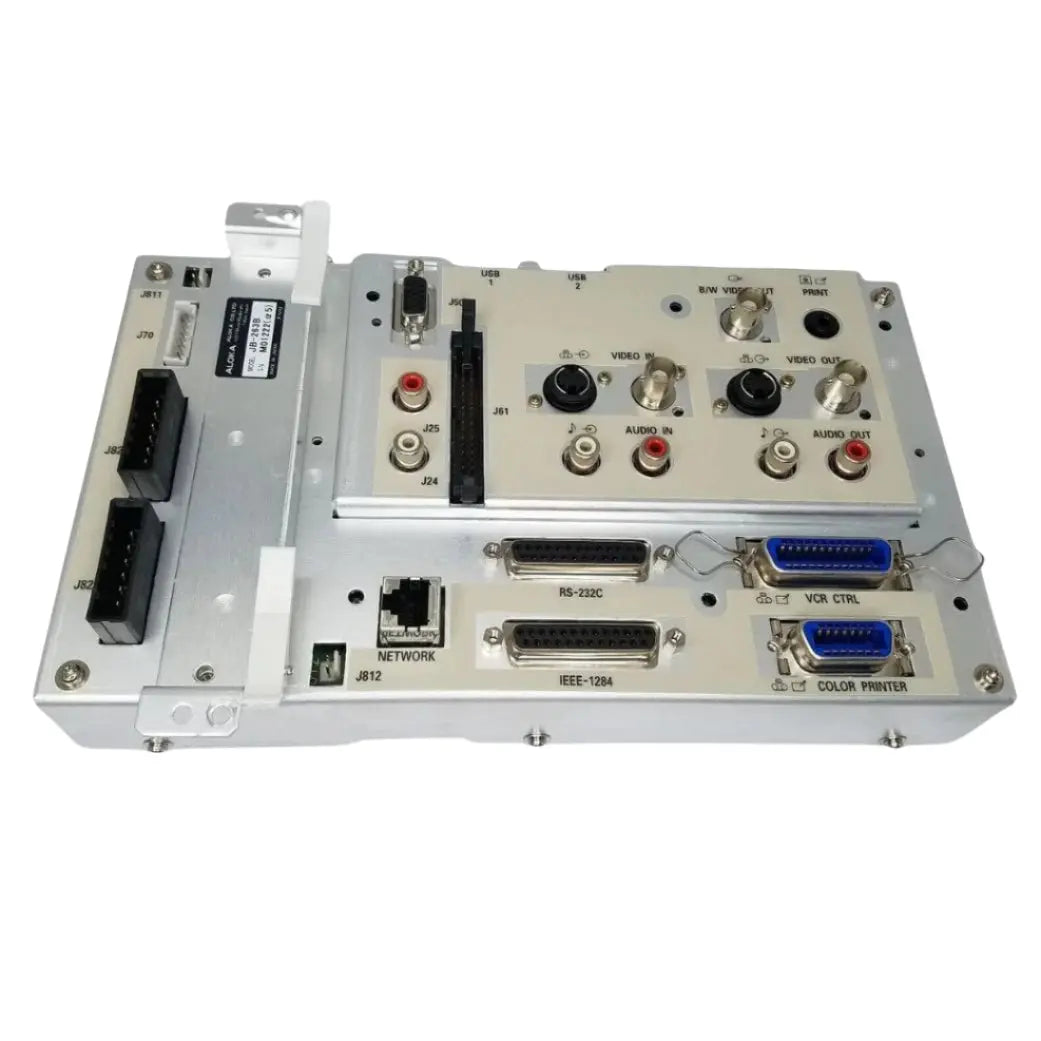

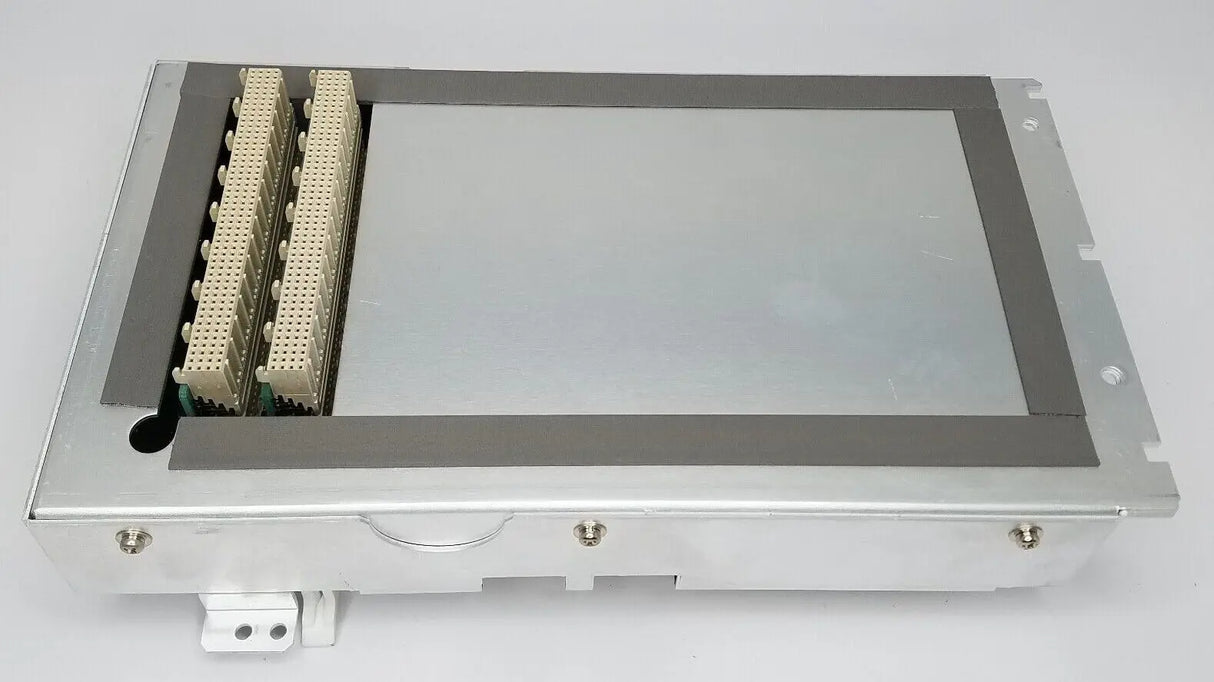

The Aloka JB-263B is a core internal assembly board for the SSD-5 series ultrasound systems. Known for their durability in both human and veterinary diagnostic imaging, the SSD-5 systems depend on high-integrity electronic assemblies like the JB-263B to manage signal processing and system stability.

Technical specifications

• Brand: Aloka

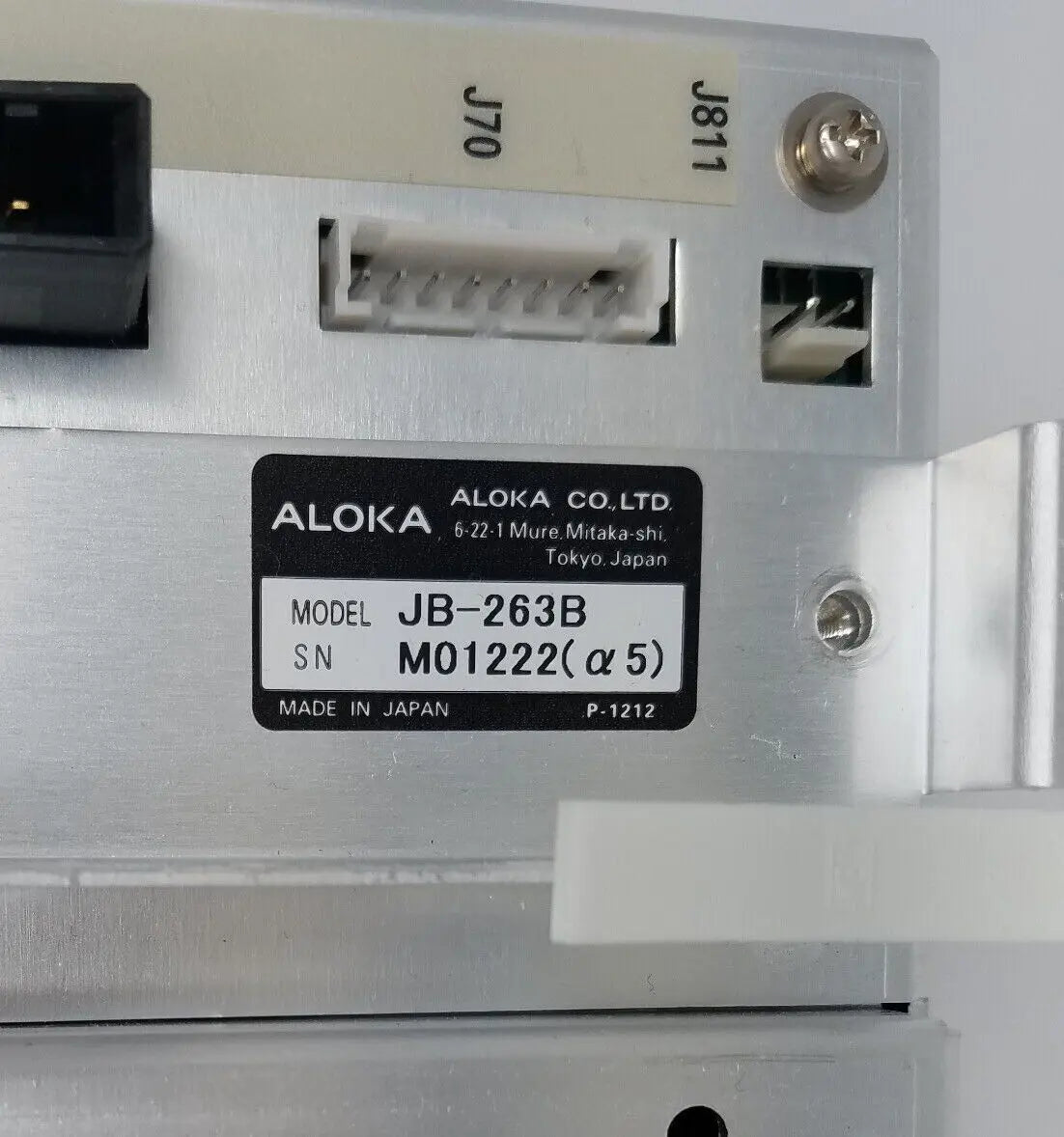

• Reference / model: JB-263B
• Serial number: M01222

Additional product details

• This specific assembly was professionally removed from a working environment and was bench-tested for functionality prior to decommission. It is a vital resource for biomedical engineers or clinical managers looking to extend the life of their Aloka imaging fleet without the cost of a full system replacement.
• Manufacturer: Aloka
• Compatibility: Engineered specifically for the Aloka SSD-5 Ultrasound platform.
• Component Type: Internal electronic system assembly.
• Verified Integrity: This unit was tested prior to removal, ensuring that it meets the signal requirements necessary for diagnostic imaging output.
• Legacy Support: As many Aloka SSD-5 units have moved into the "end-of-life" phase for manufacturer support, this JB-263B assembly is critical for maintaining "uptime" in facilities that rely on the SSD-5 for routine scanning.
• Status: Used – Tested & Functional.
• Functional Status: Bench-tested for power-up and signal integrity prior to being pulled from the host unit.
• Cosmetic Status: Clean board with no visible signs of heat damage, capacitor leakage, or "crazing" on the circuitry.
• Handling Note: This is a sensitive electronic component. It has been stored and will be shipped in anti-static packaging to protect the onboard micro-circuitry.
• If the board is found to be non-responsive or defective when installed by a qualified technician, Primis Medical will provide a full refund or replacement.
• This assembly is essential for:
• Medical Repair: Resolving system failures in Aloka SSD-5 human diagnostic units.
• Veterinary Clinics: Maintaining imaging capabilities in small-animal or equine practices.
• Bio-Med Support: Stocking critical spares for legacy ultrasound maintenance contracts.
• (1) Aloka SSD-5 Ultrasound Assembly (Part No. JB-263B)

Condition

Tested Working. Used.

Warranty

Includes a 90-day limited parts warranty from Primis Medical.

Condition and fitment disclaimer

This is a used replacement part and may show cosmetic wear from prior use. Review the photos and condition details. Before purchase, verify the exact part number, revision, connectors, and compatibility with your equipment. A matching system model alone does not establish fitment. Installation and any required configuration or calibration should be performed by a qualified technician.
