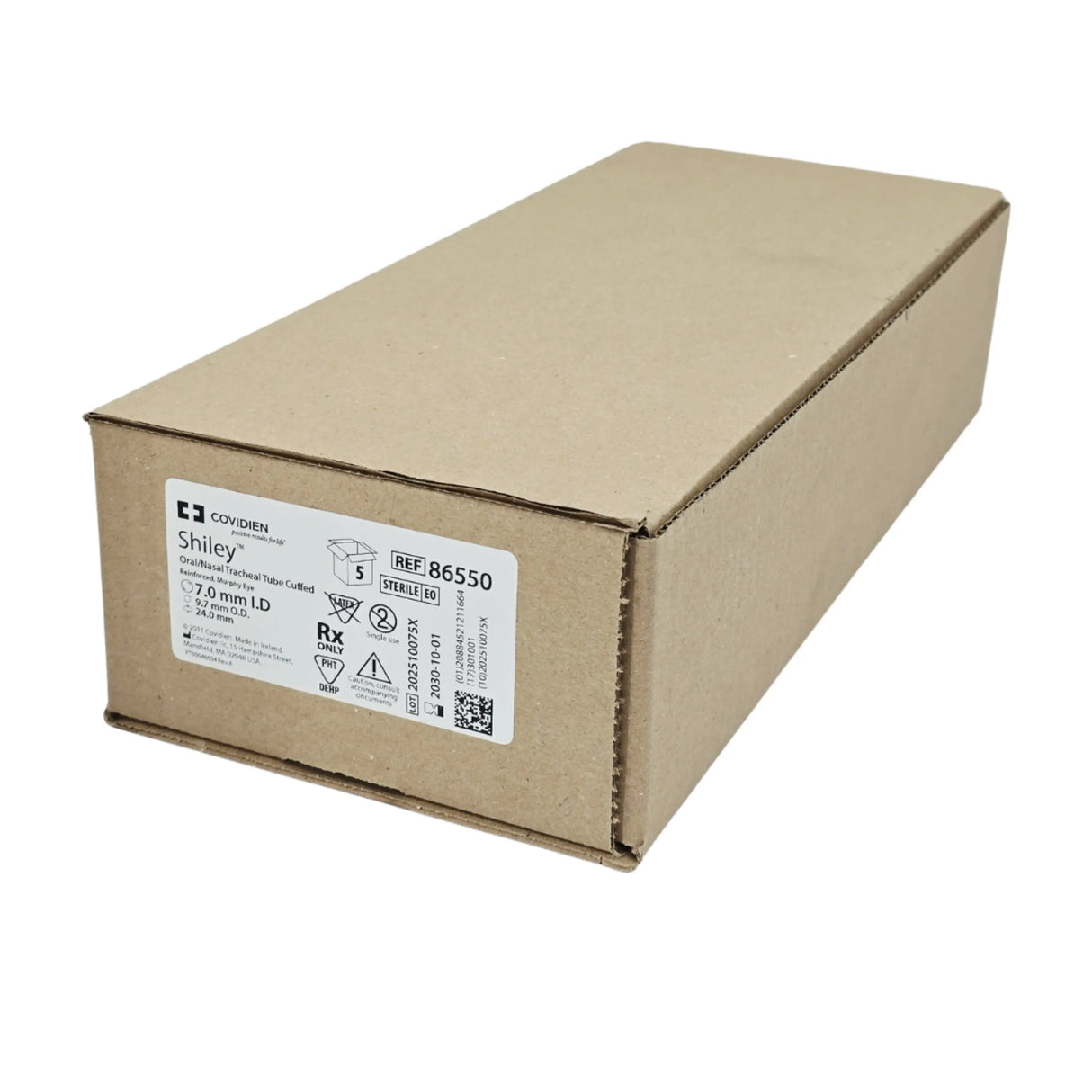

Covidien Shiley 86550 Reinforced Cuffed Oral/Nasal 7.0mm Endotracheal Tube – Box of 5

Shiley Reinforced Endotracheal Tube | Model 86550 | 7.0mm Internal Diameter | Cuffed Oral and Nasal Airway Management | Spiral-Wound Kink-Resistant Technology | Box of 5

Expiration: 2030-10-01

The Shiley 86550 is a professional-grade reinforced endotracheal tube engineered to secure and maintain airway patency during complex surgical procedures where patient positioning creates high mechanical stress. Featuring an integrated spiral-wound reinforcing wire embedded within a soft polyvinyl chloride matrix, this cuffed tube prevents kinking and occlusion when the patient's head is highly flexed, extended, or rotated. It is commonly deployed in neurosurgical, prone-position, and head or neck interventions, utilizing an inflation cuff to establish a positive tracheal seal that guards against aspiration while supporting continuous mechanical ventilation.

Technical Specifications

• Equipment Typology: Spiral-Wound Reinforced Cuffed Endotracheal Tube

• Parent Medical Manufacturer: Medtronic / Covidien / Shiley

• Nominal Tube Inside Diameter: 7.0 mm

• Nominal Tube Outside Diameter: 9.6 mm

• Total Axis Tube Length: 340 mm nominal structural footprint

• Tracheal Cuff Diameter: 24 mm fully expanded parameters

• Structural Tip Architecture: Integrated Murphy Eye distal side-port safety vent to protect airflow patency

• Kink Resistance Matrix: Embedded full-length internal spiral stainless steel reinforcing wire coil

• Connector Interface Profile: 15 mm standard male rigid mechanical connector bonded flush against the wire boundary

• Depth Placement Markers: High-contrast reference alignment marks positioned at 2 cm and 4 cm above the cuff line
