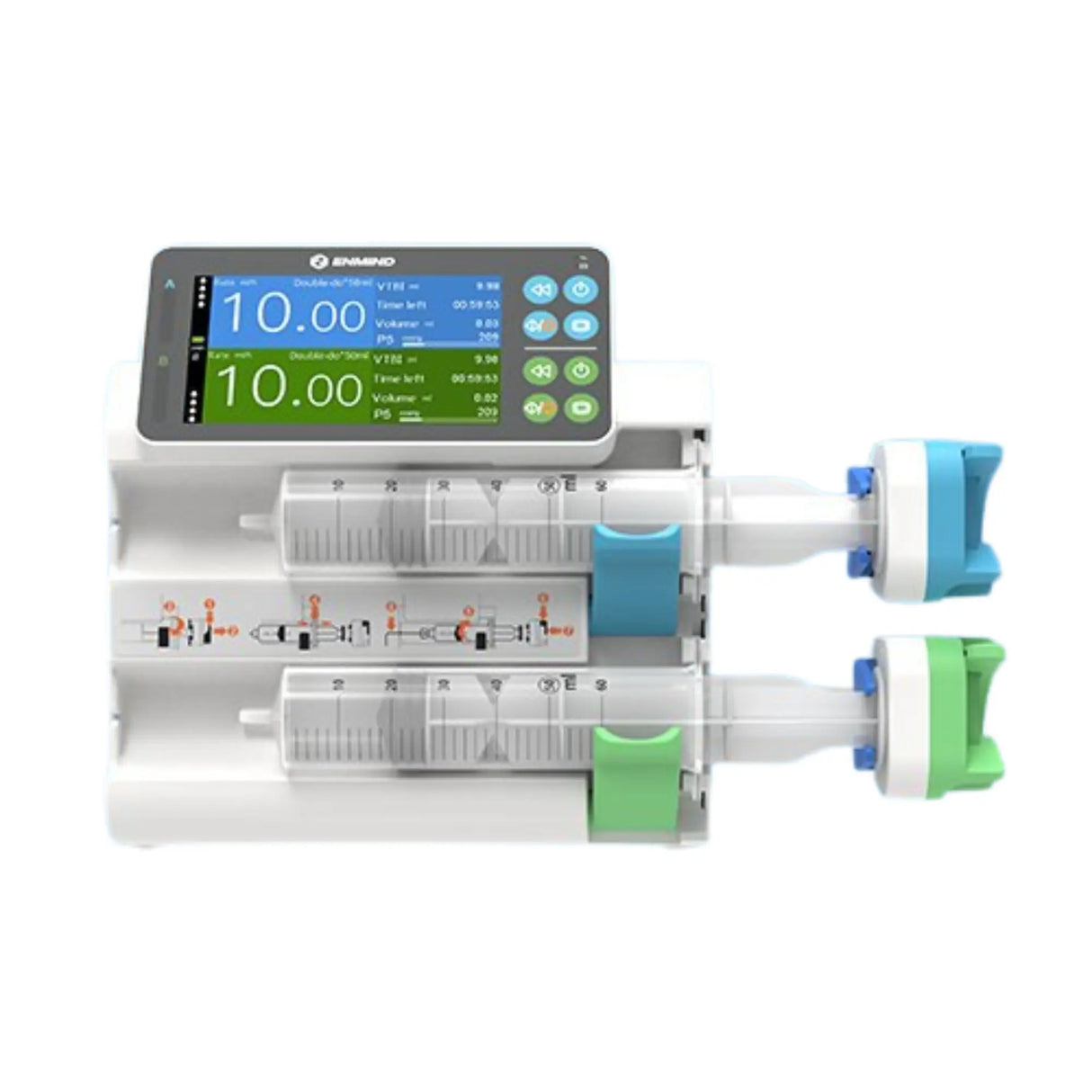

Enmind EN-S5D Dual-Channel Syringe Pump - 2-in-1 Smart Infusion System

Enmind EN-S5D | Dual-Channel Smart Syringe Pump | 4.3-inch Touchscreen

The Enmind EN-S5D is a high-performance, dual-channel syringe infusion system engineered for 2026 clinical standards. By integrating two independent syringe drivers into a single compact housing, the EN-S5D allows clinicians to administer two distinct medications simultaneously—such as a sedative and a vasopressor—without the need for multiple devices.

Controlled by a centralized 4.3-inch color touchscreen, the EN-S5D provides side-by-side monitoring of both infusion channels. This "two-in-one" design significantly reduces bedside clutter, simplifies cable management, and enhances clinical oversight in high-pressure environments.

Key Advantages: Two Channels, One Solution

• Total Independence: Each channel is fully independent, with its own dedicated motor, flow rate settings, and safety parameters. Programming one channel does not affect the other.

• Centralized Oversight: The brilliant touchscreen displays the status of both Channel A and Channel B simultaneously, allowing the practitioner to verify dual-infusion data at a single glance.

• Optimized Footprint: Reduces the requirement for multiple power outlets and pole clamps, making it the ideal choice for crowded trauma bays and patient transport.

• Universal Compatibility: Both channels automatically recognize and calibrate for syringe sizes including 5ml, 10ml, 20ml, 30ml, and 50/60ml from all major brands.

Technical Specifications & Precision

• Flow Rate Range: 0.01 ml/h to 1500 ml/h per channel (Increments as small as 0.01 ml/h).

• Infusion Accuracy: +/- 2% mechanical accuracy.

• KVO (Keep Vein Open) Rate: Adjustable from 0.01 to 5.0 ml/h.

• Bolus Rate: Programmable up to 1500 ml/h (Manual and Automatic modes).

• Battery Performance: High-capacity internal battery supports simultaneous dual-channel operation; ideal for critical care transport.

Safety & Smart Guardrails

• Dual-CPU Architecture: Redundant processors on both channels cross-check system performance in real-time to ensure fail-safe operation.

• Anti-Bolus System: Built into both drivers to automatically vent line pressure after an occlusion is cleared, preventing accidental drug "slugs."

• Dynamic Pressure System (DPS): Features multiple levels of occlusion sensitivity with real-time pressure monitoring for both lines.

• Drug Library: Access to a comprehensive library of over 2,000 drug names with customizable safety limits (hard and soft guards).

• IP24 Waterproof Rating: Splash-proof construction designed for the high-activity environment of the ER and OR.

Ideal Applications

• ICU & Critical Care: Simultaneous management of incompatible medications or multiple pressors/sedatives.

• Anesthesia & Operating Rooms: Precise delivery of induction agents and maintenance fluids from a single unit.

• Oncology: Facilitates concurrent chemotherapy and hydration protocols with rigorous safety checks.

• Veterinary Specialty Surgery: Efficient dual-medication delivery for smaller patients where space is at a premium.

Condition & Quality Assurance

• Status: NEW — 2026 Model.

• Connectivity: Built-in WiFi and RS232 support for seamless integration with Central Monitoring Systems (CMS).

• History Logs: Stores more than 5,000 records, providing a comprehensive audit trail for both infusion channels.
