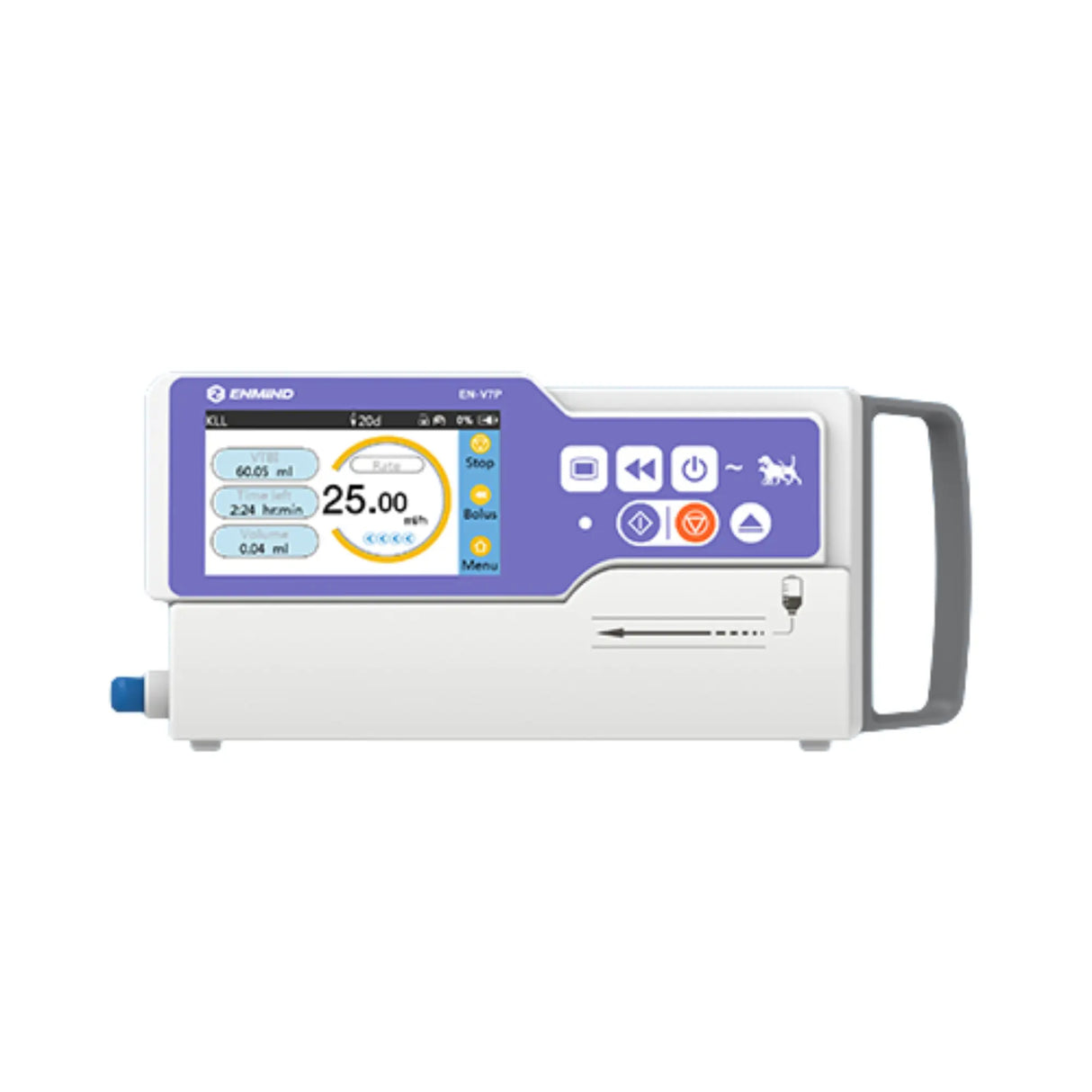

Enmind EN-V7P Volumetric Infusion Pump with Integrated Fluid Heater

Enmind EN-V7P | Smart Infusion Pump with Integrated Fluid Heater

The Enmind EN-V7P is a high-performance volumetric pump engineered for 2026 clinical standards where patient temperature regulation is as critical as medication accuracy. It distinguishes itself with an integrated thermal management system, allowing clinicians to warm intravenous fluids during delivery. This is a vital feature for neonatal care, surgical recovery, and emergency transport, where cold fluids can contribute to unintended hypothermia.

With a vibrant 4.3-inch color touchscreen and a "Safety-First" dual-CPU architecture, the EN-V7P combines intuitive smartphone-like operation with the rigorous precision required for high-risk drug infusions.

Key Advantage: Integrated Thermal Management

• Active Fluid Heating: Features a built-in heating module that warms the IV line. This improves patient comfort and physiological stability during high-volume infusions or in cold-climate emergency settings.

• Adjustable Comfort: Heating levels can be managed to ensure fluids reach the patient at an optimal, safe temperature.

Technical Specifications & Precision

• Infusion Mechanism: High-precision curvilinear peristaltic.

• Flow Rate Range: 0.01 ml/h to 1200 ml/h (Increments as small as 0.01 ml/h).

• Infusion Accuracy: +/- 5% (compatible with any standard IV set).

• Bolus Rate: 0.1 to 1200 ml/h (Automatic and Manual modes available).

• KVO (Keep Vein Open) Rate: 0.01 to 5.0 ml/h (Adjustable).

• Battery Performance: Up to 9 hours at 25 ml/h; fully recharges in under 5 hours.

Safety & Smart Features

• Anti-Bolus System: Automatically reduces line pressure upon the release of an occlusion to prevent accidental post-blockage bolus delivery.

• Dynamic Pressure System (DPS): Real-time monitoring of infusion pressure, displayed both numerically and graphically on the screen.

• Ultrasonic Bubble Detection: 6 levels of adjustable sensitivity (as low as 20ul) to prevent air-in-line complications.

• Smart Connectivity: Built-in WiFi and IrDA support for connection to Central Monitoring Systems (CMS) and nurse call integration.

• Drug Library: Comprehensive internal library of no less than 2,000 drugs with customizable safety limits.

Clinical Infusion Modes

The EN-V7P supports 7 distinct modes plus specialized "Micro" and "Relay" functions:

1. Rate Mode: Standard flow-based delivery.

2. Time Mode: Volume delivered over a specific duration.

3. Body-Weight Mode: Auto-calculates dosage (mcg/kg/min, etc.).

4. Loading-Dose Mode: High initial dose followed by maintenance.

5. Ramp Up/Down Mode: Gradual increase/decrease of flow.

6. Sequence Mode: Multiple sequential infusions in one program.

7. Drip Mode: Synchronized with optional drop sensor.

Ideal Applications

• Operating Theaters & PACU: Maintaining normothermia during and after surgery.

• NICU and Pediatrics: Safe, warmed fluid delivery for sensitive smaller patients.

• Emergency & Ambulatory Transport: Rugged, IP24 waterproof (360-degree splash-proof) design with a 1.2M drop-test rating.

• Veterinary Critical Care: The "P" series is perfectly adapted for animal research and veterinary clinics requiring high-precision titration (0.01 ml/h steps).

Condition & Quality Assurance

• Status: NEW — 2026 Model.

• Design: Compact and stackable; weighs approx. 1.6 kg (3.5 lbs) for easy transport.

• History Logs: Stores more than 5,000 entries for comprehensive audit trails.
