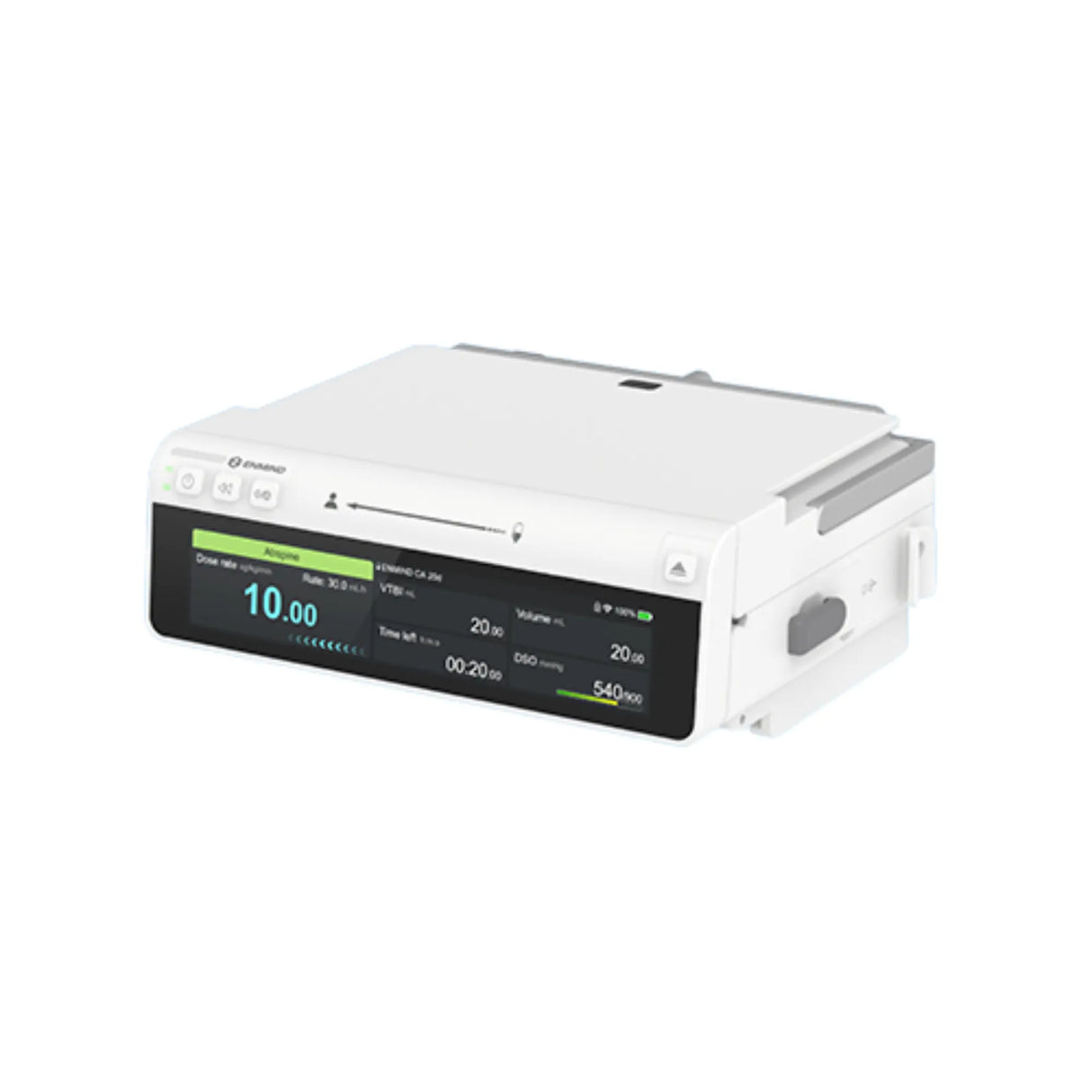

Enmind EN-V9 Volumetric Infusion Pump - 4.3" Touchscreen Smart Pump

Enmind EN-V9 | Smart Volumetric Infusion Pump | 4.3" Touchscreen

The Enmind EN-V9 represents the 2026 gold standard for smart infusion technology. It is a state-of-the-art volumetric pump designed to bridge the gap between high-precision medication delivery and intuitive user experience. Featuring a smartphone-like 4.3-inch color touchscreen, the EN-V9 streamlines clinical workflows, reduces programming time, and minimizes the cognitive load on medical staff.

With its IP24 splash-proof rating and high-precision peristaltic mechanism, the EN-V9 is engineered for the most demanding environments—from high-acuity ICUs to specialized oncology clinics.

Key Differentiators: The "Smart" Advantage

• Smartphone-Style Interface: The vibrant touchscreen eliminates cumbersome keypad navigation, allowing for rapid data entry and "at-a-glance" monitoring of infusion parameters.

• Full Connectivity: Integrated WiFi supports seamless data transmission to central monitoring stations and "Cloud" med-stations, enabling real-time remote monitoring and automated electronic health record (EHR) documentation.

• Drug Library Management: A comprehensive, customizable library of over 2,000+ drug names helps prevent dosing errors by providing pre-set safety limits.

Technical Specifications & Precision

• Infusion Mechanism: High-precision curvilinear peristaltic.

• Flow Rate Range: 0.01 ml/h to 1500 ml/h (Increments as small as 0.01 ml/h).

• Infusion Accuracy: +/- 5%.

• Bolus Rate: Programmable up to 1500 ml/h (Manual/Automatic/Rapid).

• KVO (Keep Vein Open) Rate: 0.01 to 5 ml/h (Adjustable).

• Battery Performance: Up to 10 hours of operation at 25 ml/h, ideal for patient transport.

Safety & Alarm Systems

• Air-in-Line Detection: Integrated ultrasonic sensor with multiple sensitivity levels.

• Occlusion Management: High-sensitivity pressure sensors with multiple programmable levels to detect blockages instantly.

• Anti-Free Flow: Built-in clip to prevent accidental bolus when the pump door is opened.

• History Logs: Comprehensive storage of over 5,000 records, allowing for detailed post-infusion audits.

Clinical Infusion Modes

The EN-V9 offers 6 distinct modes to accommodate diverse therapeutic requirements:

1. Rate Mode: Standard flow-based delivery.

2. Time Mode: Delivery based on a specified duration.

3. Weight Mode: Automatically calculates dosage based on patient mass (mg/kg/h, etc.).

4. Drip Mode: Synchronized with drop-sensor feedback.

5. Loading-Dose Mode: Administers a primary dose followed by a maintenance rate.

6. Sequence Mode: Programs multiple sequential infusions within a single session.

Condition & Quality Assurance

• Status: NEW — 2026 Model.

• Hygienic Design: The flat touchscreen and IP24 housing support rapid disinfection with standard clinical wipes.

• Durability: Lightweight, compact design suitable for both bedside and transport.
