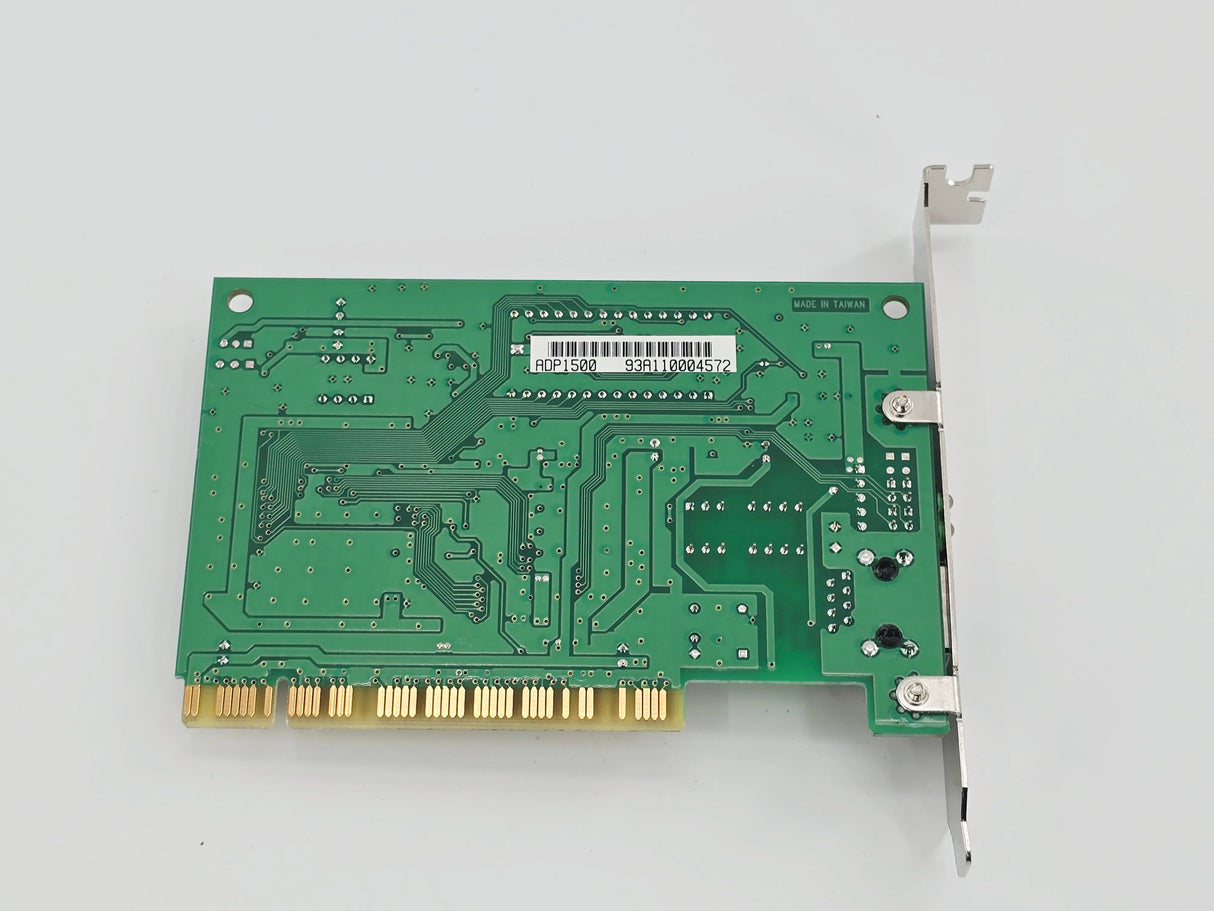

GE OEC Rev U6 343446-3000 DICOM Ethernet Adapter Card Board 9800 6800 2800 Used

GE OEC DICOM Ethernet Adapter Card | Revision U6 | Model 343446-3000 | Network Communication Interface PCB | Mobile Surgical C-Arm PACS System Connectivity Assembly

The GE OEC Revision U6 343446-3000 is a professional-grade internal network interface circuit board assembly expertly engineered to manage high-speed data transmission, DICOM (Digital Imaging and Communications in Medicine) protocol wrapping, and local area network communications for mobile surgical C-arm imaging systems. Positioned inside the master computer workstation rack, this specialized adapter card establishes a secure bridge between the C-arm's local image processing unit and the hospital’s central PACS (Picture Archiving and Communication System) network over a standard Ethernet hardwire interface. Built with an optimized Revision U6 layout, this board ensures zero-latency data packaging and secure routing of real-time fluoroscopic imagery, patient demographics, and dose report logs directly to archival servers and remote medical viewing terminals.

Technical Specifications

• System Core Structural Typology: Printed Circuit Board (PCB) Assembly for DICOM Ethernet Communication

• Master System Compatibility: GE OEC 9800 Plus Series, OEC 6800 MiniView, and OEC 2800 Mobile C-Arm Imaging Systems

• Base Hardware Part Number (P/N): 343446-3000

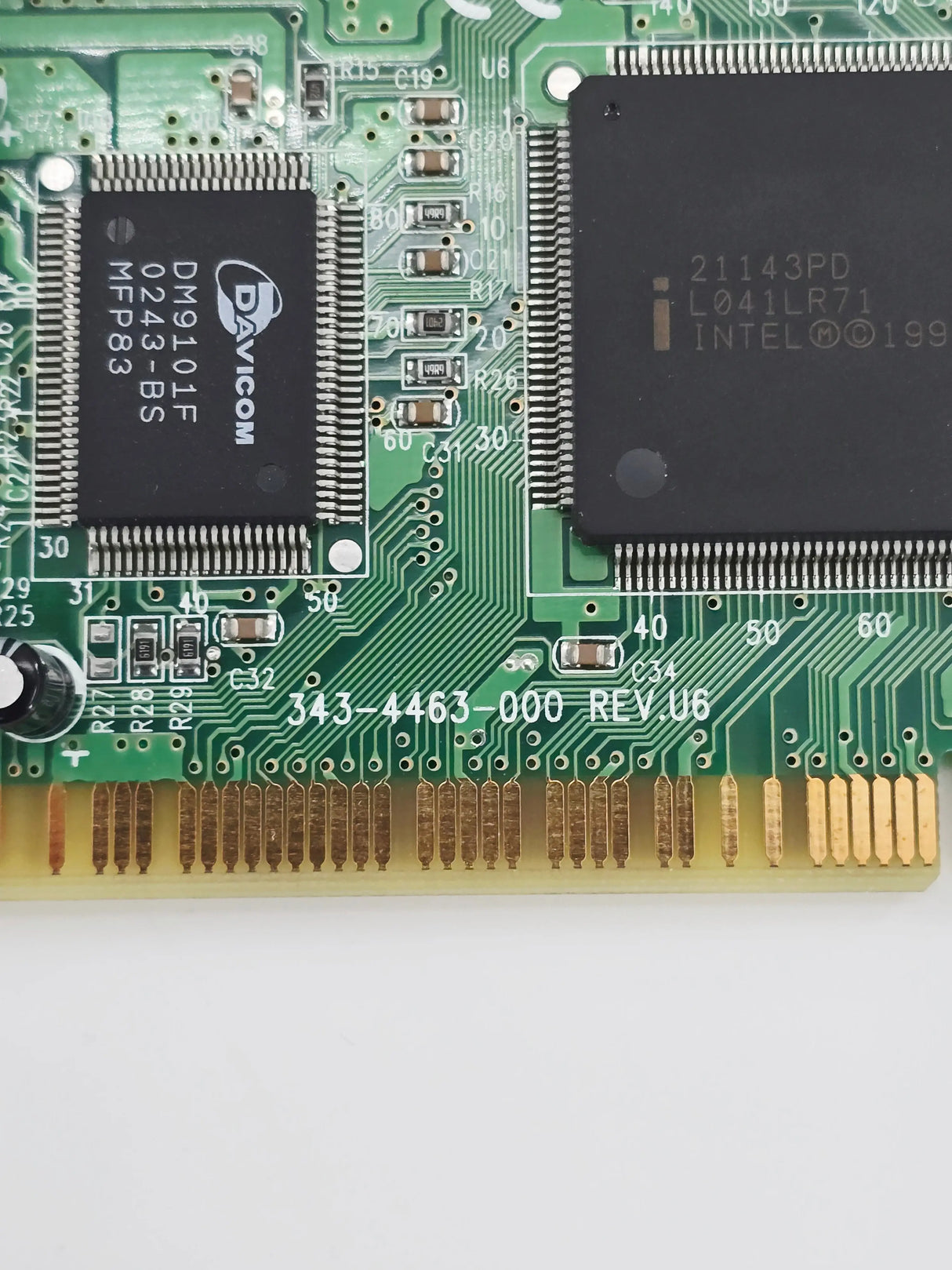

• Factory Revision Level: Revision U6 (Enhanced signal filtering layout)

• Primary Functional Application: Hardwired Local Area Network (LAN) interface, PACS connectivity, DICOM 3.0 image formatting, and transfer protocol management

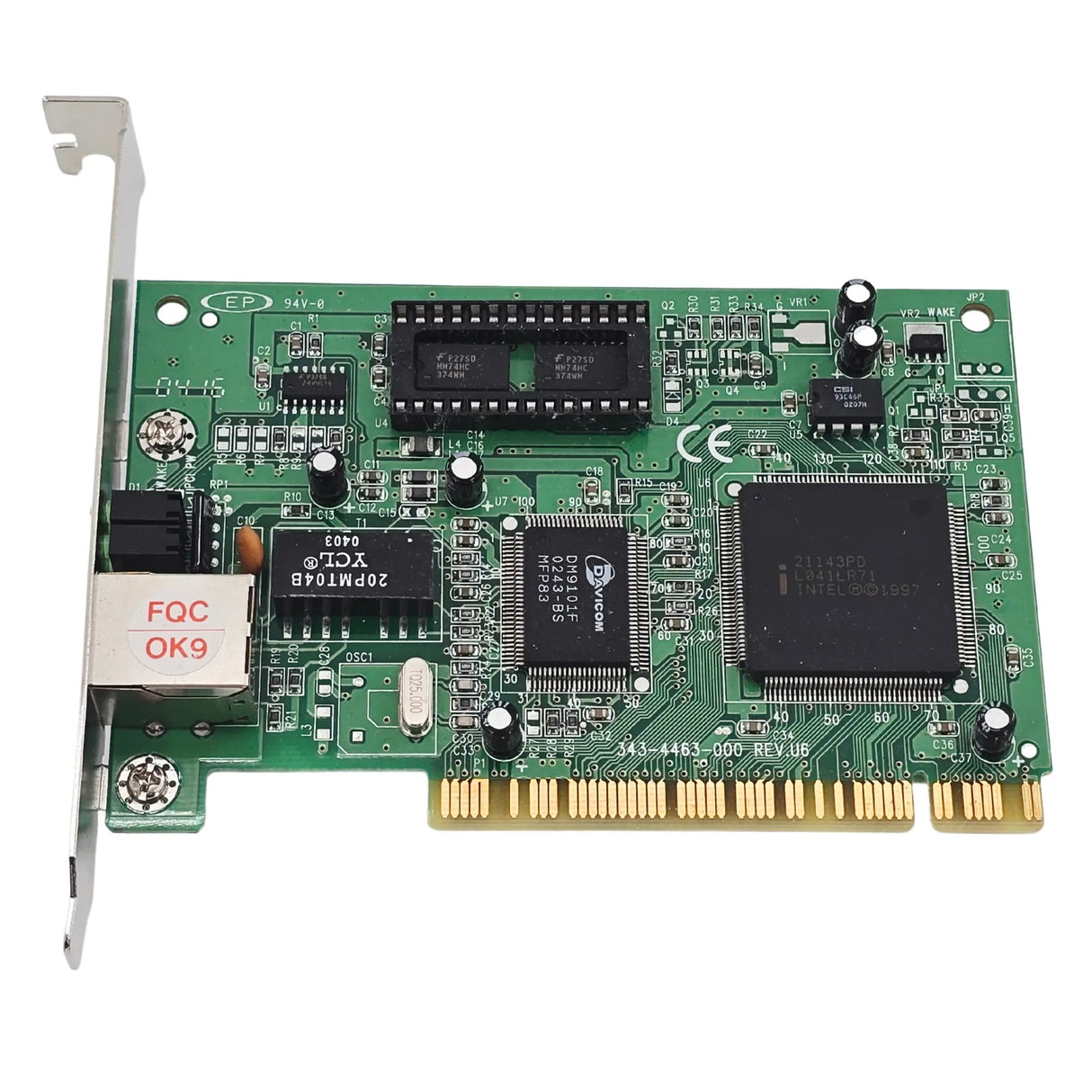

• Network Interconnect Port: Integrated rear-facing RJ-45 female Ethernet port node

• Data Transmission Rates: Calibrated for robust, EMI-shielded 10/100 Mbps data pipeline transmission within medical environments

• Backplane Slot Interface: Standard multi-pin edge card interface track for direct integration into the OEC system main card cage

• On-Board Diagnostics: Surface-mount LED activity indicators for link status, packet transmission, and operational error tracing

• Physical Board Outline Dimensions: 8.50" L x 4.25" W x 0.75" D (21.6 cm x 10.8 cm x 1.9 cm structural footprint)

• Net Product Weight: 0.45 lbs (0.20 kg lightweight circuit module)
