Gyrus Acmi GY5-CFH USA Series Continuous Flow Hysteroscope 5.5mm 3Fr Channel

Gyrus ACMI | Continuous Flow Hysteroscope Sheath Assembly | 5.5 mm Profile | GY5-CFH

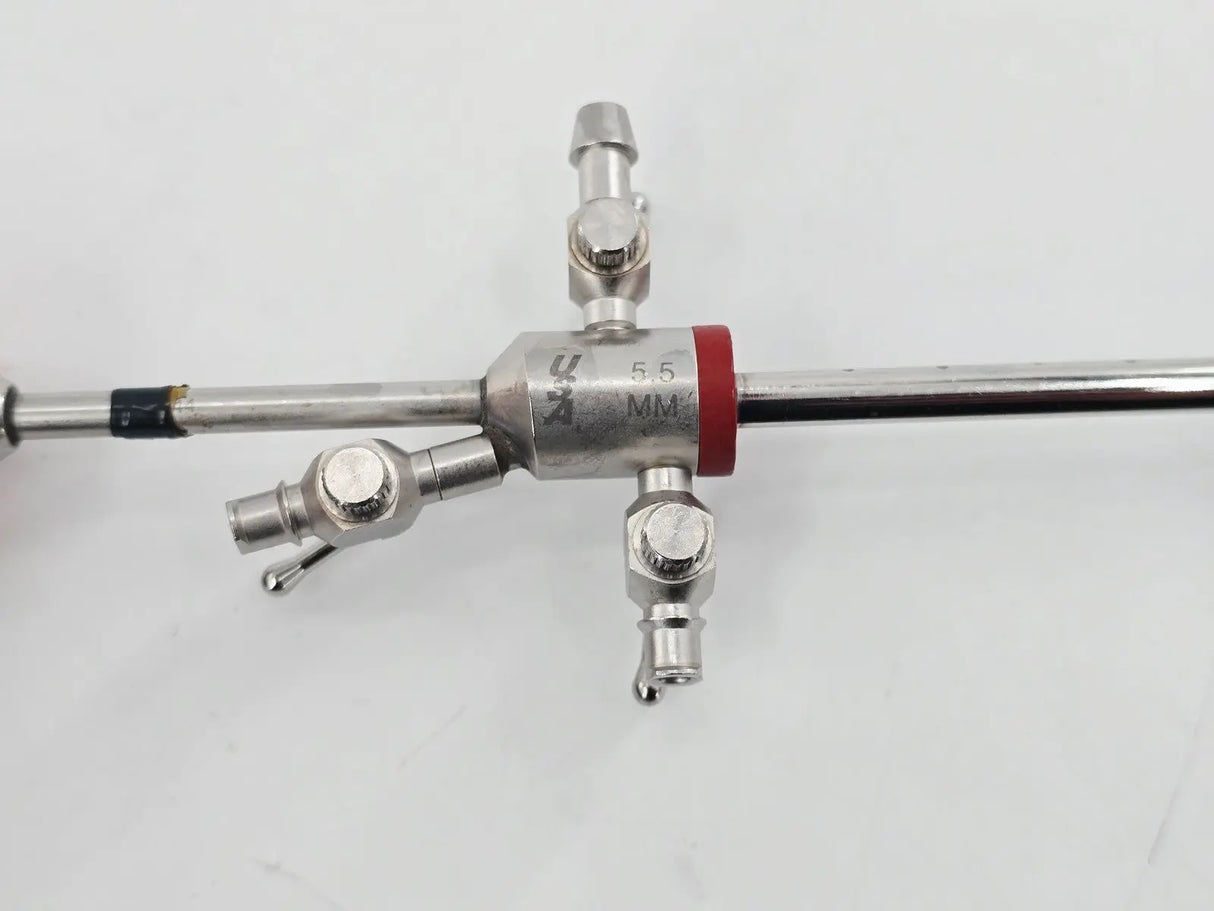

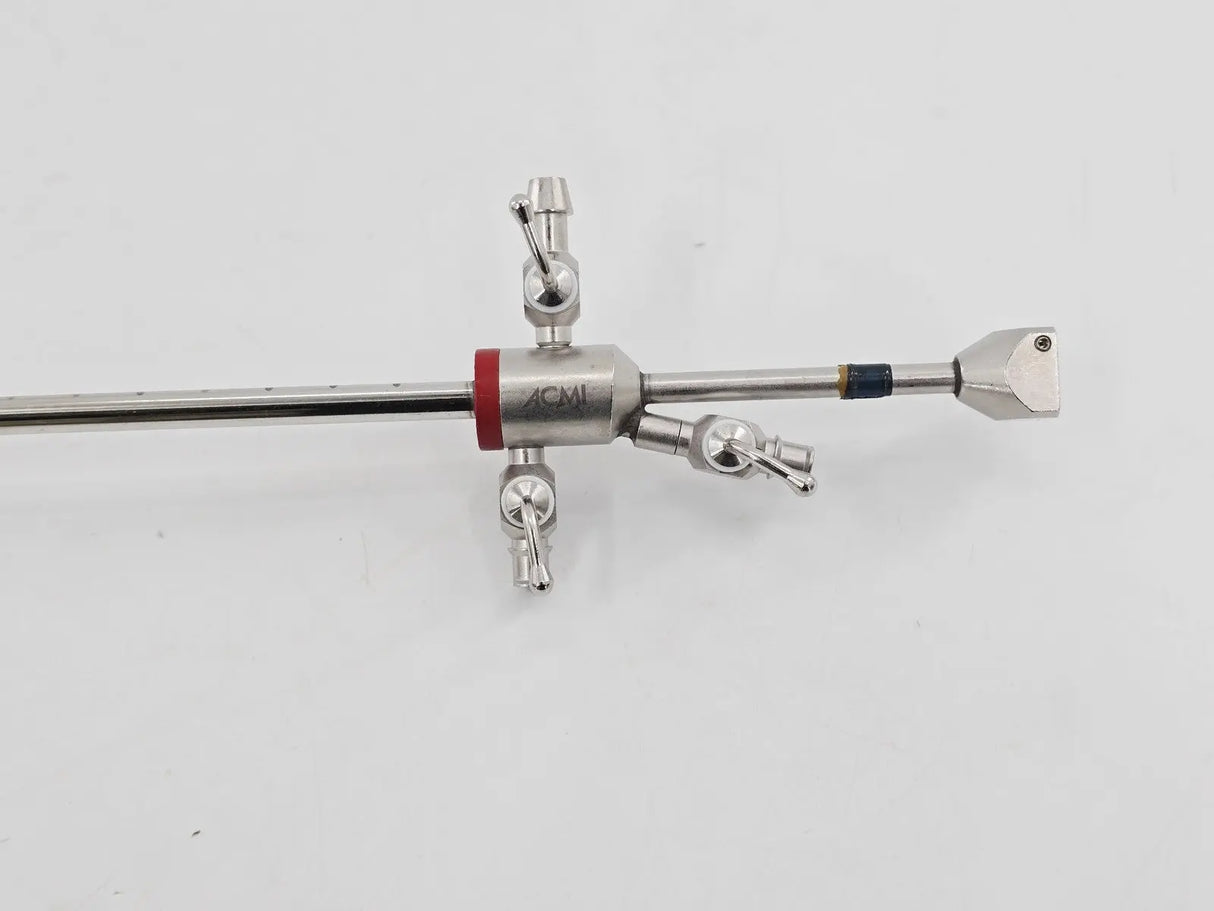

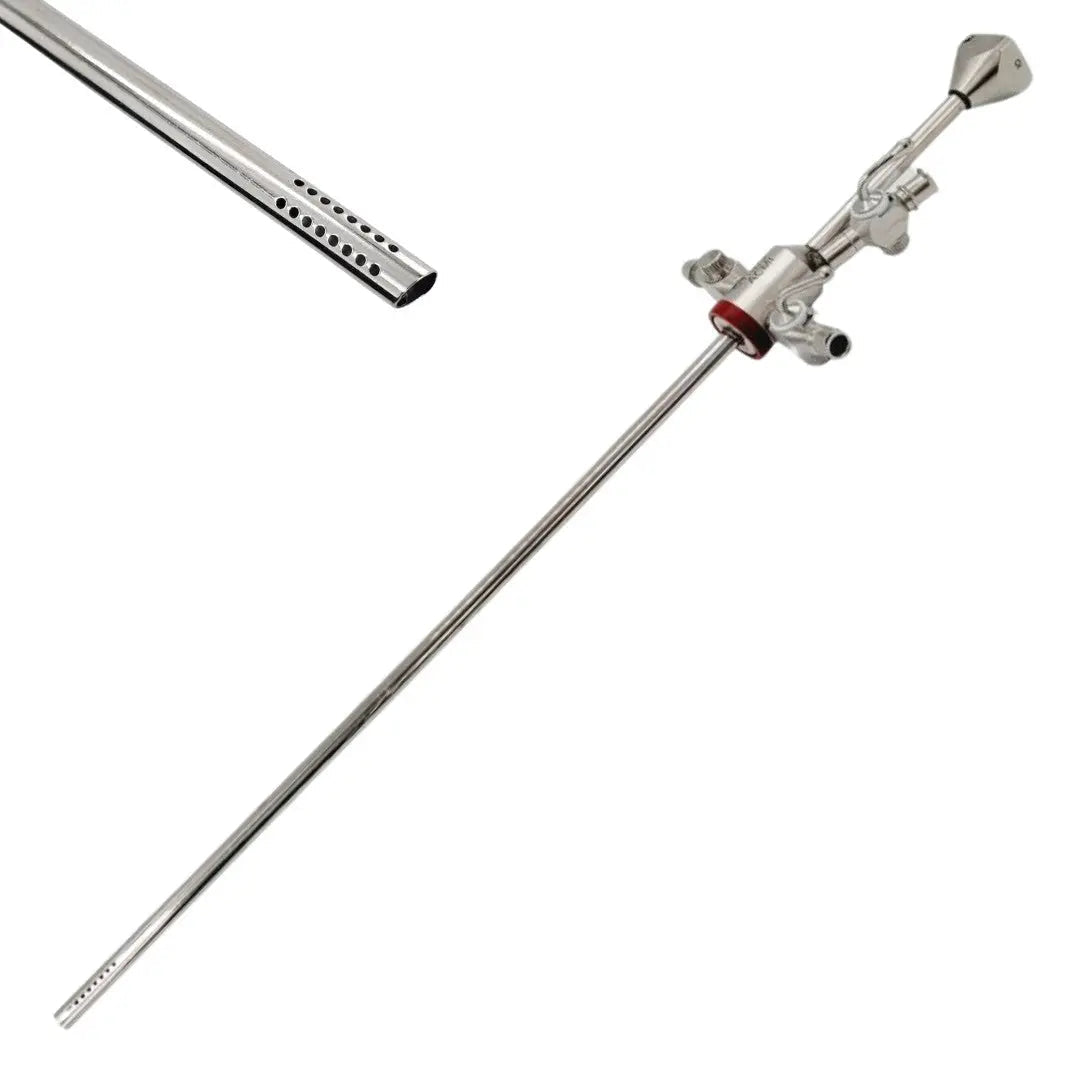

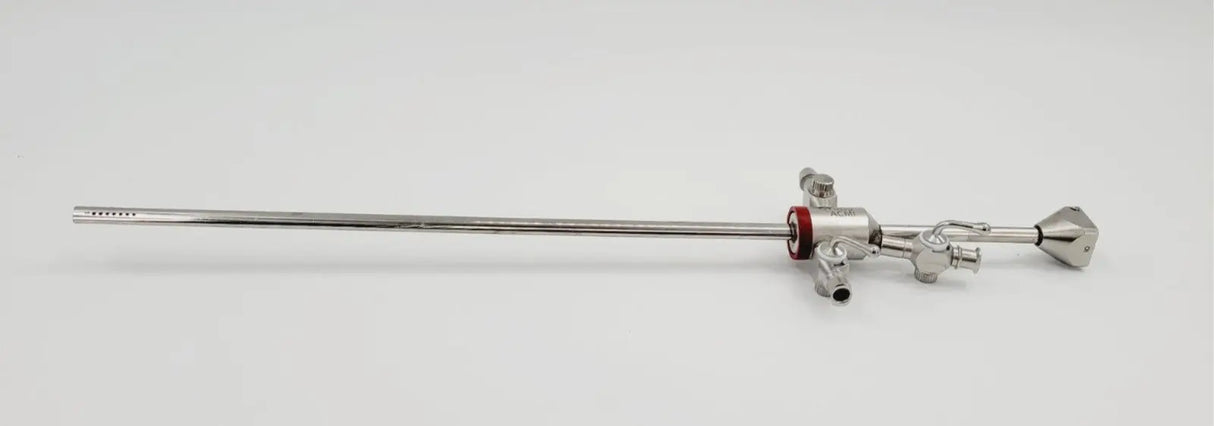

The Gyrus ACMI GY5-CFH is a high-performance, medical-grade continuous flow hysteroscope sheath assembly designed for diagnostic and therapeutic interventions within the uterine cavity. Functioning as a critical outer framework for rigid optical endoscopes, this USA Series sheath system features a dual-lumen continuous flow channel architecture. This design allows for the simultaneous introduction of distension fluids (such as saline or glycine) and the continuous evacuation of debris, mucus, and blood from the operative field.

By maintaining a balanced hydrodynamic flow, the GY5-CFH ensures a clear, unobstructed visual path for the surgeon. It also features a dedicated 3 French (3 Fr) auxiliary operating channel, which accommodates flexible or semi-rigid micro-instruments—such as biopsy forceps, scissors, or regular electrosurgical electrodes—enabling immediate tissue harvesting or targeted pathology ablation under direct visualization.

Technical Specifications

• Manufacturer: Gyrus ACMI (Olympus Corporation division)

• Product Line: USA Series Endoscopic Instrumentation Matrix

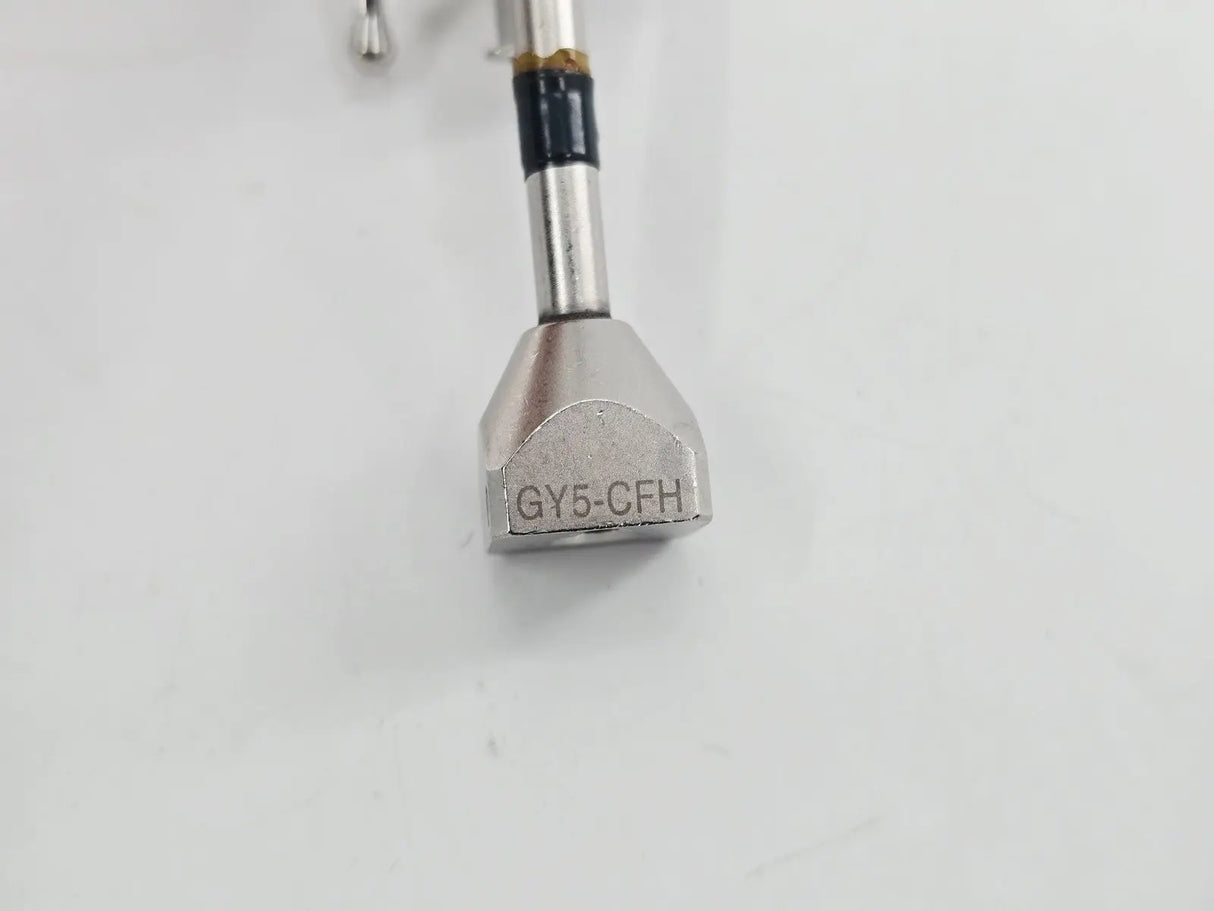

• Model Number (MPN): GY5-CFH

• Outer Diameter Profile: 5.5 mm (Designed for atraumatic cervical passage and minimal dilation overhead)

• Auxiliary Instrument Channel Capacity: 3 French (3 Fr Working Channel)

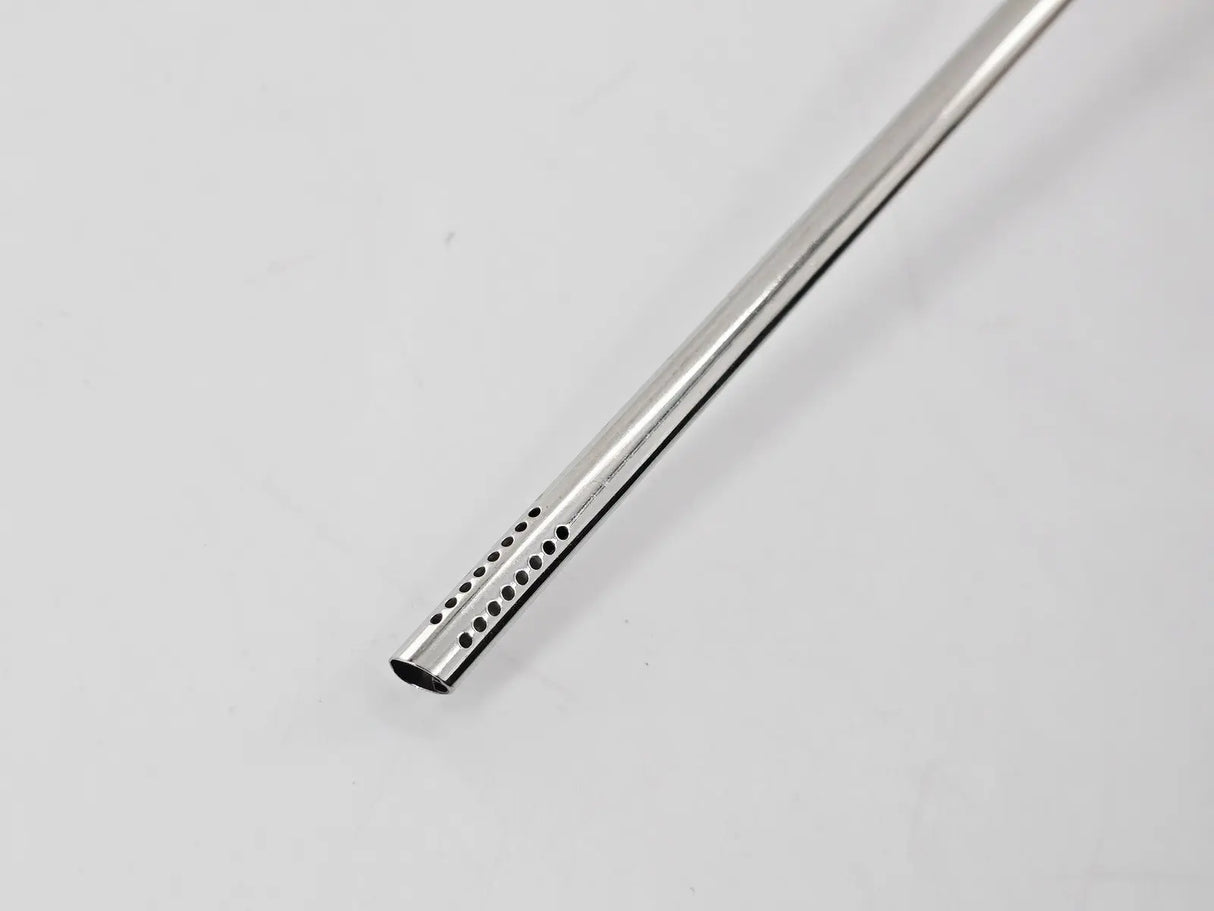

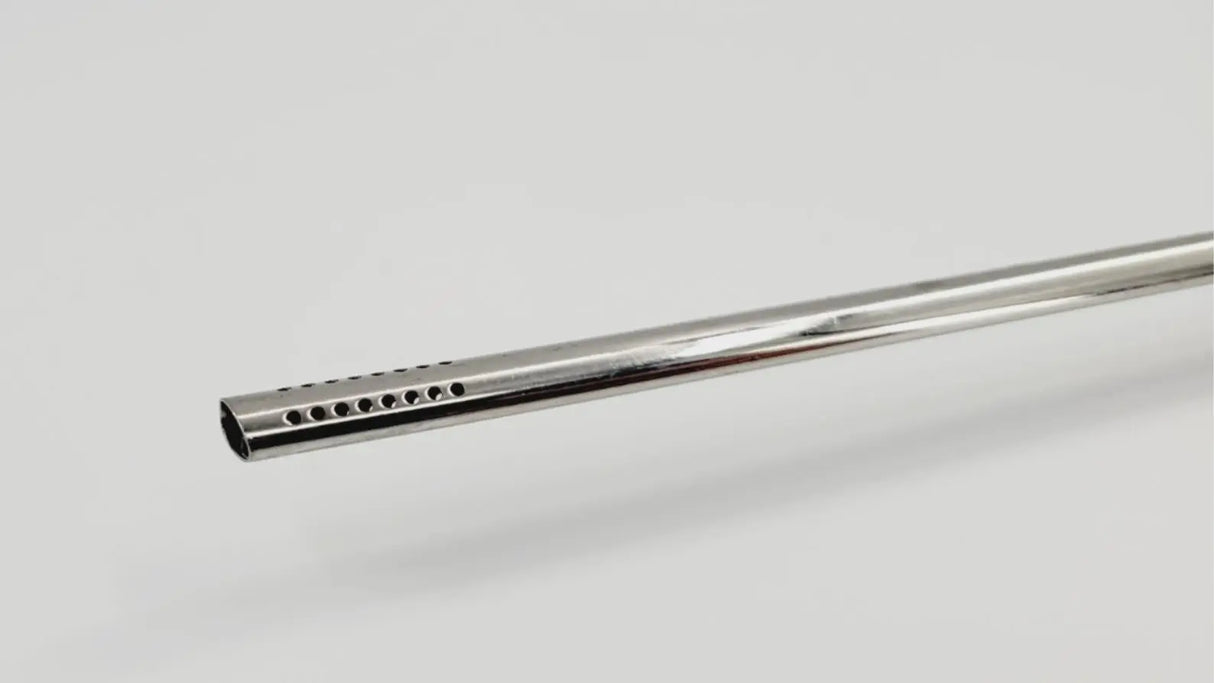

• Flow Architecture: Integrated Dual-Channel Continuous Flow (Simultaneous Inflow and Outflow pathways)

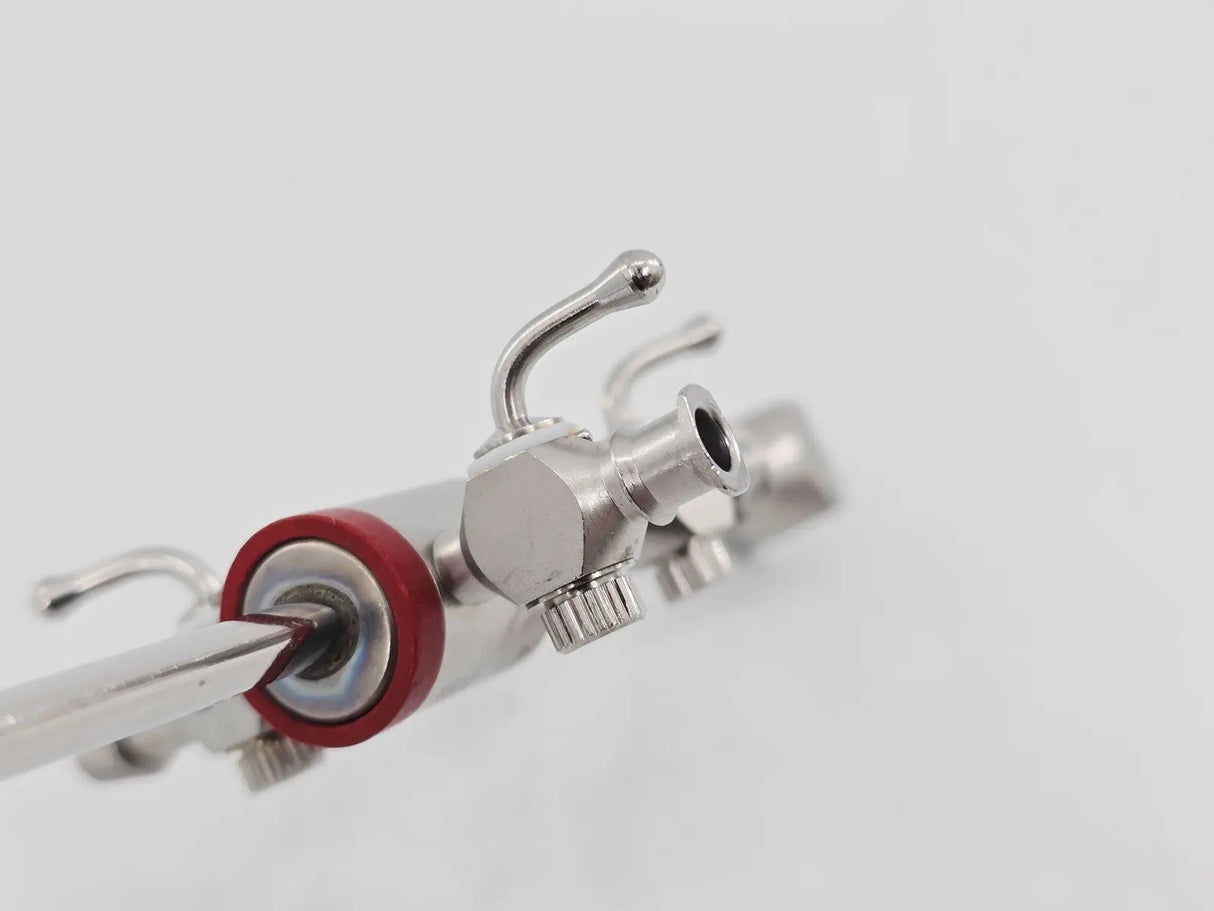

• Stopcock Valve Integration: Dual-mounted rotating petcock valves with clear, permanent direction markings

• Optical System Compatibility: Formulated to accept standard Gyrus ACMI USA Series direct-coupling rigid laparoscopes and hysteroscopes (typically 2.9 mm to 4.0 mm optical rods)

• Material Composition: Surgical-Grade Stainless Steel with highly polished passivated surfaces
