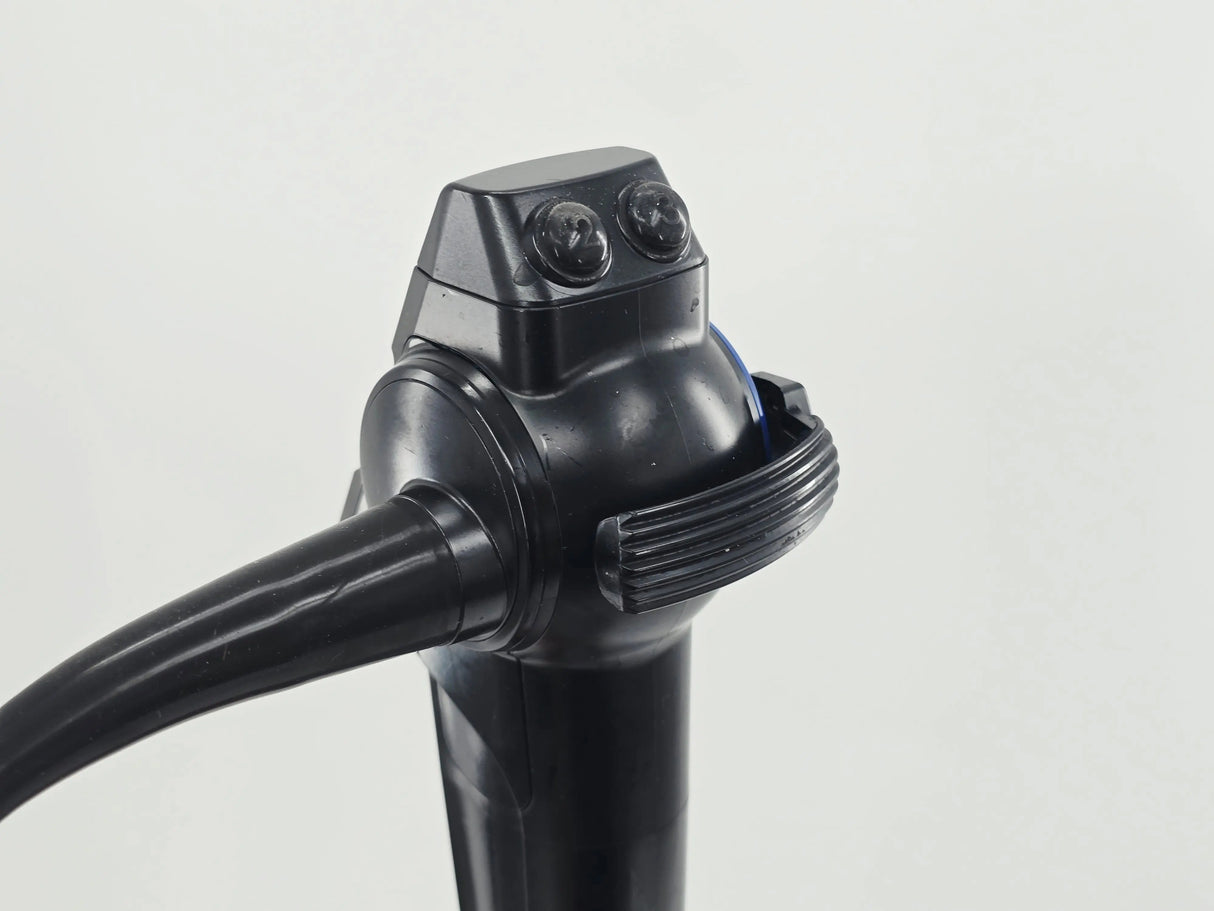

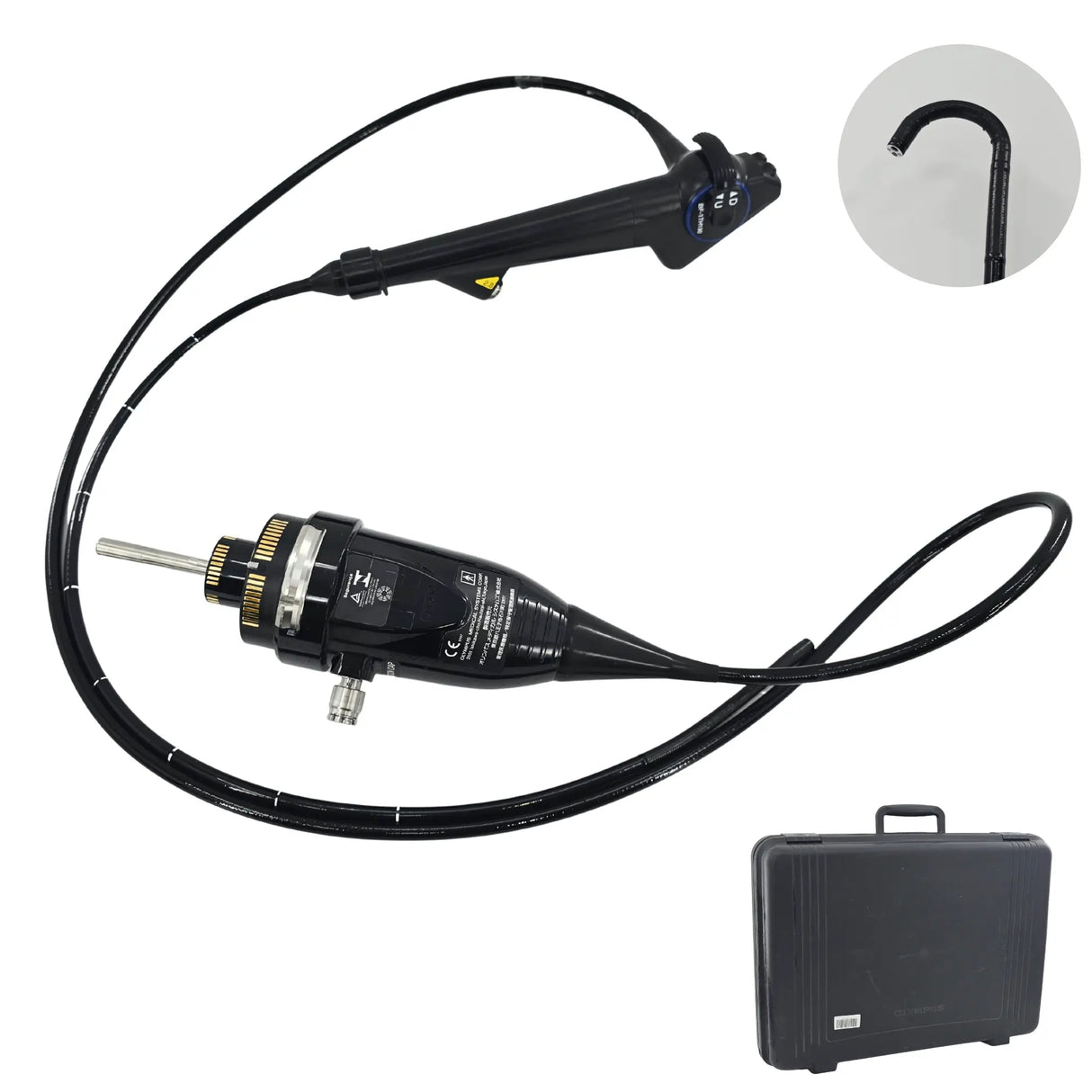

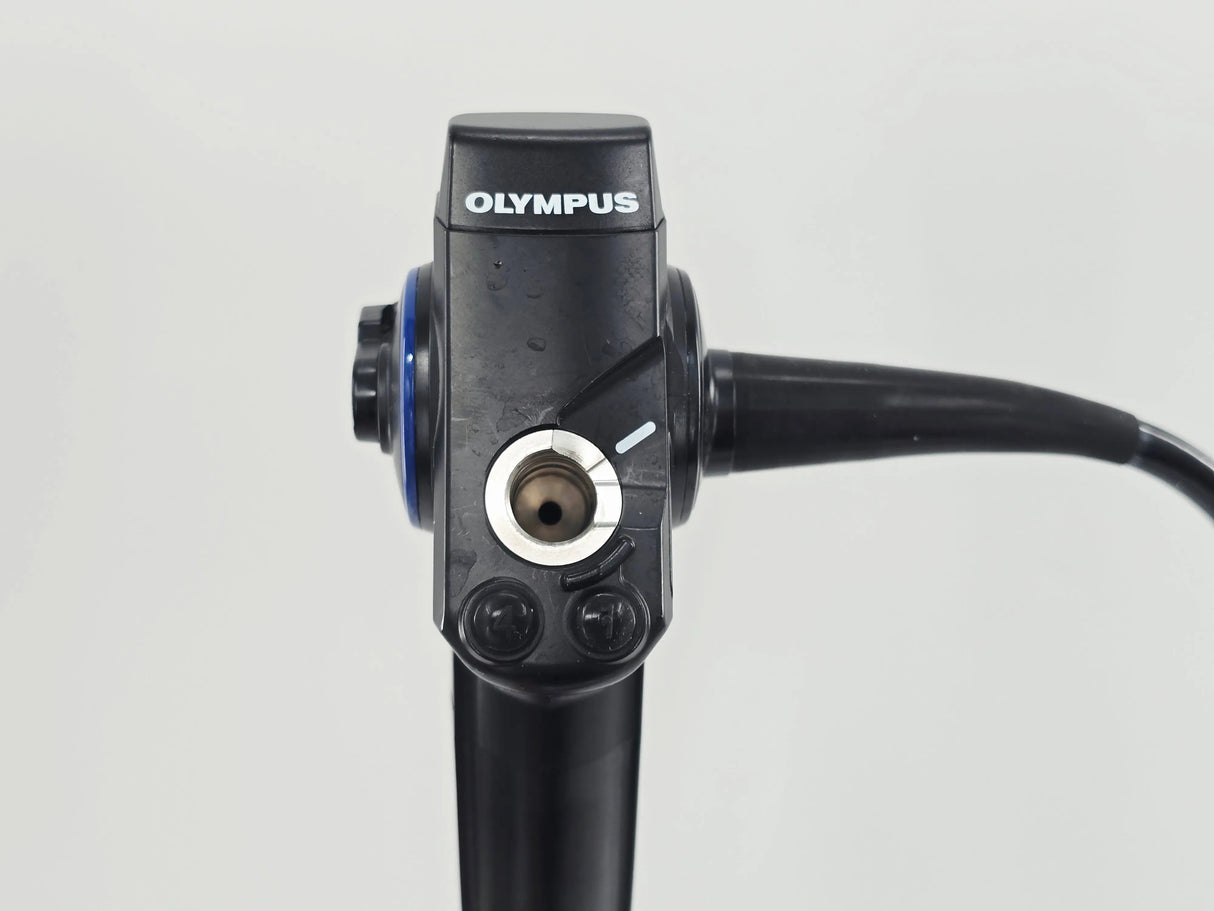

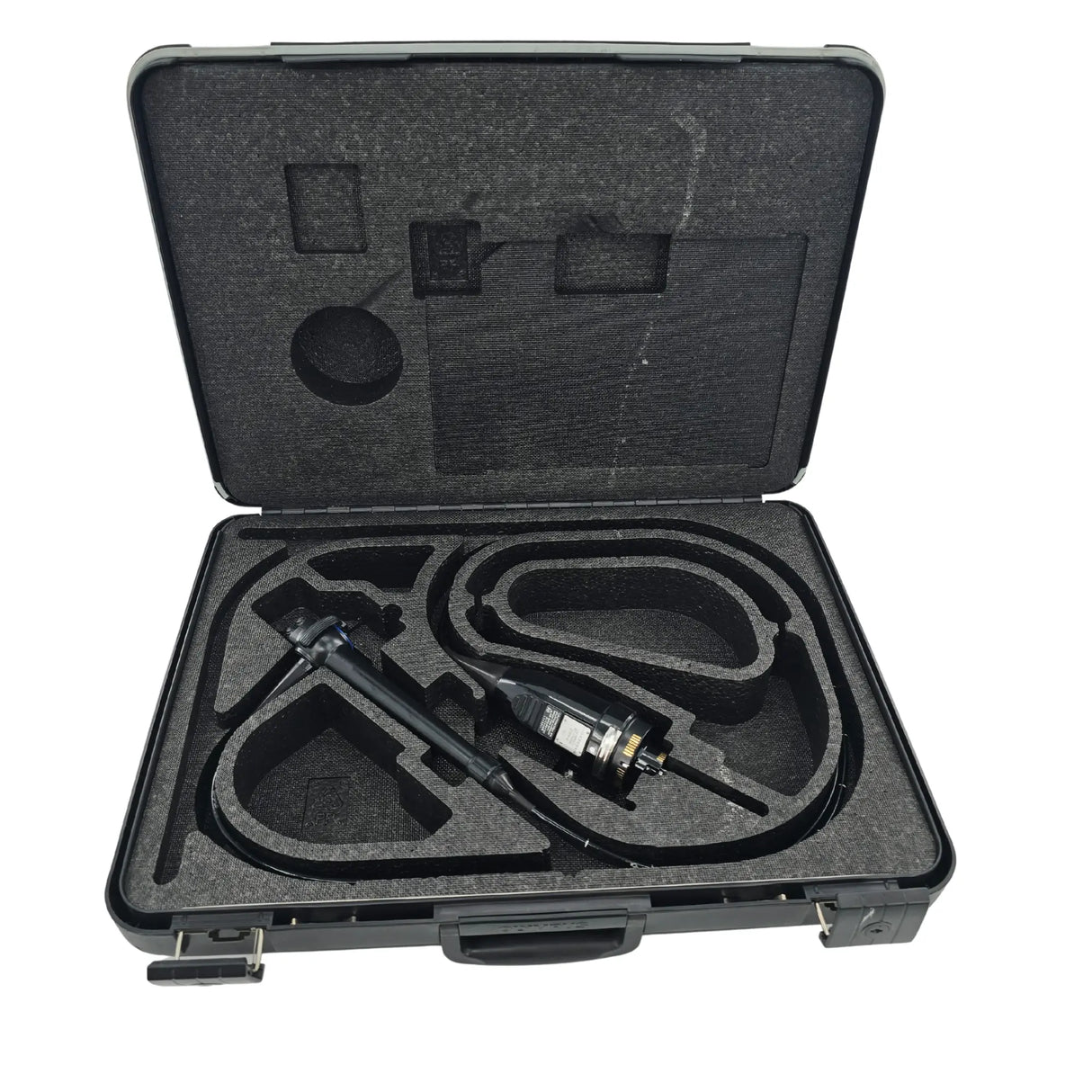

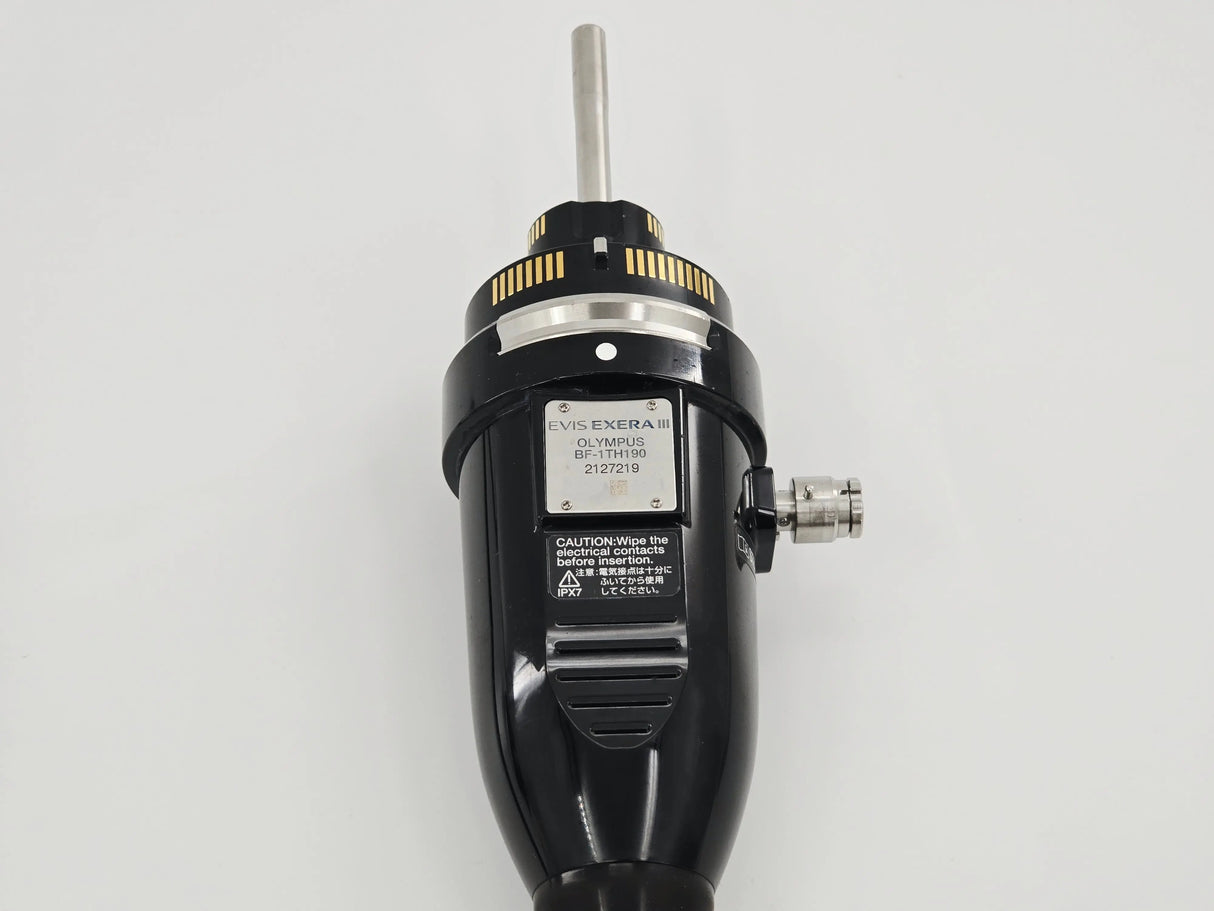

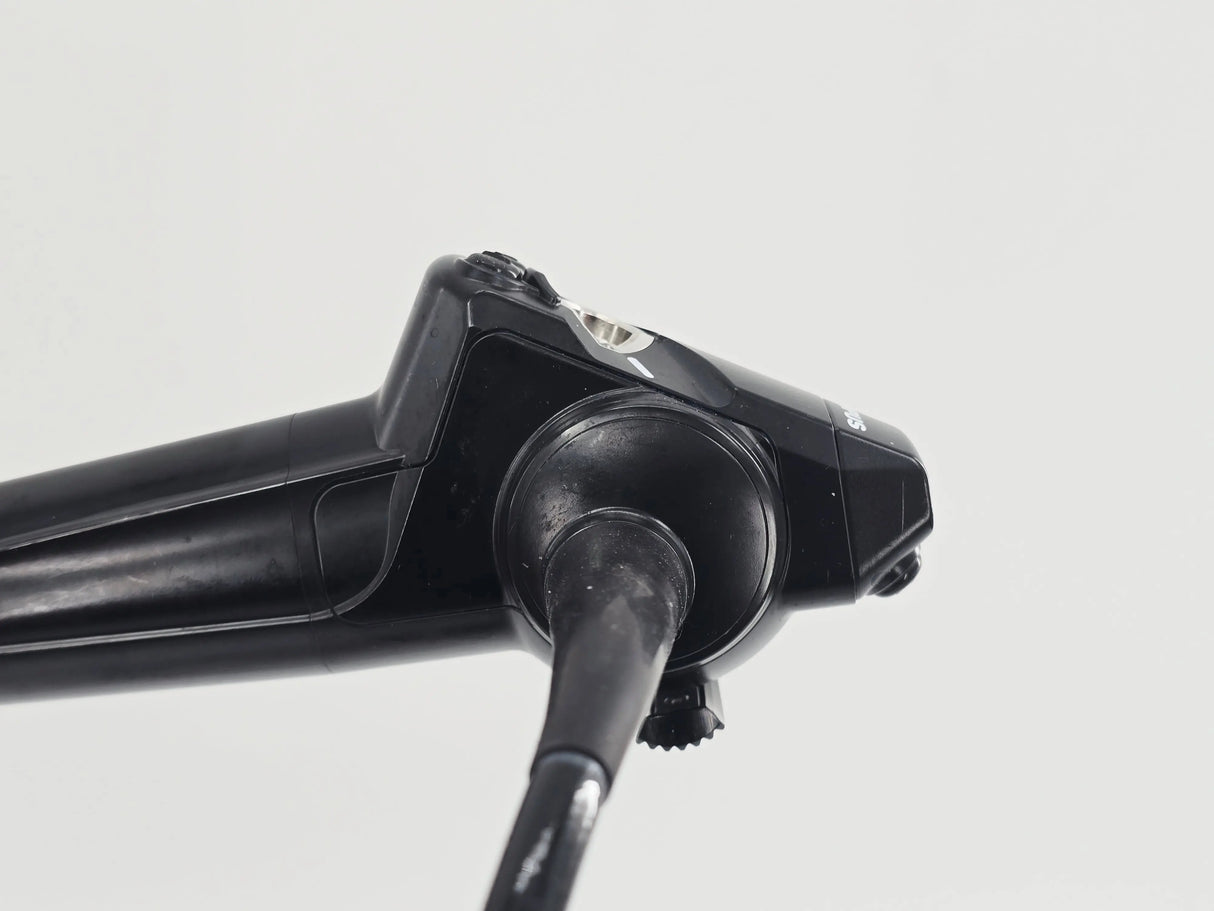

Olympus EVIS EXERA III HD Video Bronchoscope BF-1TH190 Used Medical Device

Olympus | EVIS EXERA III HD Video Bronchoscope | Used

The Olympus BF-1TH190 is a high-performance, therapeutic video bronchoscope engineered to deliver exceptional high-definition (HD) visualization within the complex anatomy of the tracheobronchial tree. Operating as a flagship endoscopic instrument within the EVIS EXERA III platform matrix, this advanced scope features a wide 3.0 mm internal working channel housed inside a slim 6.2 mm outer insertion tube diameter. This design provides an optimal mechanical balance, allowing for the effortless introduction of heavy therapeutic tools--such as biopsy forceps, laser fibers, electrocautery probes, and cryo-ablation catheters--while simultaneously maintaining strong suction capability and crisp fluid management control.

The system incorporates a highly responsive, miniature CCD chip embedded in the distal tip to generate true HDTV-quality images, significantly reducing visual noise and artifacts. Paired with Olympus's proprietary Narrow Band Imaging (NBI) technology, the BF-1TH190 enhances the optical contrast of surface mucosal capillaries and sub-surface vascular networks without tissue staining. This capability allows interventional pulmonologists to locate, boundary, and target early-stage micro-malignancies, suspicious lesions, and precise biopsy sites with high clinical accuracy.

Technical Specifications

• Manufacturer: Olympus Medical Systems

• Product Line: EVIS EXERA III Endoscopic Visualization Series

• Optical System Field of View: 110 degrees directional view path

• Direction of View: Forward-Facing (0-degree linear trajectory)

• Depth of Field Focusing Range: 3.0 to 100 mm flat focus boundary

• Distal End Outer Diameter: 6.0 mm

• Insertion Tube Outer Diameter: 6.2 mm

• Internal Working Channel Inside Diameter: 3.0 mm

• Active Working Tool Length: 600 mm (60 cm)

• Total Instrument System Length: 870 mm

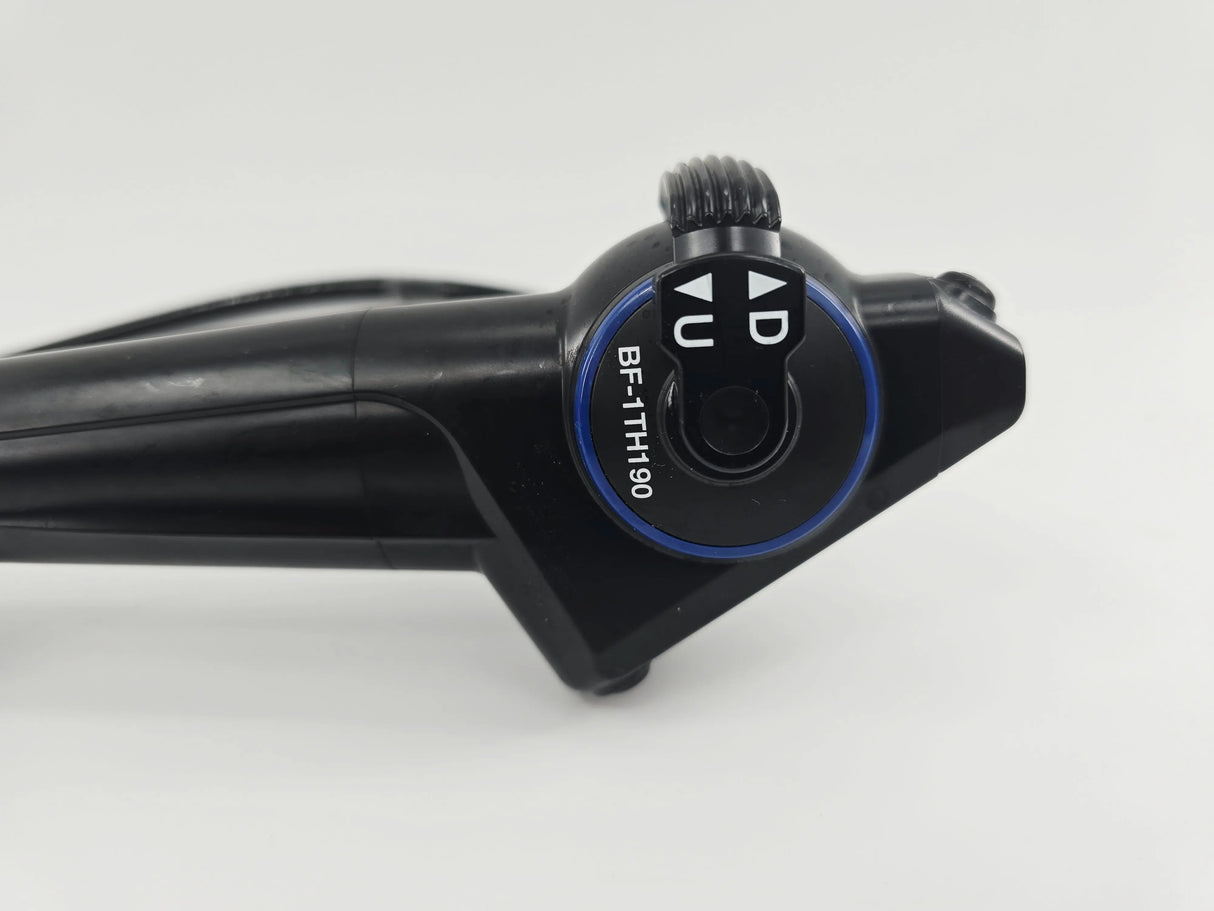

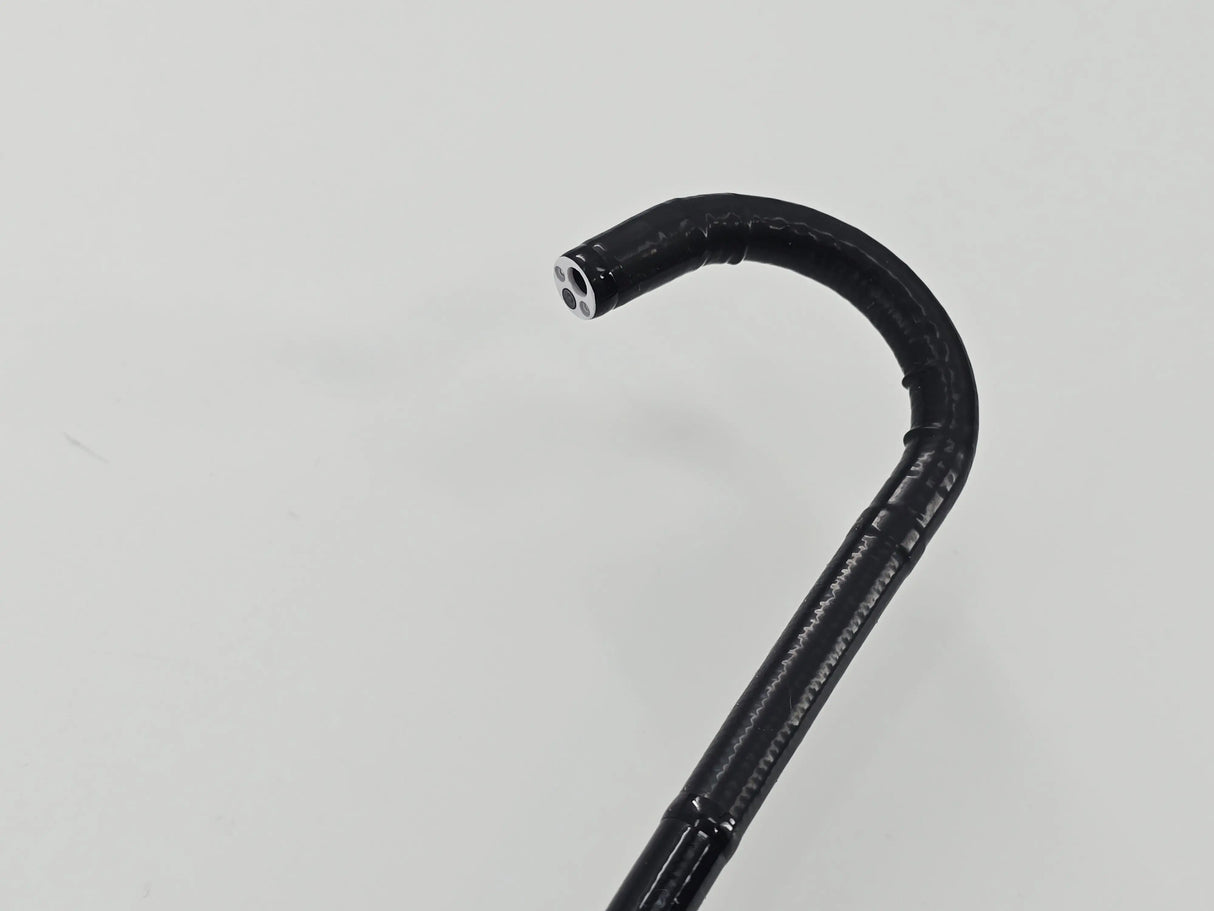

• Distal Tip Angulation Range: 180 degrees Upward / 130 degrees Downward

• Advanced Optical Filtering: Integrated Narrow Band Imaging (NBI) compatibility

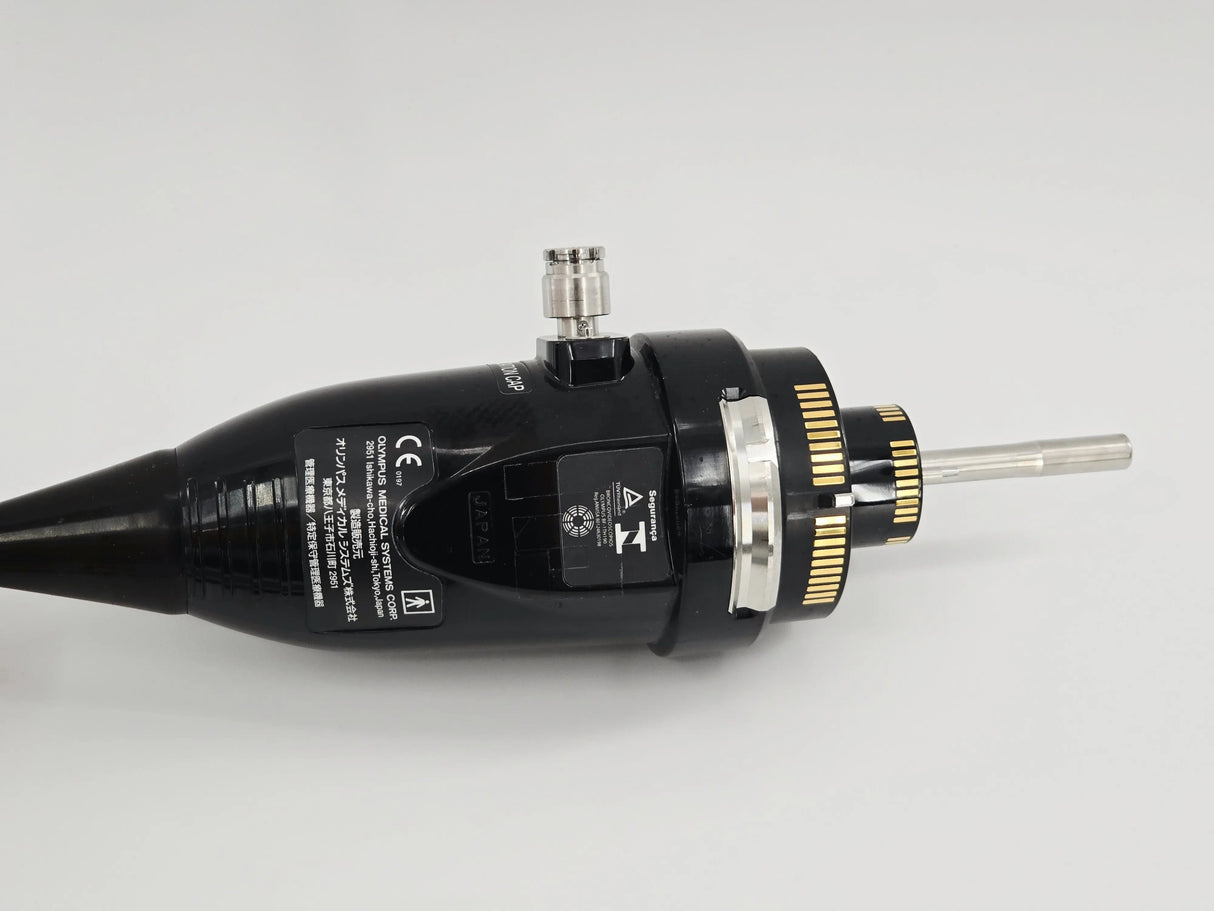

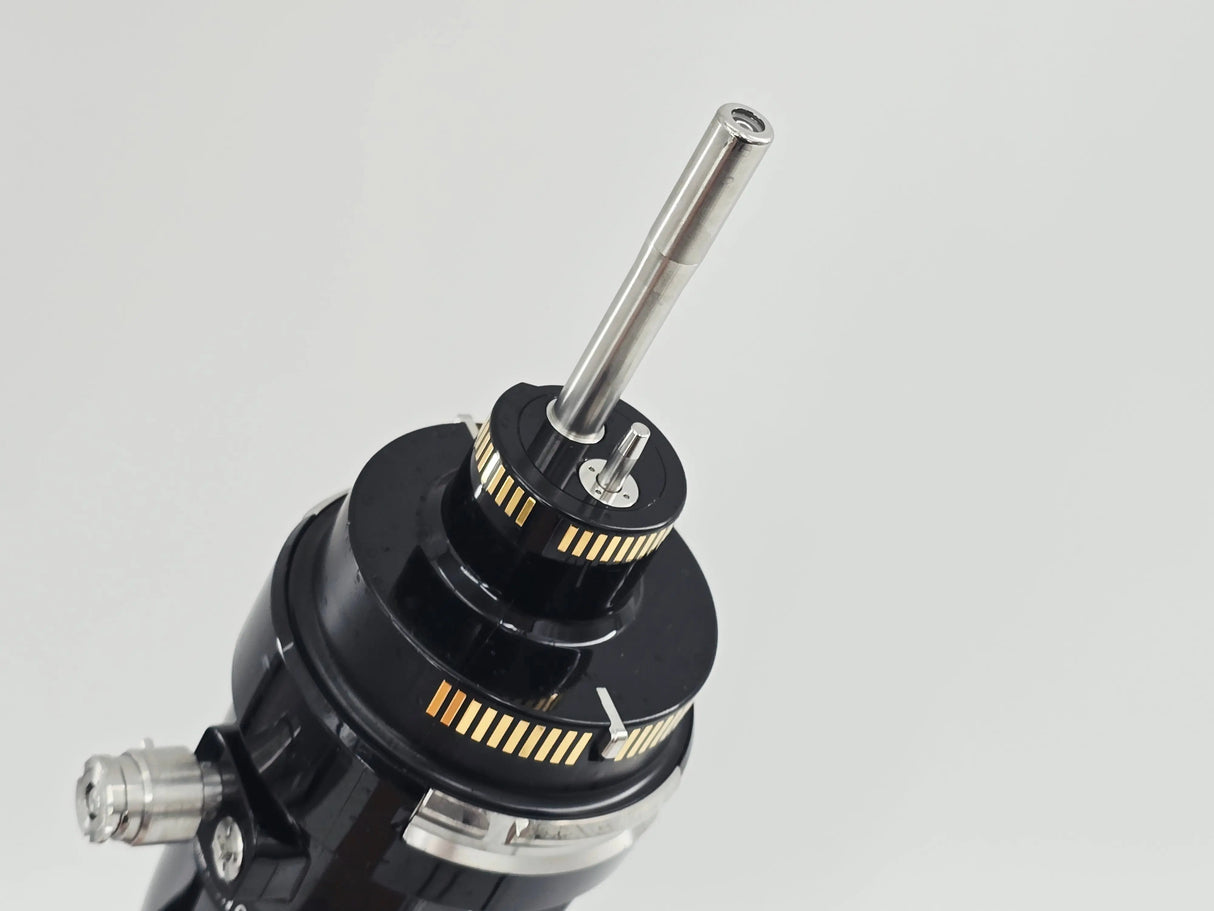

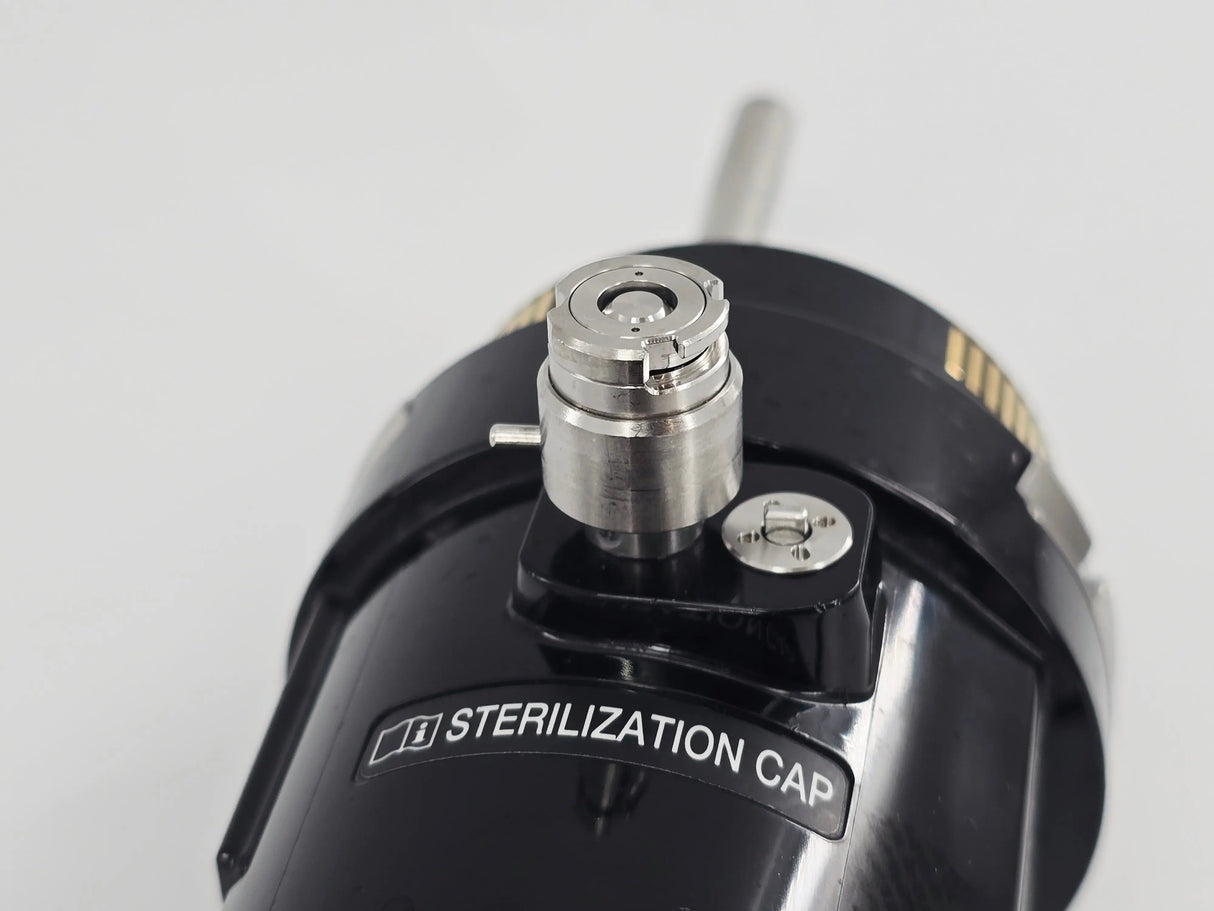

• Water Resistance Infrastructure: Fully submersible waterproof engineering (Utilizes a single-touch connector design that eliminates the need for water-resistant caps during reprocessing)
