Philips IE33 G.1 Cart Ultrasound System 453561228521A Circuit Board Used Parts

Philips iE33 G.1 Cart Ultrasound System Main System Interface PCB | Part Number 453561228521A | High-Density Core Processor Interface Circuit Board Assembly | Communication Architecture Translation Module | Pre-Owned Advanced Diagnostic Imaging Capital Equipment Component | Single Unit (1/EA)

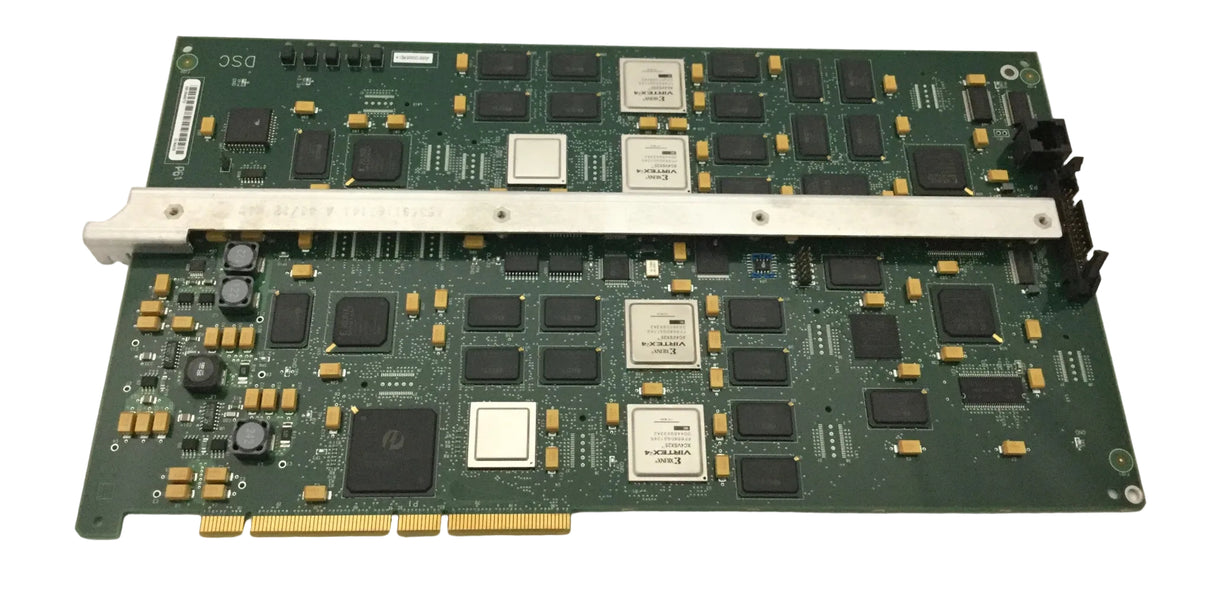

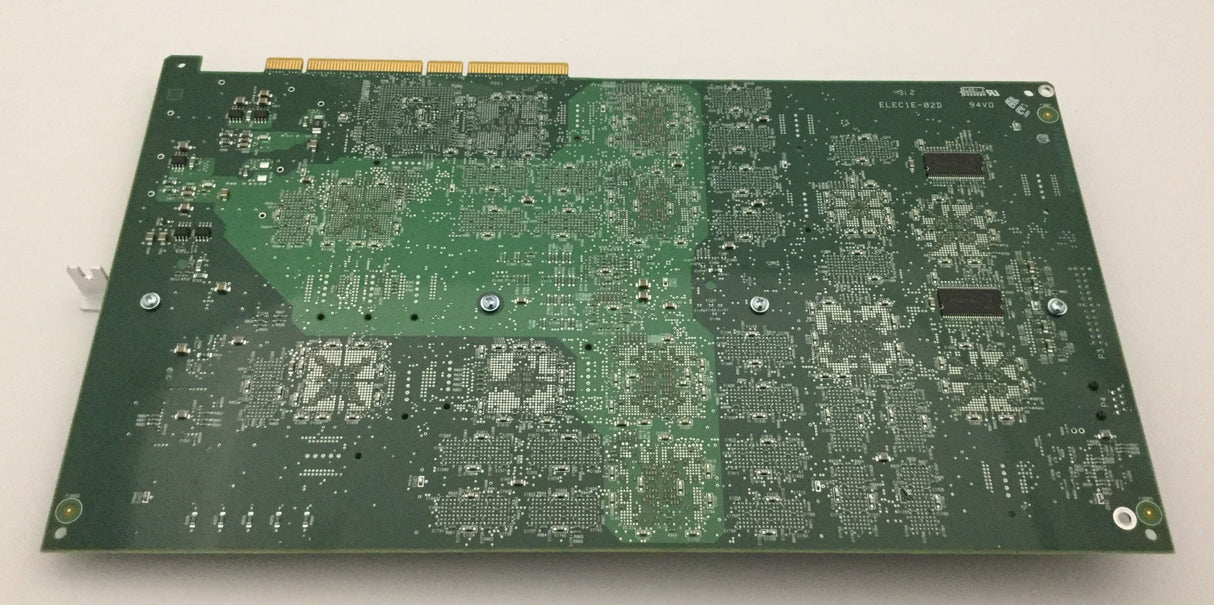

The Philips 453561228521A is a professional-grade, hospital-level electronic component expertly engineered to serve as a primary system interface and data routing printed circuit board (PCB) within the Philips iE33 G.1 cart ultrasound system architecture. Developed under Philips Medical Systems diagnostic imaging engineering standards, this high-density circuit board is responsible for synchronizing complex ultrasound beamformer signals, power distribution rails, and high-velocity imaging data streams passing between the core processing engine and the user interface console. The board layout features surface-mount solid-state capacitors, integrated logic microchips, and gold-plated edge connectors designed to manage low-latency communication with minimal thermal noise or signal degradation. Optimized to support multi-dimensional echocardiography rendering and real-time color Doppler workflows, this brand-new or clean pre-owned circuit board provides clinical engineering teams with a factory-calibrated, exact-match capital replacement part to resolve critical system boot errors, front-panel link failures, or diagnostic probe communication faults.

Technical Specifications

• Manufacturer: Philips Medical Systems (Andover, MA / Bothell, WA)

• Product Brand Family: iE33 Intelligent Echocardiography Platform (Generation G.1 Cart Series)

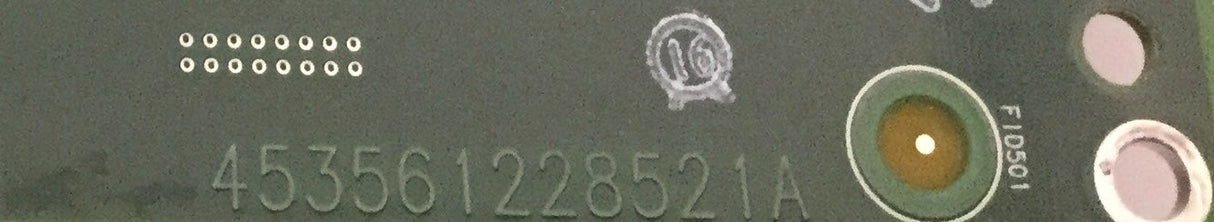

• Product Catalog Part Number (MPN): 453561228521A (Cross-referenced in biomedical databases as 4535-612-28521A)

• Hardware Generation Revision Alignment: Cart Generation 1 (G.1 Platform Matrix)

• Circuit Board Class: System Control Interface / High-Velocity Data Translation PCB

• Signal Distribution Capacity: Manages high-bandwidth ultrasound scanhead data, control panel button tracking, and peripheral display sync lines

• Metallurgy Connecting Points: High-purity gold-plated multi-pin edge connection fingers and high-speed bus sockets

• Circuit Componentry Architecture: Advanced surface-mount technology (SMT) with integrated multi-layered logic gates and solid-state capacitors

• Cooling Profile Compliance: Built for passive conduction heat shedding when aligned with internal chassis cooling fans

• Power Distribution Tracking: Direct link to host system DC-DC power supply output rails
