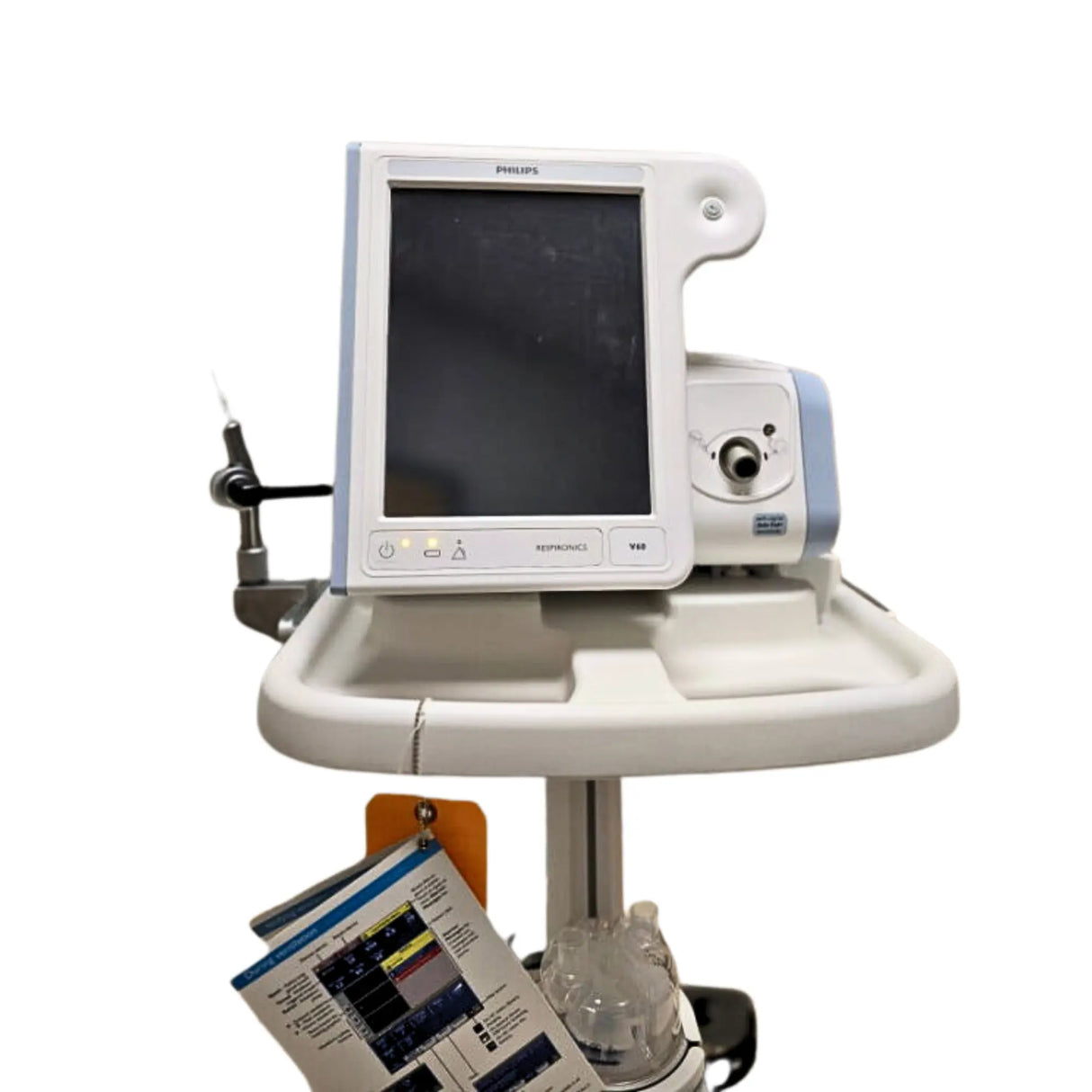

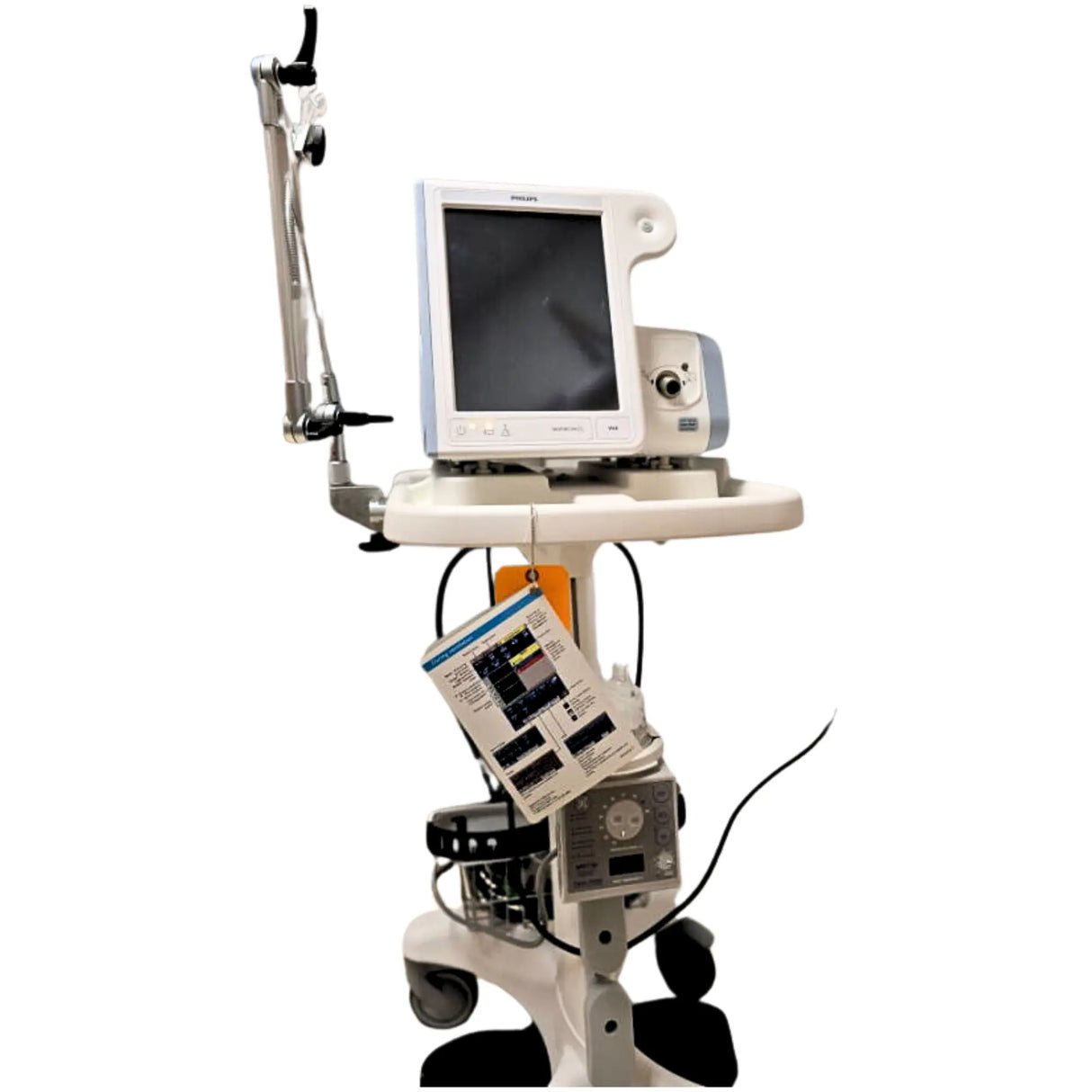

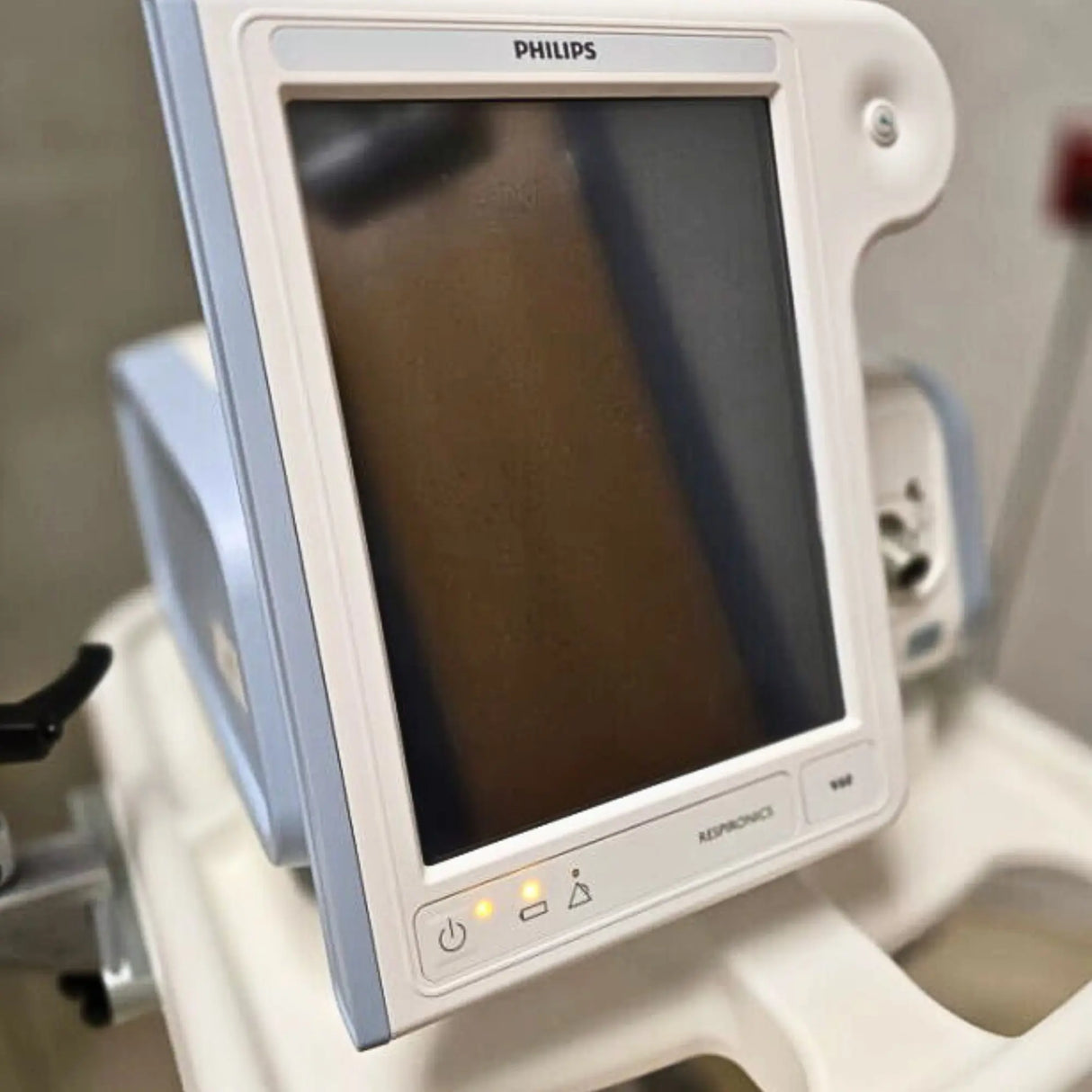

Philips Respironics V60 Bi-Level Positive Airway Pressure Ventilator

Philips Respironics V60 Bi-Level Positive Airway Pressure Ventilator | High-Performance Non-Invasive Ventilation (NIV) System | Dedicated Hospital Critical Care Blower Console | Includes Auto-Trak Digital Leak-Compensation Technology

The Philips Respironics V60 is a clinical-grade, high-performance ventilator engineered primarily for non-invasive ventilation (NIV) support in pediatric and adult hospital environments. Utilizing advanced Auto-Trak digital technology, this system adaptively auto-compensates for real-time patient mask leaks to maintain synchronization between the machine and the patient's spontaneous breathing pattern. It integrates a responsive internal blower that provides variable flow rates and customizable therapeutic modes—such as S/T, CPAP, PCV, and hybrid AVAPS (Average Volume Assured Pressure Support)—delivering dependable acute respiratory support across emergency departments, intensive care units, and sub-acute wards.

Technical Specifications

• Equipment Typology: High-Flow Non-Invasive Positive Airway Pressure (NIV) Ventilator

• Target Patient Profile: Adult and pediatric patients weighing 44 lbs (20 kg) or greater

• Leak Compensation Technology: Auto-Adaptive Auto-Trak algorithm (real-time waveform sensing and threshold adjustments)

• Core Ventilation Modes: CPAP (with C-Flex flow relief), S/T (Spontaneous/Timed backup), PCV (Pressure Control), and AVAPS (Average Volume Assured Pressure Support)

• IPAP Pressure Range: 4 to 40 cm H2O delivery ceiling

• EPAP / CPAP Pressure Range: 4 to 25 cm H2O operational floor

• AVAPS Target Tidal Volume Range: 200 mL to 2000 mL setting adjustments

• Backup Respiratory Rate Range: 4 to 60 breaths per minute (BPM)

• Inspiratory Time (I-Time) Limits: 0.30 to 3.00 seconds duration settings

• Oxygen Concentration Delivery: 21% to 100% (integrated blender assembly)

• Integrated Emergency Backup Battery: 14.4V Rechargeable Smart Battery providing up to 6 hours of transport runtime under standard conditions

• Main Electrical Input: 100-240 Volts AC, 50/60 Hz, 300 VA automated power input loop

• High-Pressure Oxygen Supply Input: 40 to 87 psig (276 to 600 kPa) utility connection line

• Monitored Display Parameters: High-resolution touchscreen graphs tracking Peak Inspiratory Pressure (PIP), Patient/Total Leak rate, Respiratory Rate, and Estimated Tidal Volume

• Chassis Physical Dimensions (Unit Only): 13.3" H x 15.5" W x 16.5" D (33.7 cm x 39.4 cm x 42.9 cm)

• Net System Hardware Weight: 25.7 lbs
